27

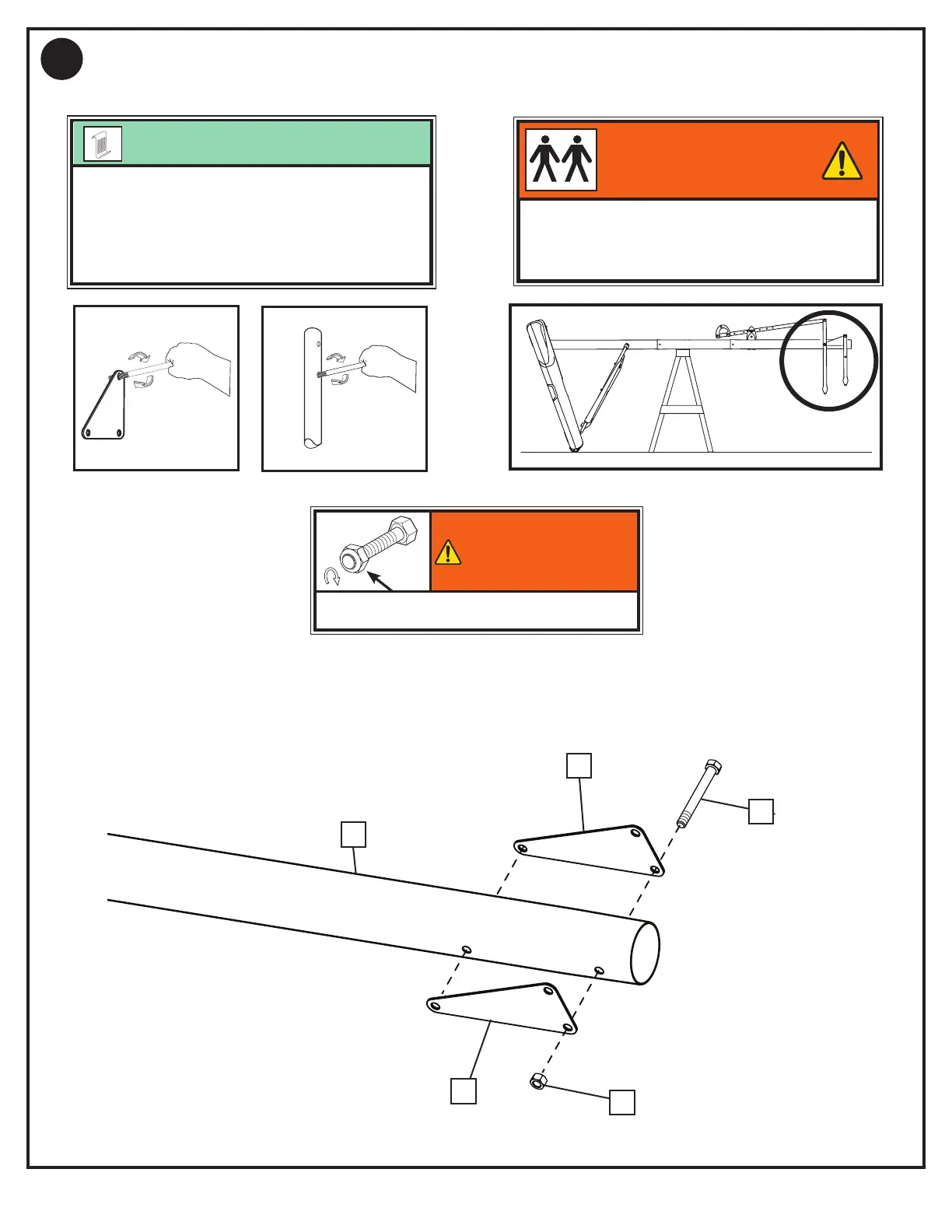

Securely rest the assembly on a sawhorse or support table. Install triangle plates (37) to top
pole section (4) using bolt (40) and nut (31) as shown.
15.
37
4
37
40
31
NOTE
TEST-FIT LARGE BOLTS INTO LARGE HOLES OF
ELEVATOR TUBES, BACKBOARD BRACKETS,
AND TRIANGLE PLATES.
CAREFULLY ROCK THEM IN A CIRCULAR MOTION
TO REAM OUT ANY EXCESS PAINT FROM HOLES
IF NECESSARY.
TWO PEOPLE REQUIRED FOR THIS
PROCEDURE. FAILURE TO FOLLOW THIS
WARNING COULD RESULT IN SERIOUS INJURY
AND/OR PROPERTY DAMAGE.
WARNING!
TIGHTEN BOLT (40) IN LOCK NUT (31) UNTIL
FLUSH (EVEN) WITH LOCK NUT’S OUTER EDGE.
WARNING!
