8 9

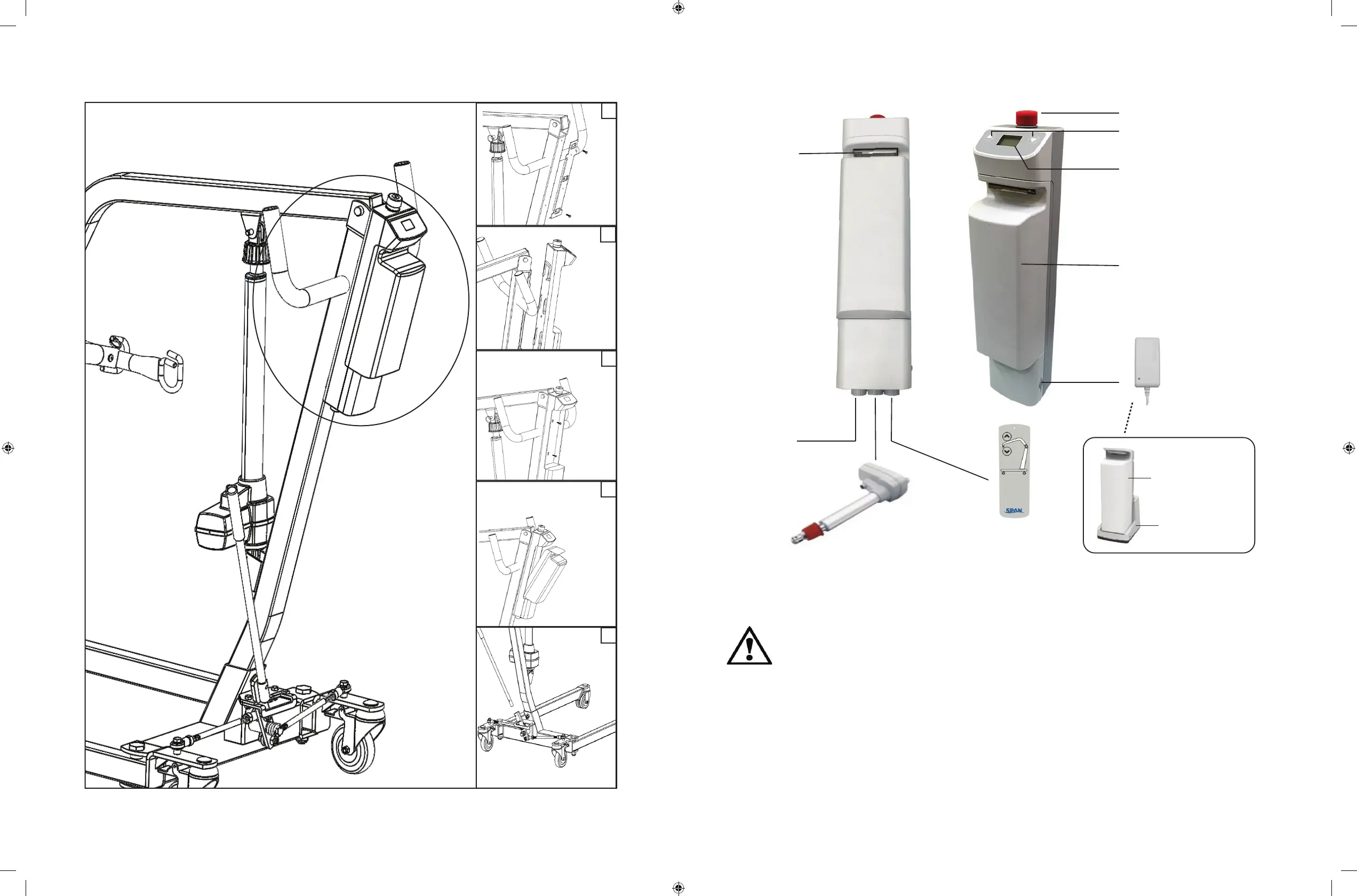

Installation 5: Power Control Unit
4
3
2
1
5
Actuator
Battery Pack
Release Handle
Emergency Stop Button
Up / Down Button
LCD Display Panel
Battery Pack
Charger
DC In
Not Used
Hand Control
Charging Cradle
(Optional)
Additional Battery Pack
(Optional)
Power Control Unit Overview
1. Connect Actuator as shown above.
2. Connect Hand Control as shown above.
WARNING!
• Contains a long charger cord that may cause strangulation if
used improperly
• Keep long charger cord out of walkway where it poses a
tripping hazard
• Have the charger port on the controller facing away from the
wall for easy disconnection
To Next Page
