Spark Smart Modem 3 - Set up your Spark modem on ADSL;VDSL; How to connect your modem on ADSL;VDSL connections

5
Things you’ll need from the box
Set up your Spark
modem on ADSL/VDSL
Modem Power supply
unit
ADSL Phone
cable/VDSL cable
Filter
(ADSL only)
2.1 How to connect your modem on an
ADSL/VDSL connection
If you have a standard
jackpoint (BT) only

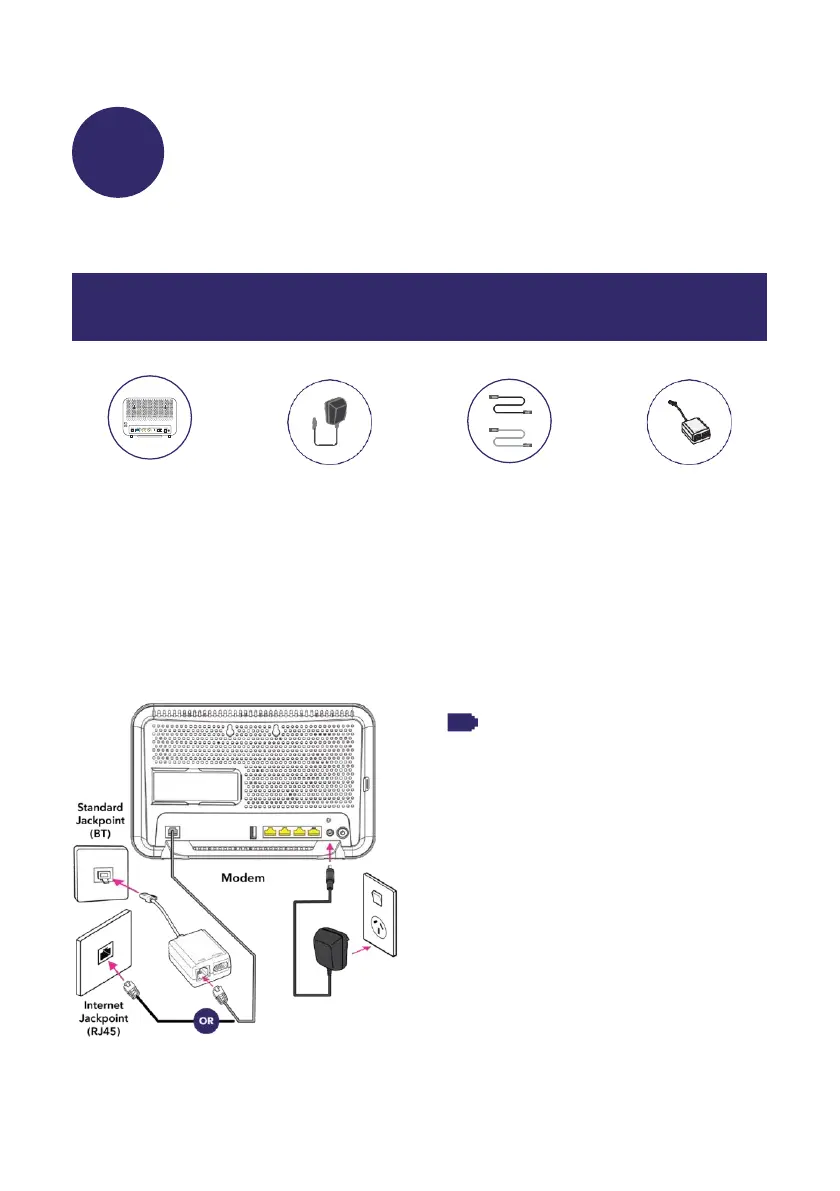

A. Plug the modem into a power
supply.
B. Connect the GREY cable
from the modem’s DSL port to
the filter’s ADSL port.
C. Connect the filter to the
jackpoint.
OR
2
DSL WAN LAN1 LAN2 LAN3 LAN4 USB
Phone 2 Ph one1 Power On/Off
