7

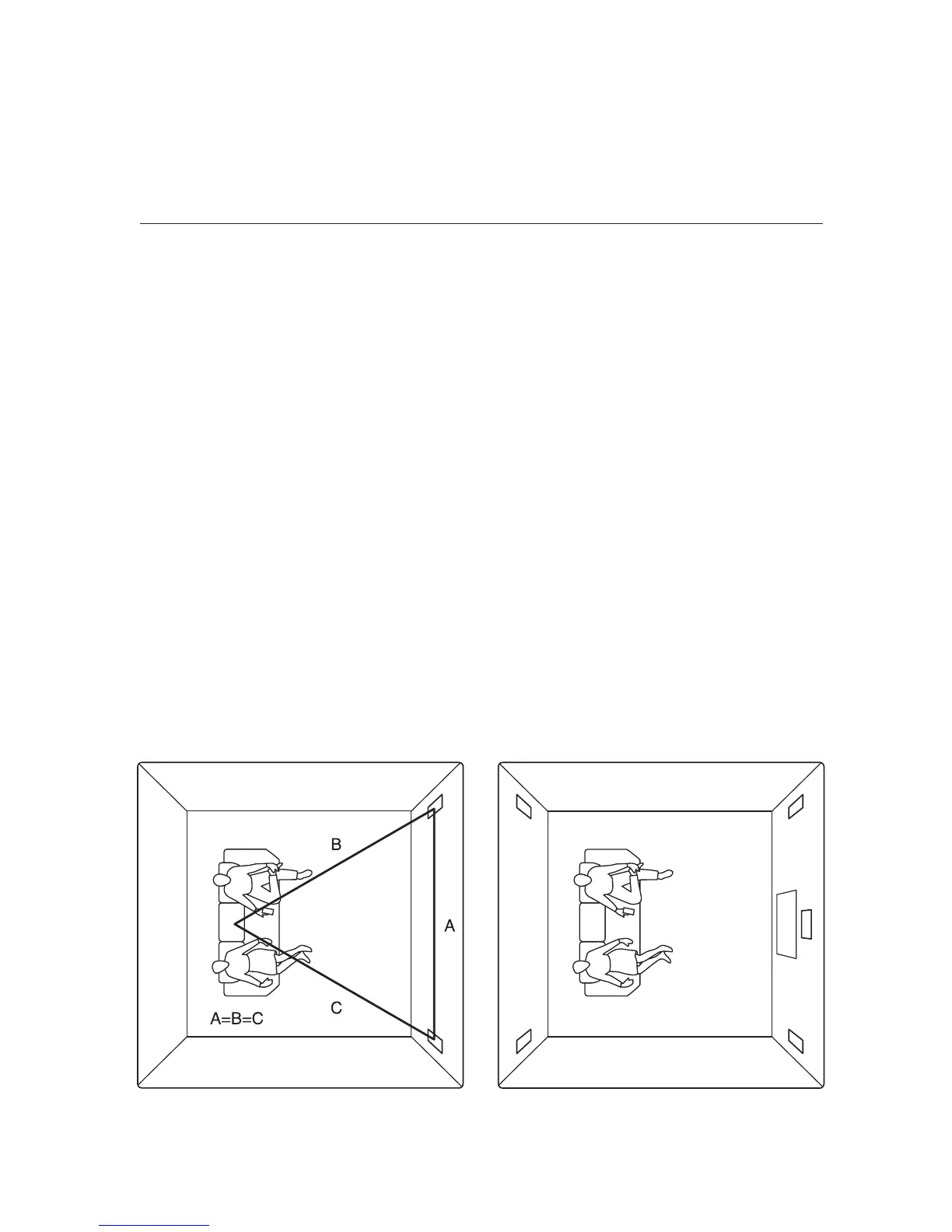

Figure 1 Figure 2
SPEAKER PLACEMENT
Multiple Speakers for Home Theater
The MT8 Three and MT8 Four speakers can be used in all five channels of a home
theater system: main left and right, center, and rear left and right. (See Figure 2)
1. Placement of Front Channels
Follow the recommendations under speaker placement for “SPEAKER PLACEMENT
—Single Pair” on Page 6.
2. Placement of Center Channel
For best results, a single speaker should be placed close to the screen, usually just
aboveorbelowit.Youmaywishtomountthespeakerhorizontally.TheUni-Pivot
can be pivoted 90˚ so that the tweeter and midrange will maintain their standard
position. (See “SPEAKER ADJUSTMENTS” on page 16) If you are mounting the MT8
horizontally, the longest side down, you will need 20" of clearance left to right to
mount the speaker. Standard 16" on center studs are too narrow.
3. Placement of Rear Channels
There are a number of options for using the MT8 as rear channels in a home
theater. For optimum results, they should be placed behind the listener with the
Uni-Pivotatearlevel.Itisusuallydesirabletodiffusethesoundfromtherear
channelsbypointingtheUni-Pivotinadirectionawayfromthelistener.
