SpeakerCraft MZC-66 User Manual

TYPICAL MZC-66 SYSTEM
6
SOURCE 1
OUT
IR
LOOP
L
R
V
LOOP INPUTS
SOURCE 2
OUT
IR
LOOP
L R
V
LOOP INPUTS
SOURCE 3
OUT
IR
LOOP
L R
V
LOOP
INPUTS
SOURCE 4
OUT
IR
LOOP
L R
V
LOOP INPUTS
SOURCE 5
OUT
IR
LOOP
L R
V
LOOP
INPUTS
SOURCE 6
OUT
IR
LOOP
L R
V
LOOP
INPUTS
L
R
PRE-OUT
VC
NVC
IR OUT
IR IN
485B
485A
GND
+12V
EZ-PAD
+ +
L
R
SPEAKERS
ZONE 1
L
R
PRE-OUT
VC
NVC
IR OUT
IR IN
485B
485A
GND
+12V
EZ-PAD
+ +
L
R
SPEAKERS
ZONE 2
L
R
PRE-OUT
VC
NVC
IR OUT
IR IN
485B
485A
GND
+12V
EZ-PAD
+ +
L
R
SPEAKERS
ZONE 3
L
R
PRE-OUT
VC
NVC
IR OUT
IR IN
485B
485A
GND
+12V
EZ-PAD
+ +
L
R
SPEAKERS
ZONE 4
L
R
PRE-OUT
VC
NVC
IR OUT
IR IN
485B
485A
GND
+12V
EZ-PAD
+ +
L
R
SPEAKERS
ZONE 5
L
R
PRE-OUT
VC
NVC
IR OUT
IR IN
485B
485A
GND
+12V
EZ-PAD
+ +
L
R
SPEAKERS
ZONE 6
120V
60Hz
2A
~
FUSE: T5AL 250V
CONTACT CLOSURE
EXPANSION
PORT
LOOP
PHONE
VIDEO
PAGE
IN
SpeakerCraft
MZC-66
DOORBELL/STATUS IN
1
2
CONTROL
PORT
FIRMWARE
UPGRADE
OFF ON
COMMON
IR OUT
LO
HI
COMMON
STATUS OUT
(0 to +12 V)
VIDEO OUTPUTS
ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6
Line Out
Expansion
Aux. Input
iPod Base
24V DC
SpeakerCraft
PS-3.0 24VDC
Power Supply
1
CD
MODE
ADAPTER
MODE
BASE
DVD
SATELLITE
CABLE
RSA-1.0
RS232 InterfaceAdapter
SpeakerCraft
®
CONTROL
PORT
EXPANSION
PORT LOOP
RS232
DATA I/O
IR
IN
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
ADDRESS
HI LO
PROGRAMMI NG
IR
OFF ON
12VDC
MODE JUKEBOX
PS-1.0 200mA
Power Supply
RSA-1.0
Stereo Line Level Audio/
Composite Video
From Source Out
To MZC-66 Source In
SpeakerCraft IRE Series
IR Emitter
From MZC-66 Source IR Out
IPod
MUTE
AUX
BASS TREB
PWR
SpeakerCraft AIM5 Three
Zone Speakers
MKP-1.1
Trim Plate Not Included With Keypad
MKP-1.0 NKP-1.0
Trim Plate Not Included With Keypad
MKP-1.1 NKP-1.0 FKP-1.0
Trim Plate Not Included With Keypad
MODE 3.1
Bezel Included With MODE 3.1
SpeakerCraft AIM5 Three
Zone Speakers
SpeakerCraft AIM5 Three
Zone Speakers
SpeakerCraft AIM5 Three
Zone Speakers
ZONE 1 ZONE 2
ZONE 3
ZONE 4
MENU
SEL
MUTE
PWR
1
2
3
4
5 6
7
8
9
0
TRK DSC
RDM
GRP
1 2
3
4 5 6
7
8 9
0
TRK DSC
RDM
GRP
PLAY
ESC INFO
MENUGUIDE
SEL
CBL AUX
MUTE
DVD SAT
PWR
iPOD 1
TREBBASS
CD
iPOD1
CD
DVD
SAT
CBL
iPOD1
CD
DVD
SAT
Zone
Video
Display
Zone
Video
Display
RG6 Coaxial Cable
18-14AWG 2-Conductor
Stranded Speaker Wire
CAT5 Cable

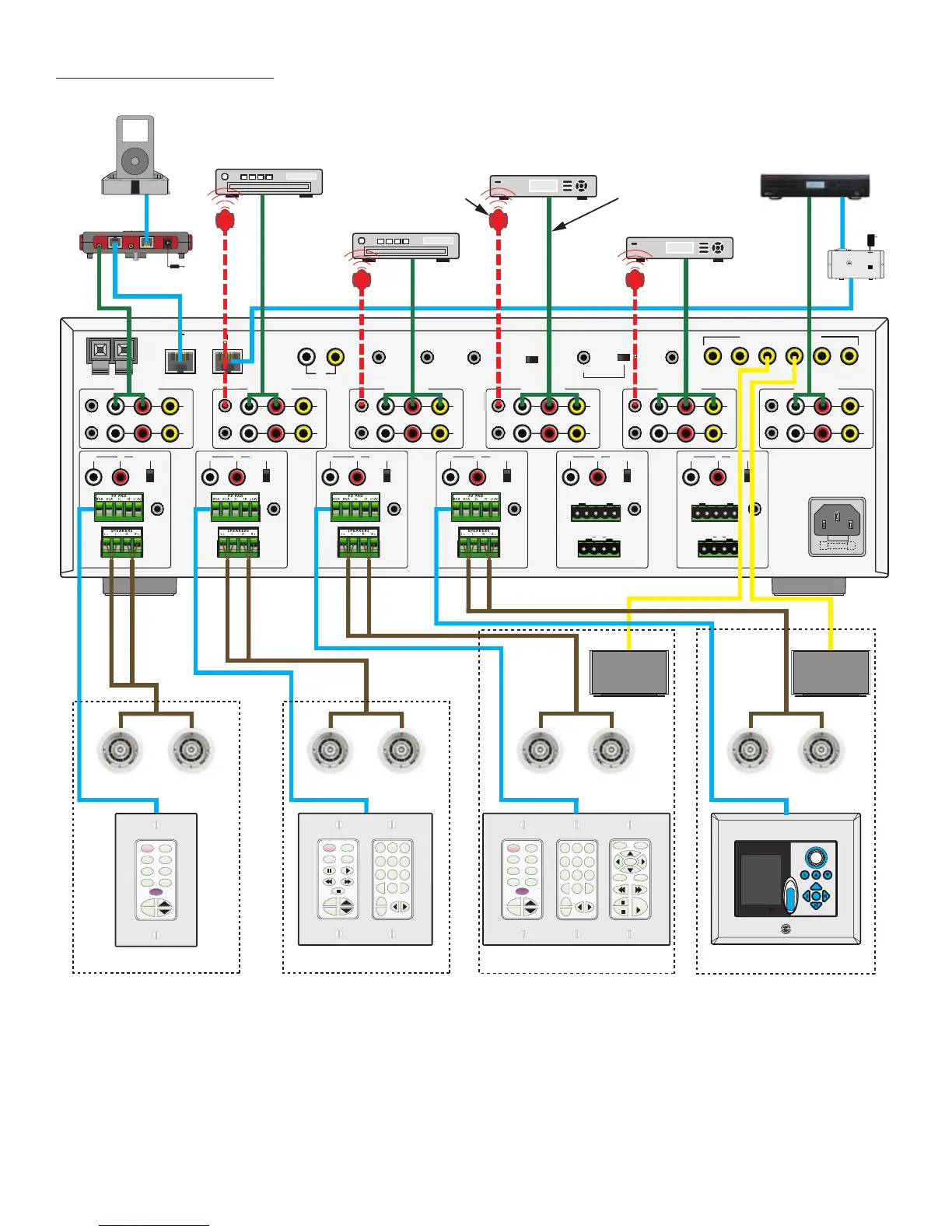

Typical MZC-66 System showing Keypad, Source and Speaker connections. A MZC-66 System will have limited functionality right out
of the box such as ON/OFF, Source Select and Volume/Mute. Common source control and power management must be cong-
ured in EZ Tools. High power or multi-channel ampliers can be added to the individual zones for high audio output in large rooms or
outdoor zones or when adding additional rooms or “sub-zones” to a default system. Additionally, the MZC-66 has a programmable
contact closure for control of lifts, screens, drapes etc.The MZC-66 also features two Doorbell/Status inputs that can be used for
common source power management or tiggering a system ‘event’ from a doorbell module. For additional information on connec-
tion, conguration and programming of these optional features see: MZC-66 Hardware Installation Instructions and EZ Tools MZC
Programming Instructions.

SpeakerCraft MZC-66 Specifications

Audio Specifications

rated power per channel	30 Watts, 20 Hz to 20 kHz
power per channel	45 Watts @ 1 kHz
total harmonic distortion	< 0.7 %
frequency response	20 Hz to 20 kHz +/- 1.5 dB
channel separation	> 50 dB @ 10 kHz
crosstalk between sources	> 65 dB @ 10 kHz
signal to noise ratio	> 95 dB

Power

power consumption	55 Watts
line ratings	120 VAC, 2.0A
rear panel fuse	T5AL 250V

Weight and Dimensions

width	17 inches (432 mm)
height	5-1/4 inches (133 mm)
depth	14-3/4 inches (375 mm)
weight	23 lbs (10.5 kg)
