SpeakerCraft MZC-66 User Manual

KEYPAD CONNECTIONS
5
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
ADDRESS
KEYPAD EXPANSION
MKP-1.1
J-Box EZ-Pad w/IRC
-Master-
SpeakerCraft
+RELAY
-RELAY
+12V
IR I/O
GND
485 A
485 B

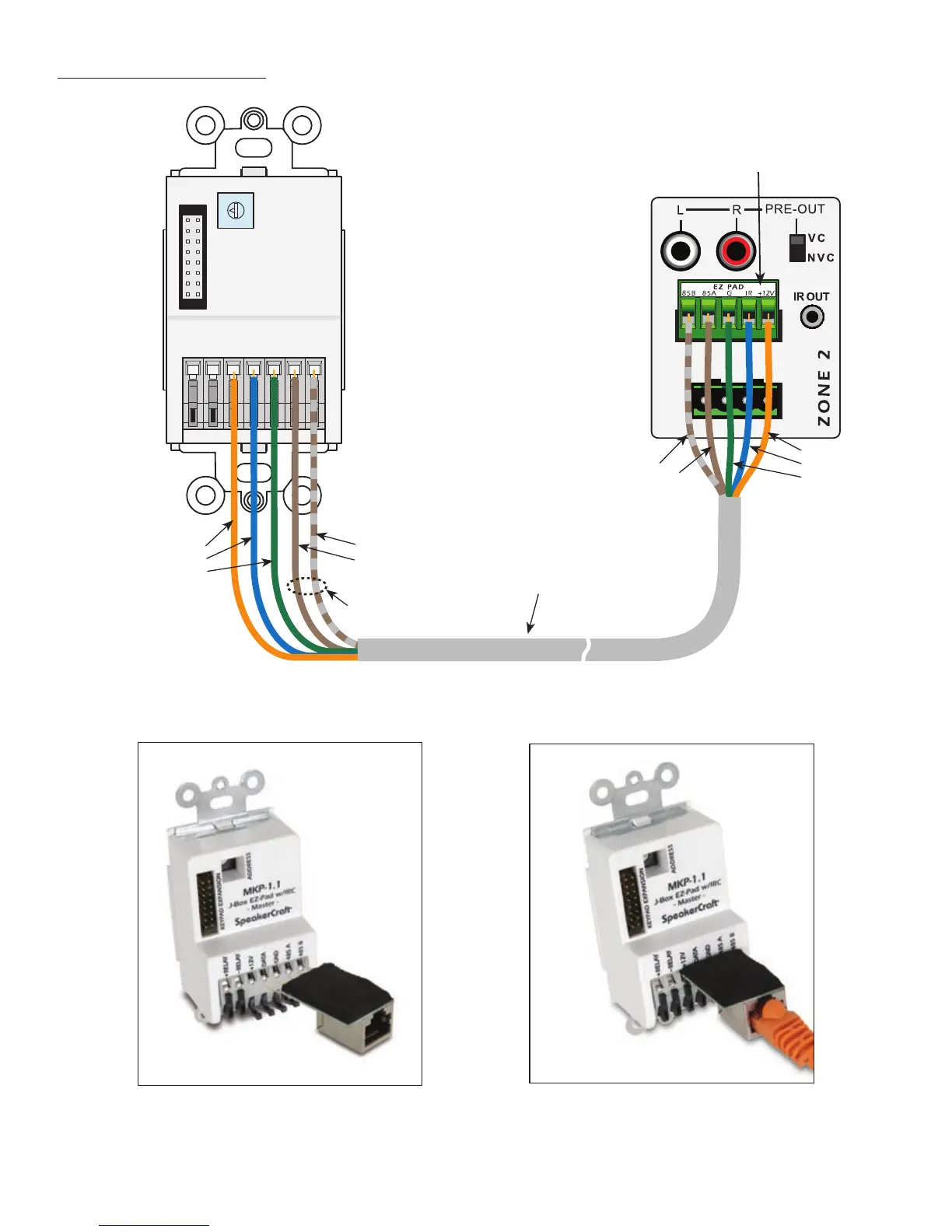

CAT-5 WITHOUT RJ45 CONNECTORS – Connect EZ-Pads to MZC-66 as shown above. Be sure to maintain consistent color code when
making connections. For IMKP, use same pin-out. See MODE 3.1 Installation Instructions for plug-in connector and RJ45 pin-outs.
Maximum recommended lead length with CAT-5 cable is 1000' (305m). (MODE, 500’)
CAT-5 WITH RJ45 CONNECTORS (EZ-Pad Only) – When using RJ45 connectors, connect the CAT-5 cable to the keypads using
SpeakerCraft model RJA-1.1 RJ45-TO-WIRE PIN ADAPTERS. Insert the RJA-1.1 pins into the keypad’s EZ-Connect Terminals and snap
the levers in place. Be sure RJA-1.1 pin orientation is correct prior to powering up the system. CAT-5 cable should be configured in
a pass-through (pin to pin) termination.
Rear View
Inter-room
Twisted Pair
Cat. 5 Cable
1000’(305m) Max.
Orange Pair
Blue Pair
Green Pair
Brown-White
Brown
Use Twisted Pair
for 485A & 485B
CAUTION:
Choice of colors used
is not important.
However, colors MUST
match to terminations
at each end as shown!
(see text)
Brown-White
Brown
Orange Pair
Blue Pair
Green Pair
MZC-66
EZ-Pad
Connector

SpeakerCraft MZC-66 Specifications

Audio Specifications

rated power per channel	30 Watts, 20 Hz to 20 kHz
power per channel	45 Watts @ 1 kHz
total harmonic distortion	< 0.7 %
frequency response	20 Hz to 20 kHz +/- 1.5 dB
channel separation	> 50 dB @ 10 kHz
crosstalk between sources	> 65 dB @ 10 kHz
signal to noise ratio	> 95 dB

Power

power consumption	55 Watts
line ratings	120 VAC, 2.0A
rear panel fuse	T5AL 250V

Weight and Dimensions

width	17 inches (432 mm)
height	5-1/4 inches (133 mm)
depth	14-3/4 inches (375 mm)
weight	23 lbs (10.5 kg)
