16 CHANNEL, FULLY CONFIGURABLE POWER AMPLIFIERS
APPLICATIONS
USING A DUAL-ZONE RECEIVER FOR TWO LISTENING ZONES
Most of today’s Audio Video Receivers include a second zone preamplier
output to create a second listening zone. Using this output with the SC16-50
BusMatrix™ input provides amplication for multiple rooms within a second
listening zone as shown in Figure 4.
In addition, in this example high power is supplied to the patio stereo
speakers by conguring channel 13 for high power (left speaker) and
conguring channel 15 for high power (right speaker).

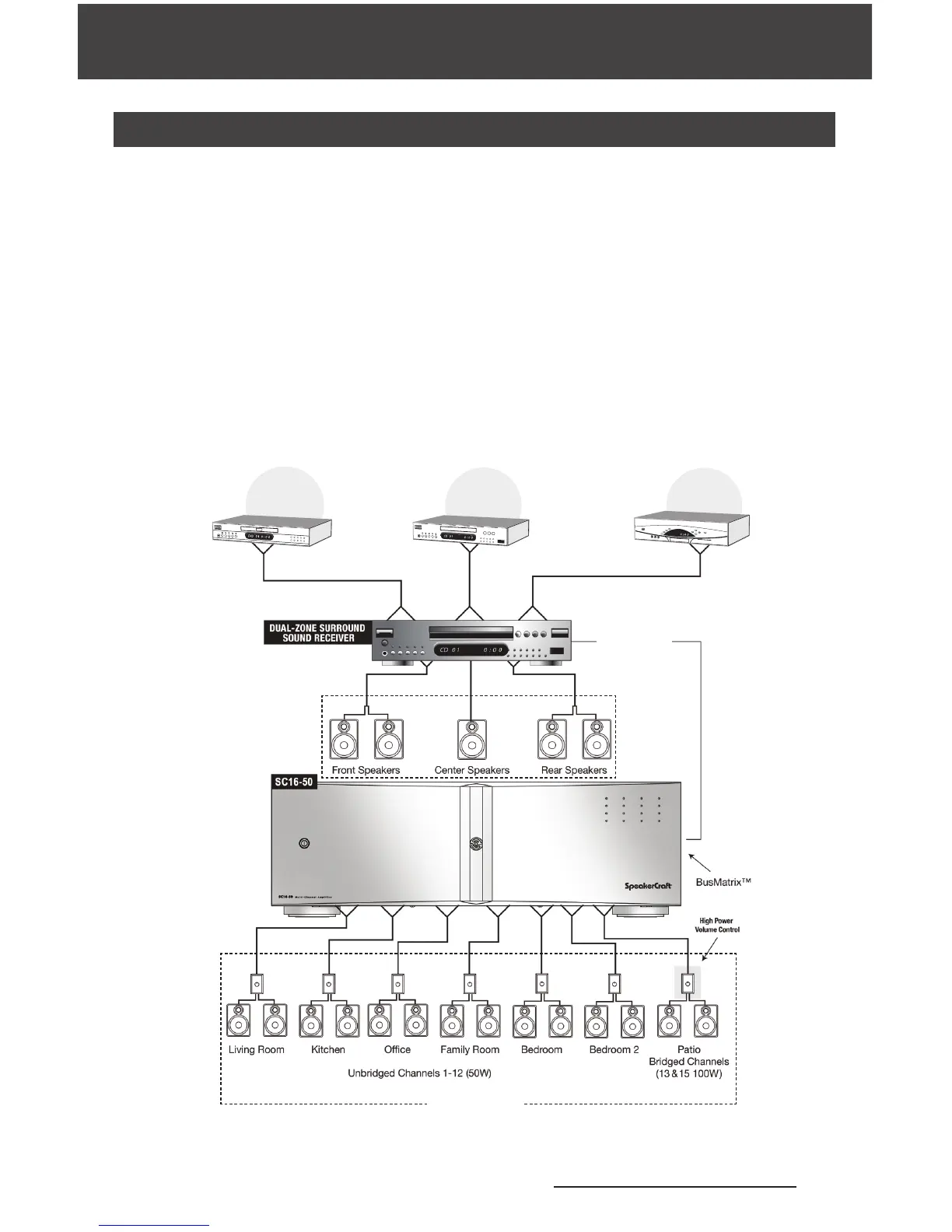

Figure 4
Cable
Box
CD
Player
Blu-ray
Player
Zone 2
Zone 1
(Home Theater)
Second Zone
Output
