14
www.SpeakerCraft.com
APPLICATIONS
EXPANDING A MULTI-ZONE SYSTEM
TO INCLUDE MORE ROOMS
Many Multi-Zone systems incorporate multiple rooms within a single zone.
The SC16-50 BusMatrix™ Input simplies the connections required for this
system design.

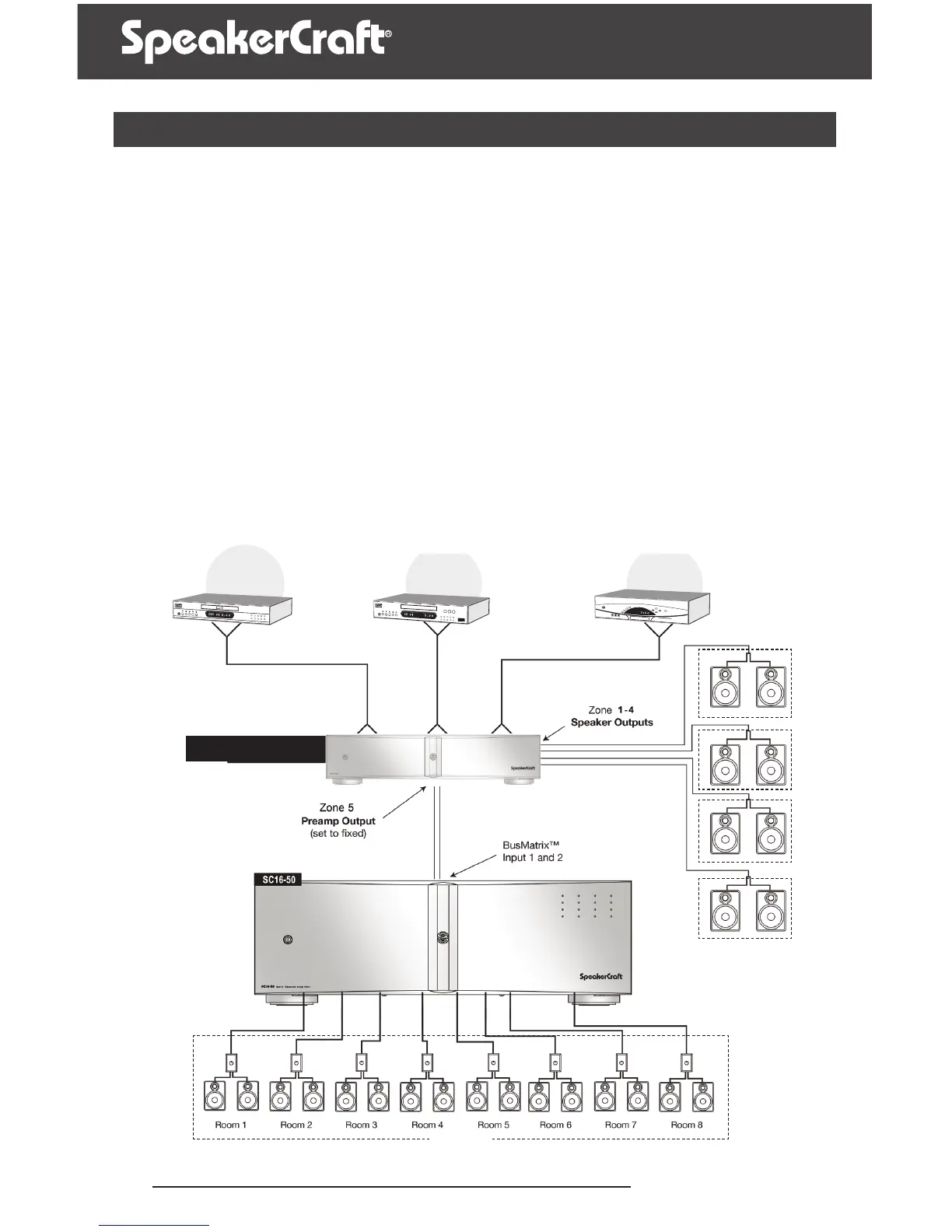

As shown in Figure 5, a SpeakerCraft MRA-664 has its speaker outputs
connected directly to speakers in zones 1-4. The MRA-664’s preamp output ve,
set to a xed output mode, is connected to the SC16-50’s BusMatrix™ inputs.
The BusMatrix™ input signals are then routed to all the amplier channels via
the IP Conguration and Setup Tool. All eight rooms connect to the SC16-50 in
Zone #5 with their own room volume control for adjusting room volume levels
individually.
Cable
Box
CD
Player
Blu-ray
Player
Zone 1 Zone 2 Zone 3 Zone 4
Zone 5
Figure 5
SpeakerCraft MRA-664
Multi Room Audio Controller
To Next Page
