Page 18 SoundSource Owner’s Manual
SPECIFICATIONS (Continued)
Audio Section
Power Output/Channel (RMS, both channels driven into 8Ω) .............................................. 35 Watts @ 1 kHz
THD (at rated power) ............................................................................................................ < 0.3 % @ 1 kHz
Input Impedance (Aux1 & 2) ................................................................................................. > 22 K Ω
Input Sensitivity (Aux1 & 2, for rated power) ........................................................................ 600 mV
Output Level at Audio Out Jacks ........................................................................................... 1.2 Volts (with 600 mV @ Aux In)
Frequency Response (@ 1 Watt) ............................................................................................ 30 Hz - 20 kHz ± 2 dB
FM Section
Tuning Range......................................................................................................................... 87.5 - 108.0 MHz
Sensitivity (50 dB quieting) .................................................................................................... 22 dBf Mono, 48 dBf Stereo
S/N Ratio (@ 65 dBf) .............................................................................................................. 70 dB Mono, 60 dB Stereo
Frequency Response (Mono or Stereo) .................................................................................. 40 Hz - 12 kHz ± 3 dB
Separation (@ 1 kHz) ............................................................................................................. > 30 dB
AM Section
Tuning Range......................................................................................................................... 520 - 1710 kHz
Sensitivity (loop antenna) ....................................................................................................... 750 uV / m
S/N Ratio (10 mV/m Input) .................................................................................................... 40 dB
CD Section
Frequency Response .............................................................................................................. 20 Hz - 20 kHz ± 2 dB
THD ........................................................................................................................................ < 0.1 %
S/N Ratio ................................................................................................................................ > 85 dB
Channel Separation ............................................................................................................... > 40 dB
INCLUDED ACCESSORY
SIR-1.0
Sou ndS ource IR Int erf ace Le ad
Use this lead to make connections between the
SoundSource “Remote Out” IR Jack and inter-room wir-
ing. Refer to Diagram 24 to familiarize yourself with the
SIR-1.0 components and Diagram 25 for a typical system
hookup.
Use the included Closed End Splice Connectors to make
attachments to the inter-room wire. Be sure to observe
correct polarity and use a proper crimping tool.
Gauge of the inter-room wire should be in the range of
22-18 AWG.
In our attempt to constantly improve our products, features and specifications are subject to change without notice.

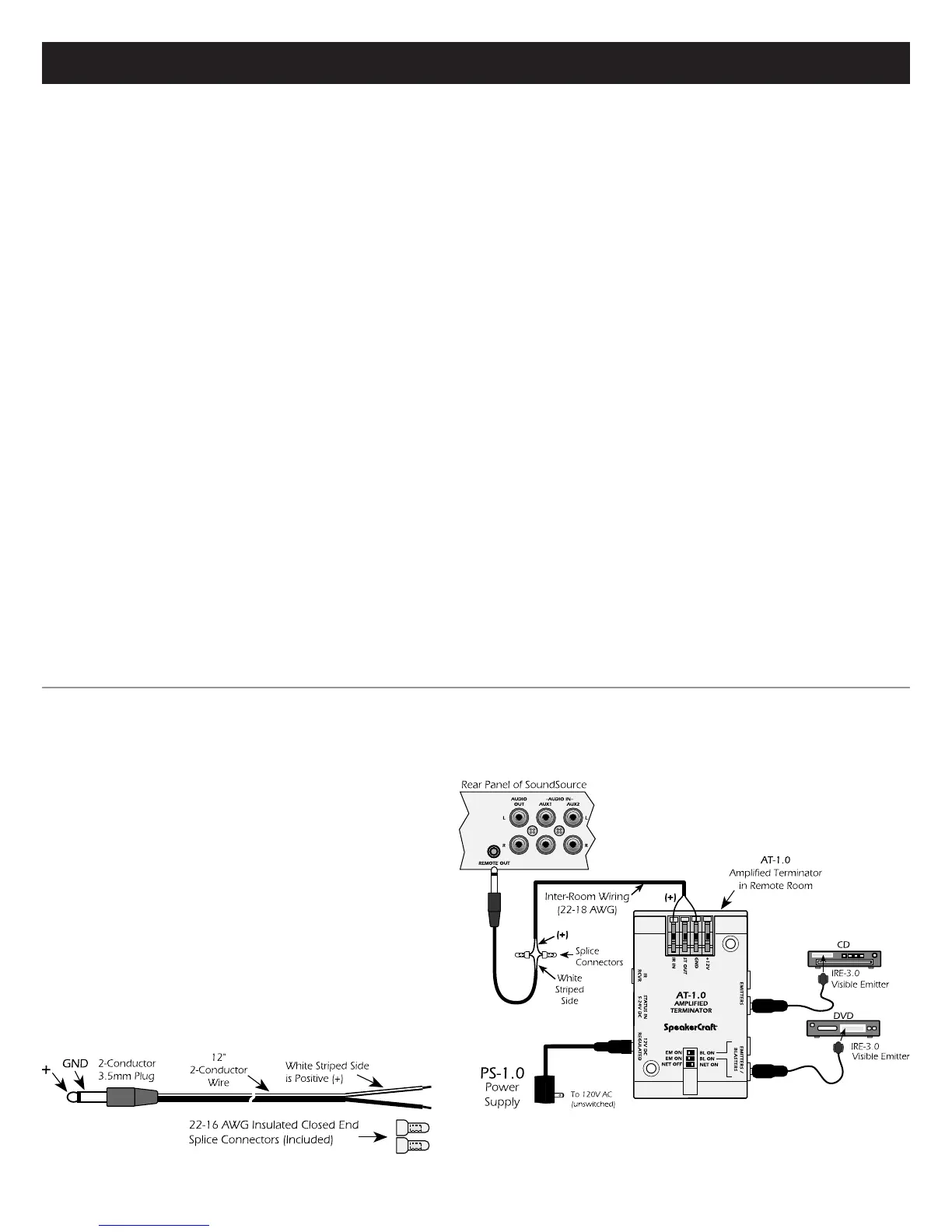

Diagram 25:
SIR-1.0 Typical System Hookup
Diagram 24:
SIR-1.0 Components

SpeakerCraft SoundSource Specifications

General

Brand	SpeakerCraft
Model	SoundSource
Category	Stereo System
Language	English
