Setting Up Your Machine
Setting Up Your Machine Setting Up Your Machine
Setting Up Your Machine
Levelling
Levelling Levelling
Levelling –
––
– Front To Rear
Front To RearFront To Rear
Front To Rear
Once coupled to the tractor, check the mower is cutting level from the front to the
rear of the machine. This is important to ensure each rotor will cut at the same
height.
1.
1.1.
1. Set
SetSet
Set-
--
-Up On Hard, Level Ground
Up On Hard, Level GroundUp On Hard, Level Ground
Up On Hard, Level Ground –
––
– Adjusting Tie Bars
Adjusting Tie BarsAdjusting Tie Bars
Adjusting Tie Bars

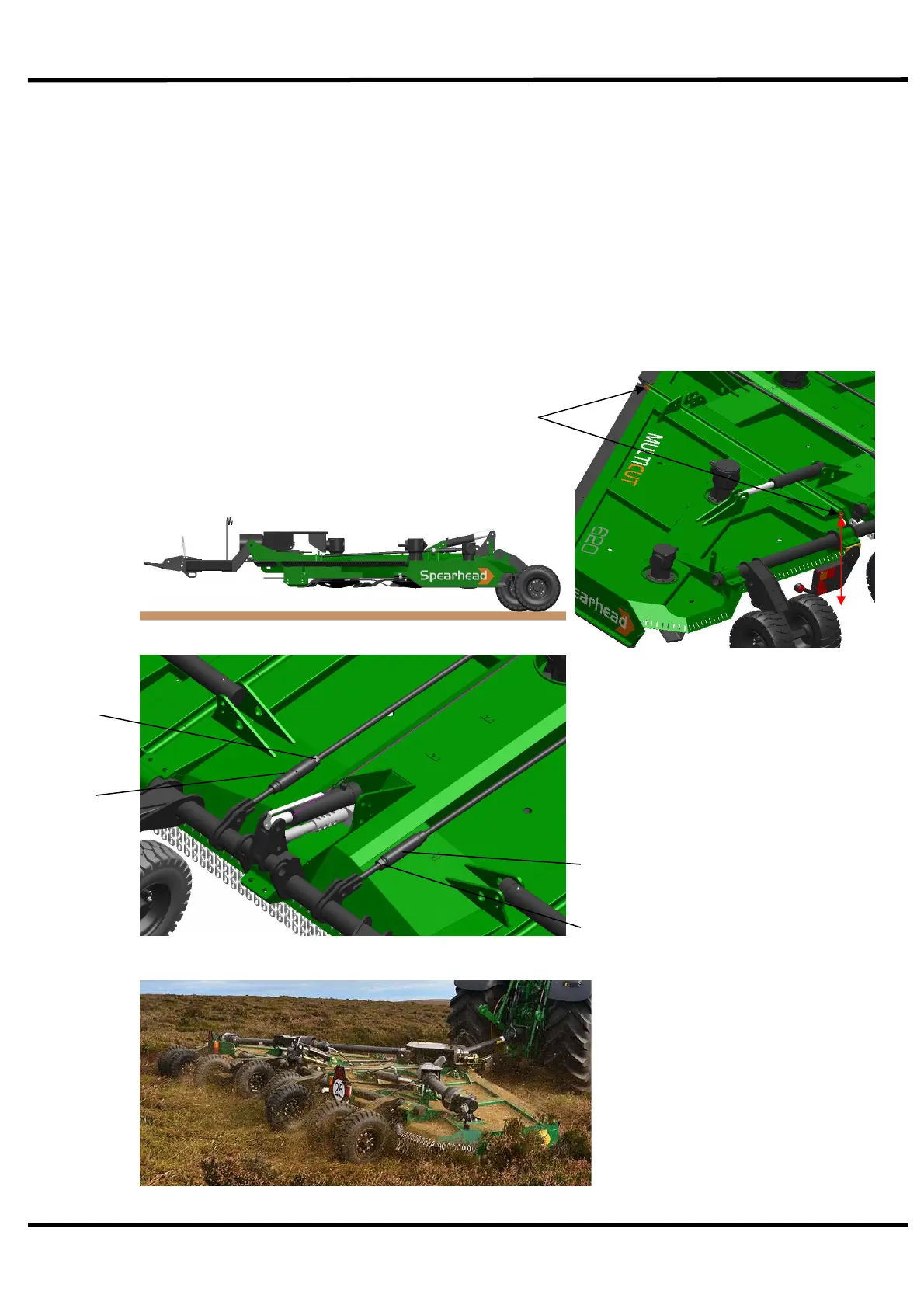

Levelling the front to rear of the machine should be carried out on a level concrete
surface with the front of the machine being 1 inch (25mm) higher than the rear.
Keep in mind that the tyres may
sink in soft conditions when the
machine is in use altering the
actual cut height. As a safe
precaution, set the cutting height
slightly higher on set-up to cater
for this sinking. Assess the
working area after and then adjust
again if required.
1
1
2
2
Adjustment
To
Height
The machine has adjustable tie bars
that can be lengthened to lower the
front or shortened to raise the front by
loosening the locking nuts and then
turning the barrel nut (1) accordingly.
Once set at the desired height tighten
the locking nuts (2) once again. These
tie bars need to be adjusted equally.
Measuring
One of the easiest ways to determine the height of
the front and rear of the machine is to measure
from each end of the top of the hinge bar to the
ground. Measurements need to be taken from the
same side of the machine.
