Spearhead Multicut 620 - Daily Service and Maintenance Checks

Spearhead Multicut 620
23
2323
23
Servicing & Maintenance
Servicing & MaintenanceServicing & Maintenance
Servicing & Maintenance
Daily
DailyDaily
Daily
• Grease all grease points, including rear axle pivot points (Fig. 9a), axle hinge
(Fig. 9c), wheel arms (Fig. 9b), and front draw bar pivot (Fig. 9f)
• Check bolts are tight on all gearboxes.
• Check condition of blades and blade bushes; ensure all retaining bolts are
fully tight.
• Check wheel nuts are tight.
• Check tyre pressures – 40 P.S.I.
• Check gearbox oil, replenish with EP90 gear oil as necessary to the correct
level line on the dipsticks, provided with each gearbox.

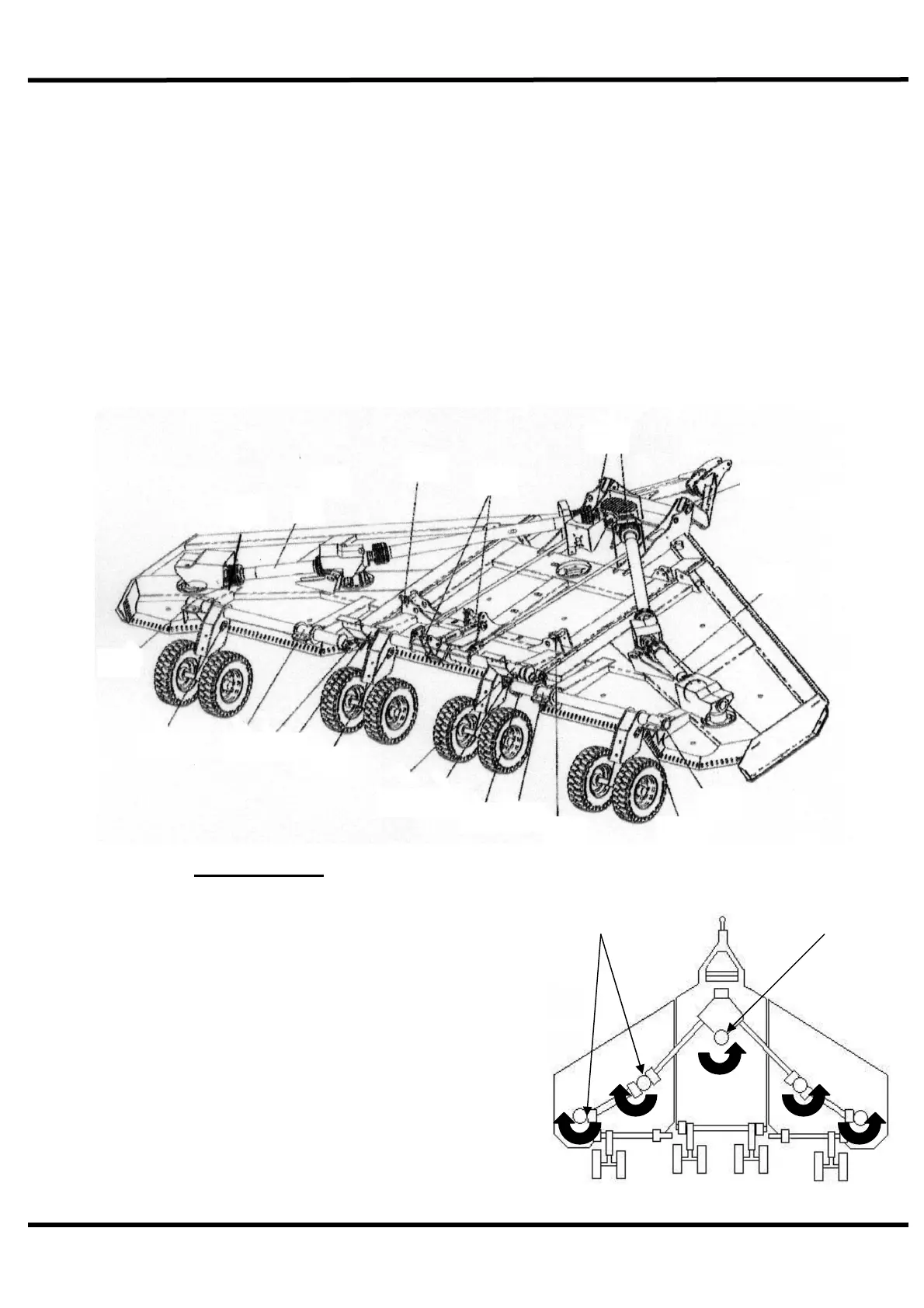

Fig. 9 Greasing points
A Rear axle pivot points; grease points 7 off
B Wheel arm grease points 4 off
C Rear axle hinge joint grease points 2 off
D Height adjustment grease points 1 off
E Drive shafts c/w slip clutch 2 off
F Front drawbar grease points 2 off
G Wing rams 2 off
H Wheel bearings 8 off
I Telescopic shafts 2 off
E
I
G
D
E
F
E
A
E
A
B G
A C
B A
B
A C A B
Blade rotation
CLOCKWISE
Blade rotation
ANTI CLOCKWISE
