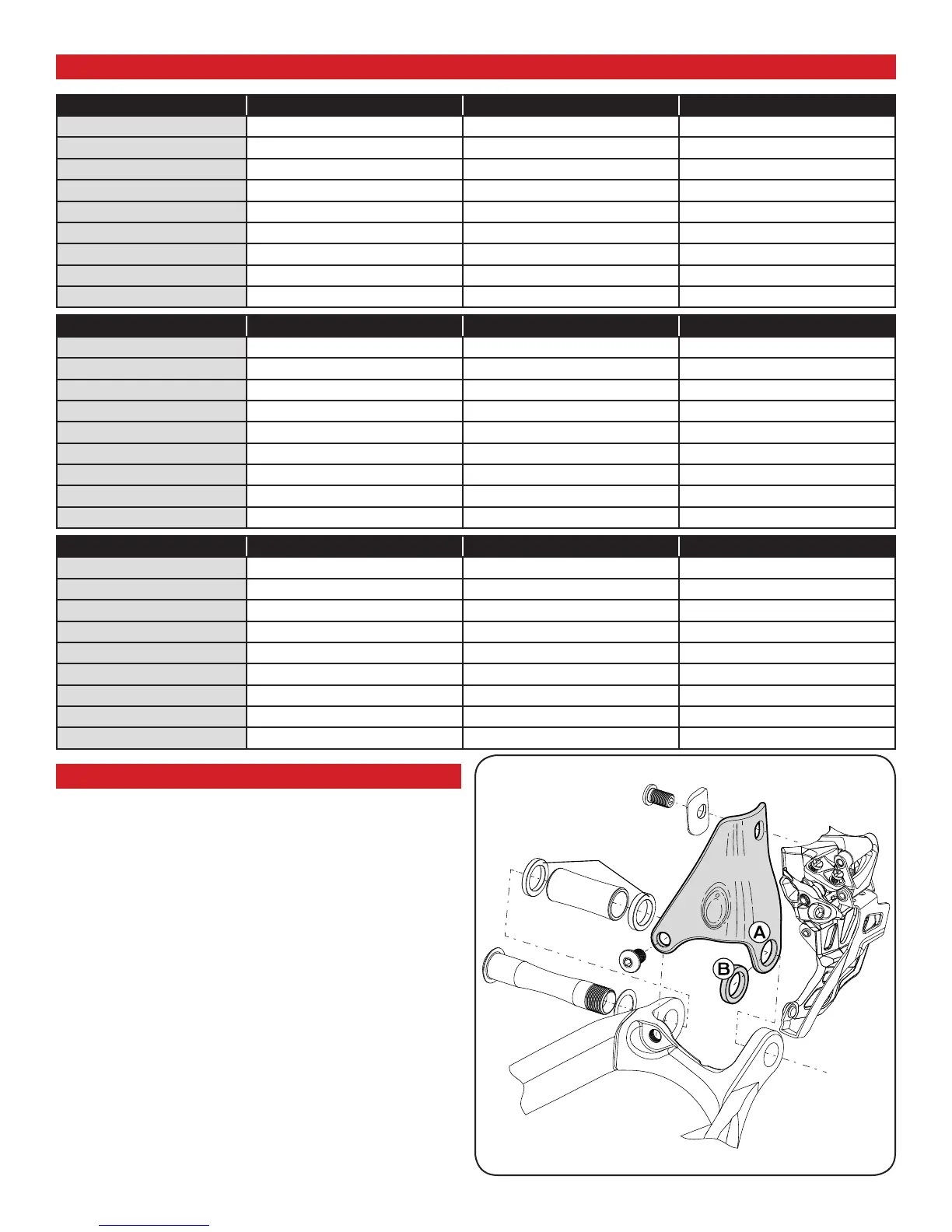

FRAME SPECIFICATIONS
DESCRIPTION EPIC CAMBER RUMOR
HEADSET
1 1/8” upper / 1.5” lower 1 1/8” upper / 1.5” lower 1 1/8” upper / 1.5” lower
SEATPOST DIAMETER
27.2mm 30.9mm 30.9mm
SEAT COLLAR (CARBON)
31.8mm -- --
SEAT COLLAR (ALLOY)
31.8mm 34.9mm 34.9mm
FRONT DERAILLEUR CLAMP
High direct mount (non-WC) E-Type Direct Mount (DMD) E-Type Direct Mount (DMD)
REAR HUB SPACING
142mm x 12mm 142mm x 12mm 142mm x 12mm
BOTTOM BRACKET SHELL
PF30 73 x 46mm PF30 73 x 46mm PF30 73 x 46mm
DERAILLEUR HANGER
9892-4020 9892-4020 9892-4020
ISCG TABS
-- -- --
DESCRIPTION SAFIRE STUMPJUMPER FSR ENDURO 26”
HEADSET
1 1/8” upper / 1.5” lower 1 1/8” upper / 1.5” lower 1 1/8” upper / 1.5” lower
SEATPOST DIAMETER
30.9mm 30.9mm 30.9mm
SEAT COLLAR (CARBON)
-- 34.9mm 34.9mm
SEAT COLLAR (ALLOY)
34.9mm 34.9mm 34.9mm
FRONT DERAILLEUR CLAMP
E-Type Direct Mount (DMD) E-Type Direct Mount (DMD) E-Type Direct Mount (DMD)
REAR HUB SPACING
135mm 142mm x 12mm 142mm x 12mm
BOTTOM BRACKET SHELL
Threaded 73mm PF30 73 x 46mm PF30 73 x 46mm
DERAILLEUR HANGER
9895-4020 9892-4020 9892-4020
ISCG TABS
-- ISCG 05 ISCG 05
DESCRIPTION ENDURO 29” STATUS DEMO
HEADSET
1 1/8” upper / 1.5” lower 1.5” upper / 1.5” lower 1.5” upper / 1.5” lower
SEATPOST DIAMETER
30.9mm 30.9mm 30.9mm
SEAT COLLAR (CARBON)
34.9mm -- 36.9mm
SEAT COLLAR (ALLOY)
34.9mm 34.9mm 34.9mm
FRONT DERAILLEUR CLAMP
SRAM MDM (with taco blade, below) -- --
REAR HUB SPACING
142mm x 12mm 135mm 150mm (Team - 135mm)
BOTTOM BRACKET SHELL
PF30 73 x 46mm Threaded 73mm PF30DH 83 x 46mm
DERAILLEUR HANGER
9892-4020 9895-4020 9891-4010
ISCG TABS
ISCG 05 Standard ISCG 05
ENDURO 29 CHAINRING SETUP
 2 Chainring setup: Use taco blade (A) to mount front derailleur.
 1 Chainring setup: Remove taco blade and replace with spacer (B)
between bearing and chainstay.
CHAINSTAY
TACO
BLADE
WASHER
SPACER
BEARING
AXLE
