SWAT BOX
The SWAT Box is compatible only with frames equipped with a 3rd water bottle boss on the downtube (2014 Epic).

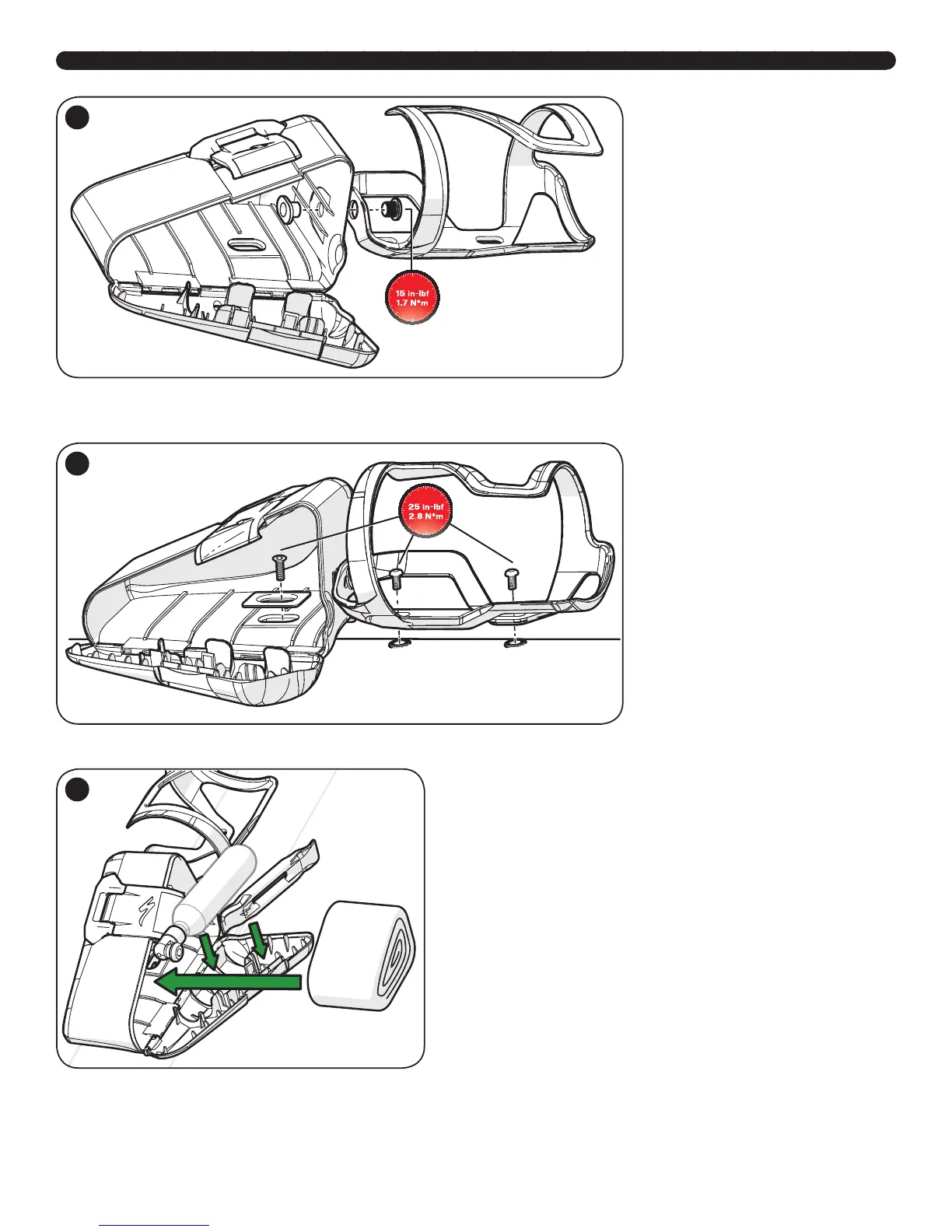

1
 Insert the T-Nut into the SWAT Box from the inside.
 Place the Zee-Cage 2 over the SWAT Box and align the hole at the base of the Zee-Cage 2 with the hole in the SWAT box. Torque the T-Bolt to 15
in-lbf (1.7 Nm).
2
 Bolt the assembly to the down tube (2 x Specialized low-profile M5 x 16mm water bottle bolts, 1 x recessed M5 x 18mm bolt). Torque the bolts to
25 in-lbf (2.8 Nm).
C
O
2
C
A
R
T
R
I
D
G
E
S
O
L
D
S
E
P
A
R
A
T
E
L
Y
T
I
R
E
LE
V
E
R
T
U
R
B
O
S
L
T
U
BE
3
 Place a Specialized Turbo SL tube (29 x 1.75 - 2.40, with 40mm valve stem) into the box.
 Partially thread the Specialized CO2 head onto a 25g CO2 cartridge (cartridge sold separately).
 Click the CO2 head/cartridge assembly into its designated slot.
 Click the Specialized Tire Lever into its designated slot. The SWAT Box can only accept the Specialized Tire Lever.
