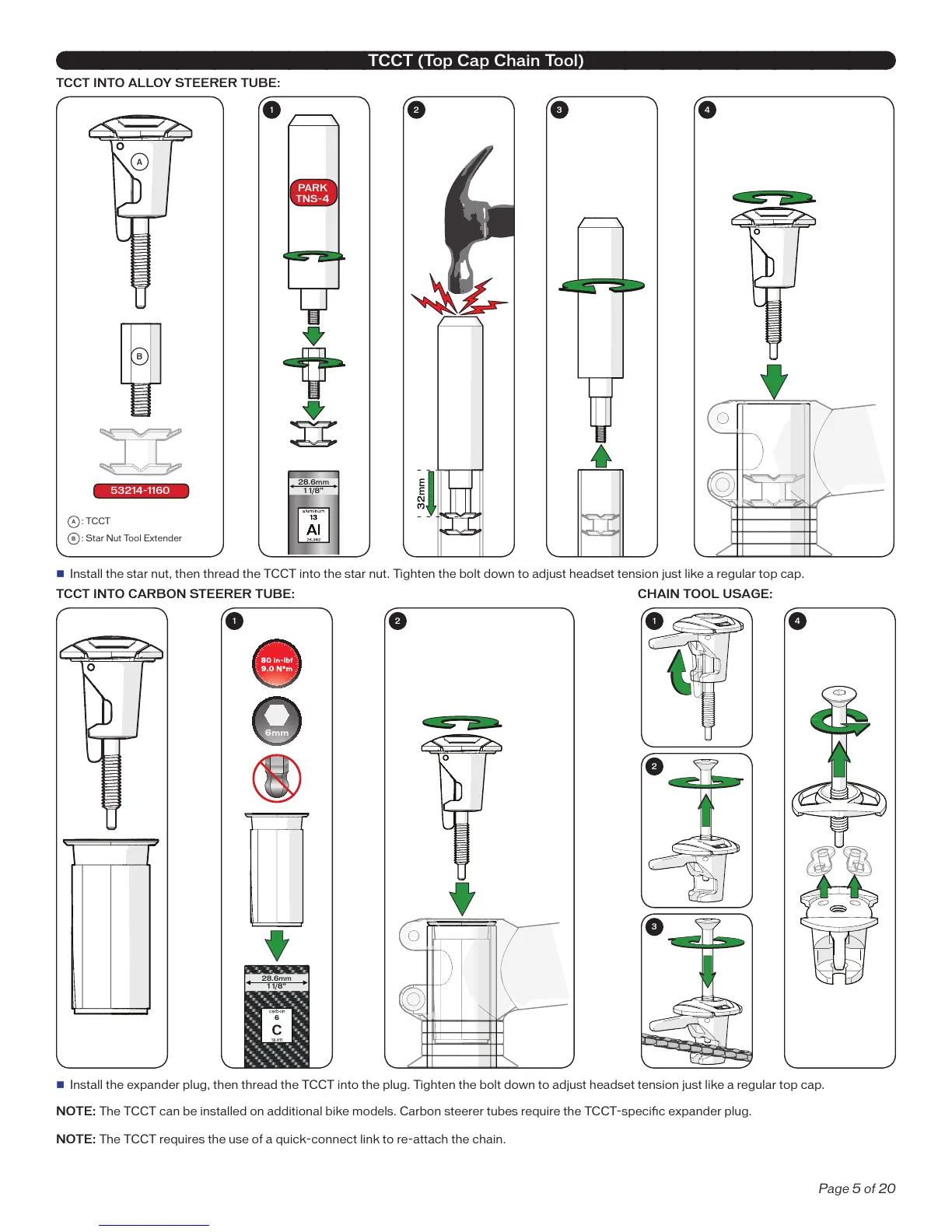

TCCT (Top Cap Chain Tool)
TCCT INTO ALLOY STEERER TUBE:
53214-1160
A
: TCCT
B
: Star Nut Tool Extender
A
B
28.6mm
1 1/8”
1
PARK
TNS-4
32mm
2 3 4
 Install the star nut, then thread the TCCT into the star nut. Tighten the bolt down to adjust headset tension just like a regular top cap.
TCCT INTO CARBON STEERER TUBE: CHAIN TOOL USAGE:
28.6mm
1 1/8”
1 2 1
2
3
4
 Install the expander plug, then thread the TCCT into the plug. Tighten the bolt down to adjust headset tension just like a regular top cap.
NOTE: The TCCT can be installed on additional bike models. Carbon steerer tubes require the TCCT-specific expander plug.
NOTE: The TCCT requires the use of a quick-connect link to re-attach the chain.
