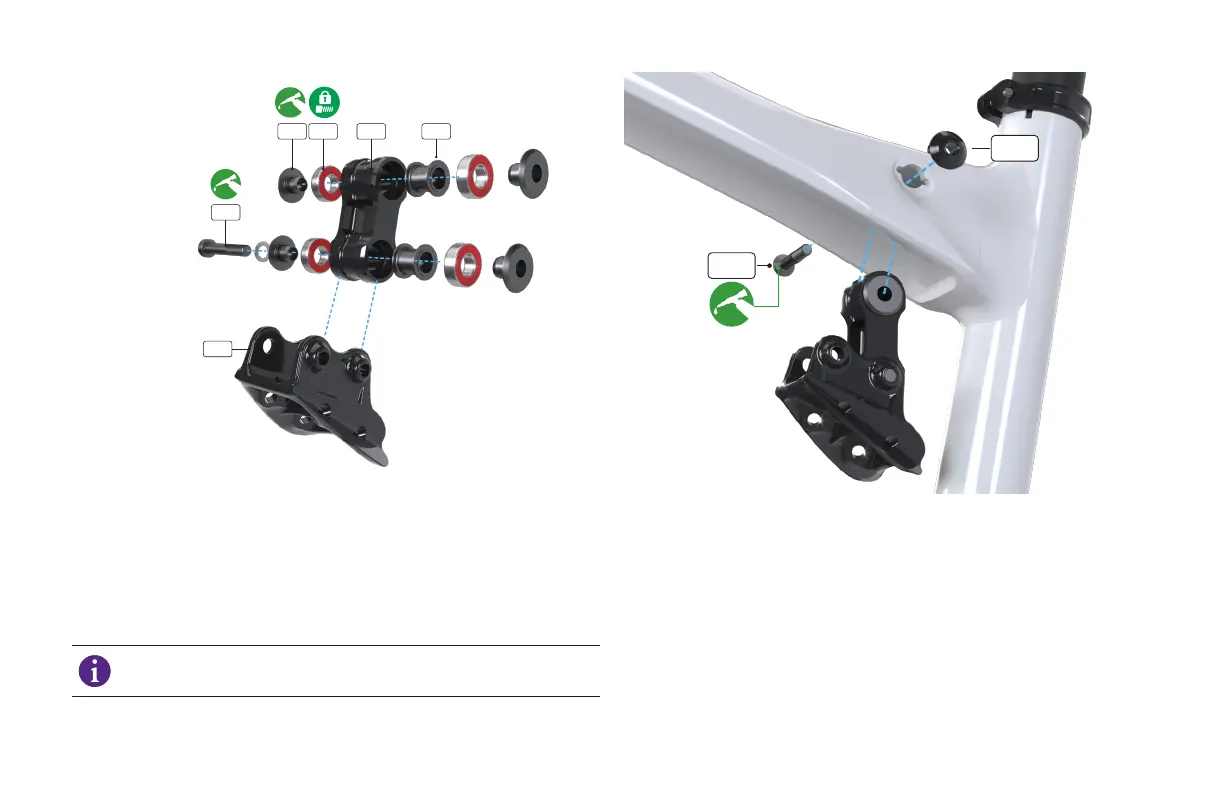

Link at seatstay bridge
Insert the link center spacers (H) into the link (G).
Apply Loctite 603 to the outside diameter of the link bearings (E), then
press them into the link. Grease then insert the top hat spacers (F).
Insert the link into the seatstay bridge (I).
Grease the lower link bolt (J). Place a washer on the bolt, then insert it
through the rear holes of the seatstay bridge and through the link.
Hand-tighten the bolt.
Don't torque the lower link bolt yet. You’ll torque it to specification
later in the assembly process.
K
L
Link / seatstay bridge assembly
Install the link and seatstay bridge assembly into the top tube cavity.
Insert the upper link nut (L). Grease then insert the upper link bolt (K)
through the top tube and into the link. Using a torque wrench and a 5
mm hex bit, torque the upper link bolt to 7 Nm / 62 in-lbf.
