17
N
M

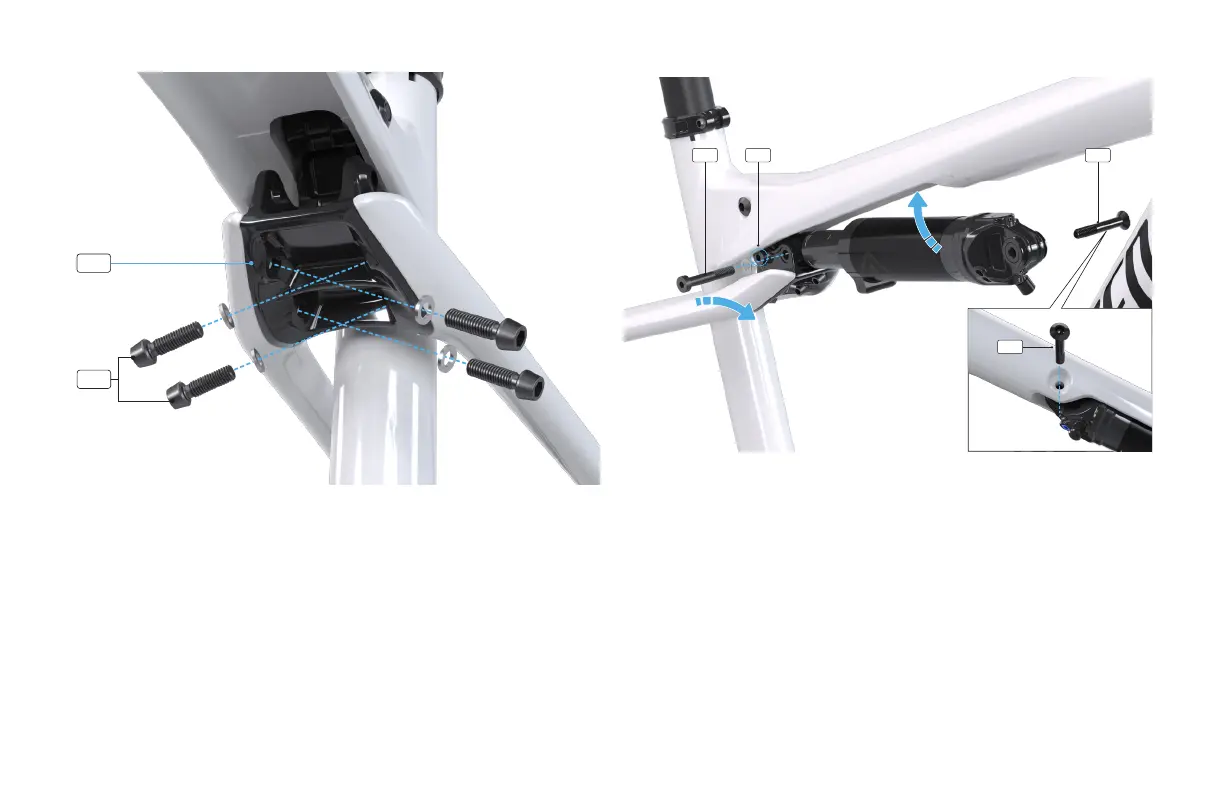

Seatstays at seatstay bridge
Line up the holes in the seatstays (M) with the bridge.
Insert the four seatstay bridge bolts and washers (N - two on each side)
through the bridge and into the seatstays.
Hand-tighten each bolt in a cross pattern starting with the forward
drive side bolt until all four bolts are fully seated.
Using a torque wrench and 4 mm hex bit, torque each bolt to 5 Nm / 44
in-lbf.
J QP
Q
Installing the shock
Tilt the seatstays and bridge forward to access the rear shock mount,
then align the ear shock eyelet with teh rear shock mounting hole in
the frame.
Place a washer on the rear shock mounting bolt (P), then insert the
rear shock mounting bolt through the rear shock eyelet and into the
front holes of the seatstay bridge. Using a torque wrench and a 4 mm
hex bit, torque the bolt to 7 Nm / 62 in-lbf.
Using a torque wrench and a 4 mm hex bit, torque the lower link bolt (J)
to 7 Nm / 62 in-lbf.
Install the shock into the top tube cavity. Insert the forward shock
mounting bolt (Q) through the top tube into the forward shock eyelet.
Using a torque wrench and a 5 mm hex bit, torque the bolt to 7 Nm / 62
in-lbf.
