3.4. ALIGN THE STEM
3.15
Fig. 3.15

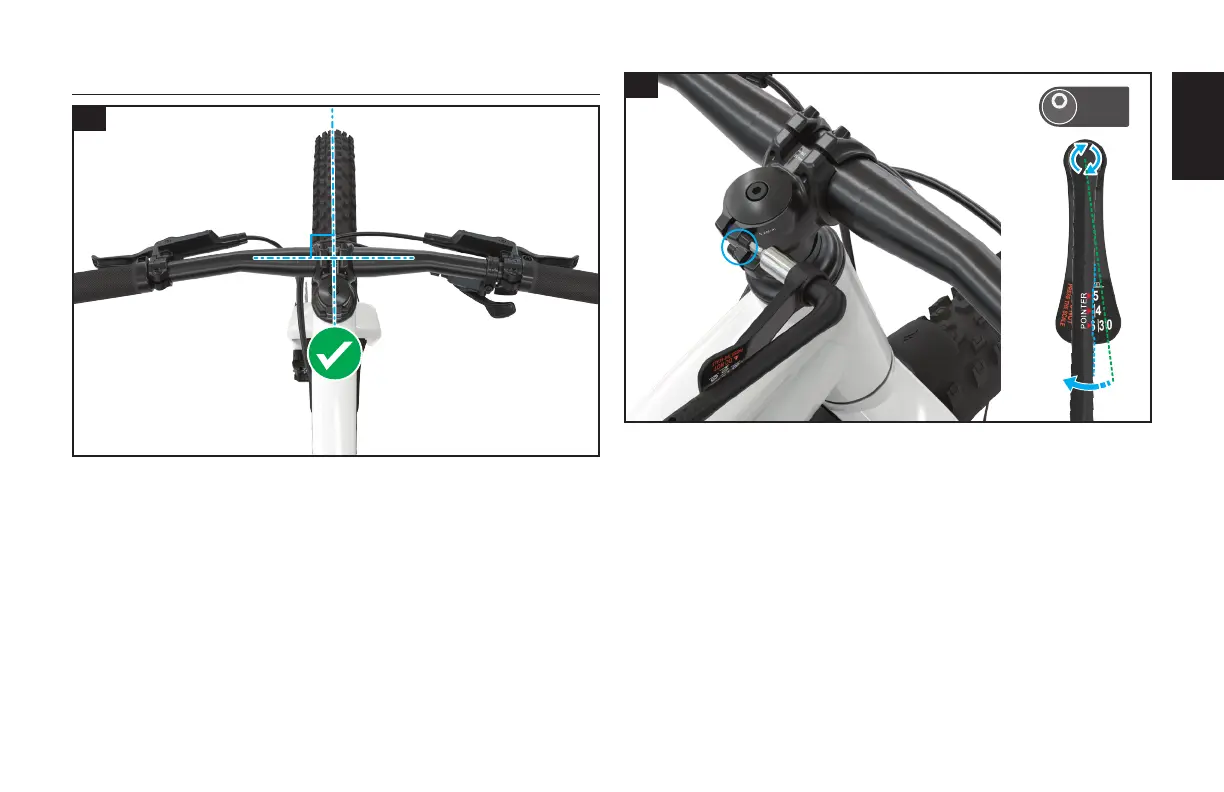

Once the assembly is complete, double-check to make sure the stem and handlebar are
aligned with the front wheel.
The stem is pre-aligned and tightened at the factory and should not need to be aligned. If
the stem needs to be adjusted, follow the steps below. Otherwise, move on to the seatpost
and saddle.
0 Nm
5.2
Nm
4 MM
3.16
Fig. 3.16
To align the stem, use the supplied wrench to loosen the bolts on the rear of the stem and
adjust the stem and handlebar's angle to be in line with the front wheel.
Once aligned, re-torque the rear stem bolts using the supplied torque wrench and a 4 mm
Hex bit to 5.2 Nm.
