Rotate the derailleur forward to release the pressure on the chain.
Guide the wheel down and out of the dropouts.
INSTALL THE REAR WHEEL
Rotate the derailleur forward to release the pressure on the chain.
Guide the wheel up and into the rear dropout. As you are doing this, guide the disc brake
rotor into the brake caliper.
Re-insert the thru-axle through the dropout holes and torque the thru-axle to 10 Nm using
the supplied torque wrench and a 6 mm Hex bit.

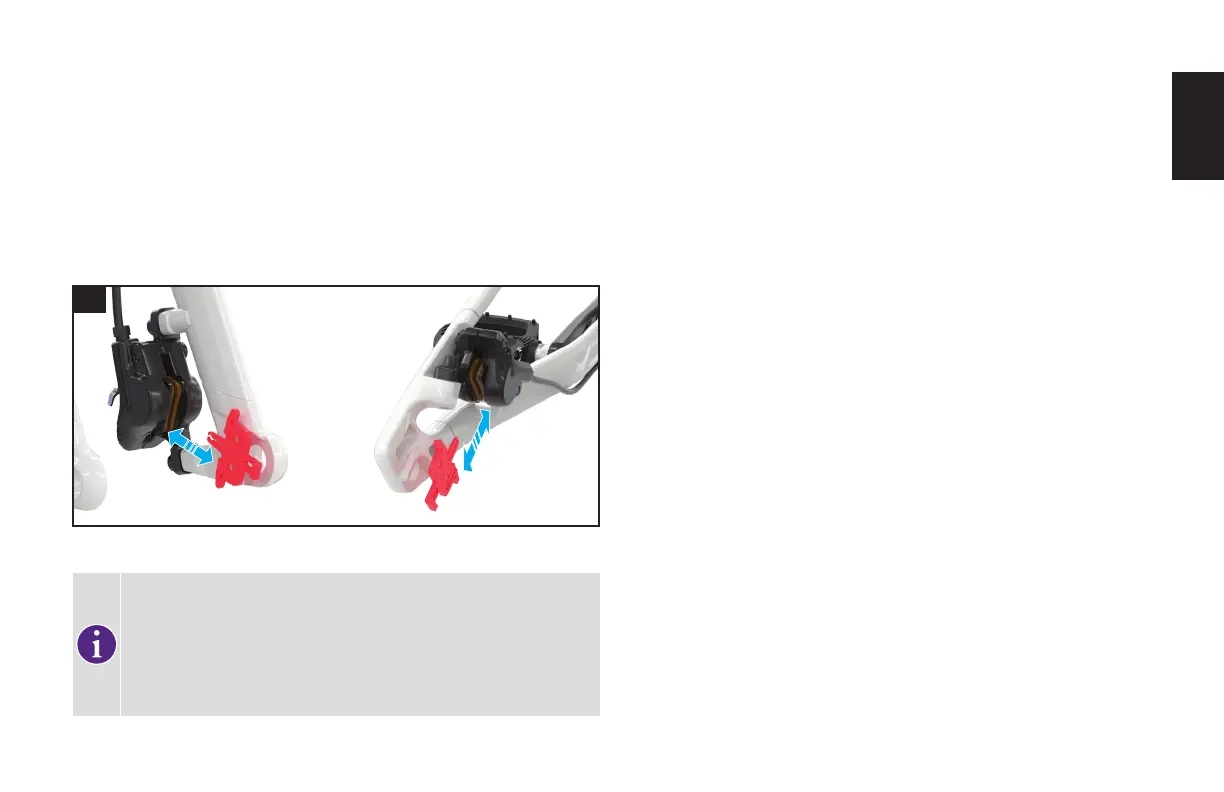

BRAKE PAD SPACERS
5.4
Fig. 5.4
INFO: When the wheels are removed from the bicycle DO NOT pull the brake
levers as it will cause the calipers to close and it will be difficult to re-insert
the brake disc into the calipers when re-installing the wheels. Insert the pad
spacers between the brake pads when the wheels are removed from the
bicycle to avoid this. The Spacer is supplied separately in the small parts box.
If the brake pads close, you can re-open the caliper by sliding the pad spacer
back into the caliper and pushing out the pads.
