35
◆ AUTO : Automatically, It shifts into the color mode in the bright environment and the B/W mode in the
low light condition. It can adjust the delay time, starting brightness and end brightness according to the
ambient conditions by pressing the Set button.
- SMART IR : 0~20 smart IR level adjustable.
- AGC THRES : 0~20 AGC THRES level adjustable.
- AGC MARGIN : 0~20 AGC MARGIN level adjustable.
- DELAY [LOW/MIDDLE/HIGH] : Set the delay time for switching between COLOR and B/W
- SMART IR : It controls the IR LED(bright portion base), satuation is not expected.
0~20 level adjustable.
◆ COLOR : Making the video output color always.
◆ B / W : Making the video output B/W always.
◆ EXTERN : It can change the color or B/W mode automatically through the connection with the ground
terminal.(Option for box camera and IR camera)
- SMART IR : It controls the IR LED(bright portion base), satuation is not expected.
0~20 level adjustable.

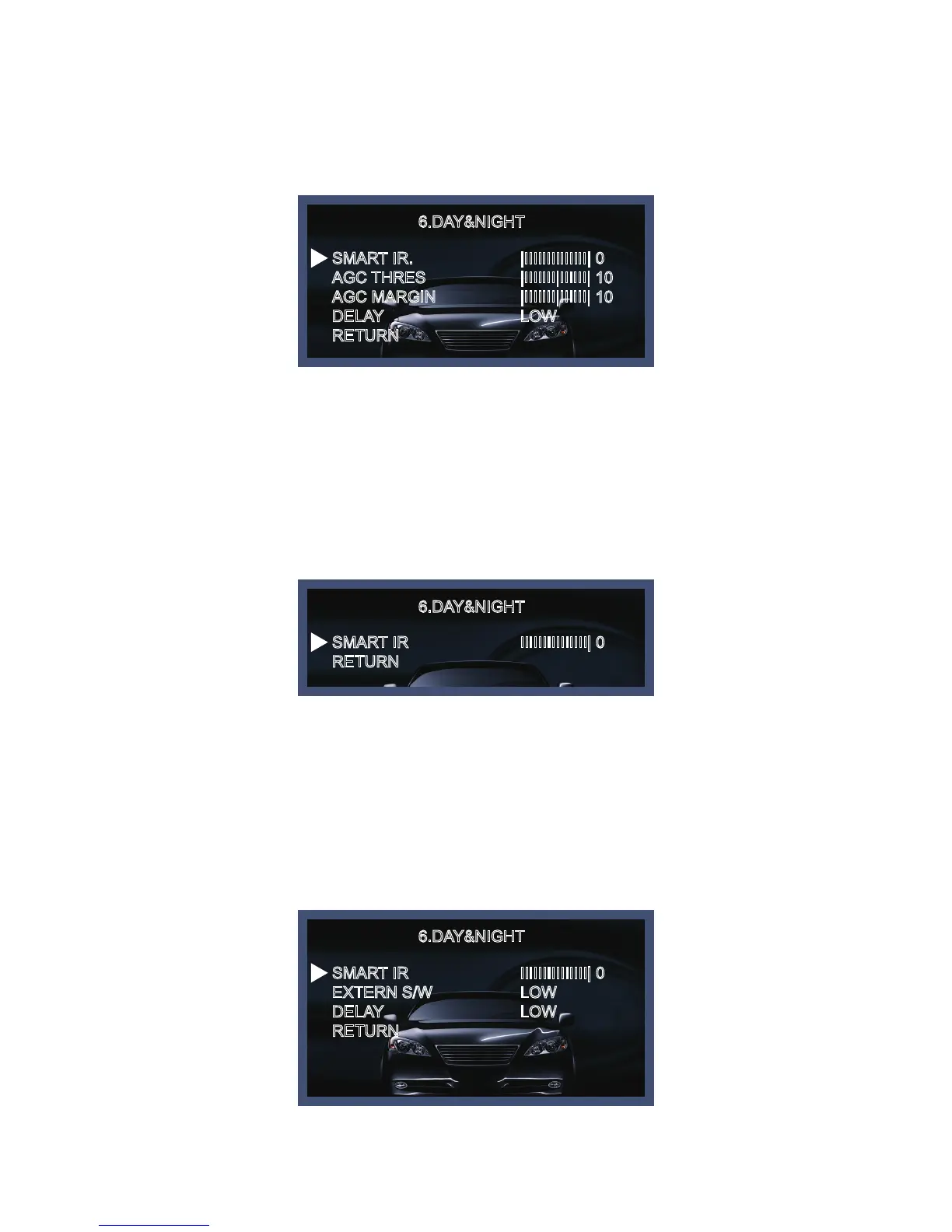

6.DAY&NIGHT
6.DAY&NIGHT
6.DAY&NIGHT
SMART IR.
AGC THRES
AGC MARGIN
DELAY
RETURN
SMART IR
RETURN
SMART IR
EXTERN S/W
DELAY
RETURN
|IIIIIIIIIIIIII| 0
|IIIIIII|IIIIII| 10
|IIIIIII|IIIIII| 10
LOW
IIIIIIIIIIIIIII| 0
IIIIIIIIIIIIIII| 0
LOW
LOW
