Spectracom Corporation EPSILON Switch & Amplifier System E
User’s Manual
2-1
2
22
2 Features
FeaturesFeatures
Features
2.1
2.12.1
2.1 Main Power Supply
Main Power SupplyMain Power Supply
Main Power Supply
Main power connector CCE22 with ON/OFF switch.
Input voltage: 90 to 265 V / 48 to 63 Hz (60VA max.)
Fuses: 2 x 250 V – 1A TD (Time Delay)
Consumption: 18 W typical
Detection of power input presence on AC/DC converter — information available with remote
control software.
2.2
2.22.2
2.2 DC Power Supply
DC Power SupplyDC Power Supply
DC Power Supply
Input power (VDC): 20 to 72V
Consumption: < 50 W typical.
Protection against polarity inversion.
Protection against short-circuit: polyswitch ensures the isolation of the module in relation to the
DC power supply in the event of a short-circuit of the EPSILON’s power supply.
Detection of power input presence on AC/DC converter — information available with remote
control software.
Connector: DC POWER XLR 3 points pins male NEUTRIX reference NC3MDH
Pins settings:
Pin Number:
1 +VDC
2 -VDC
3 Earth Ground

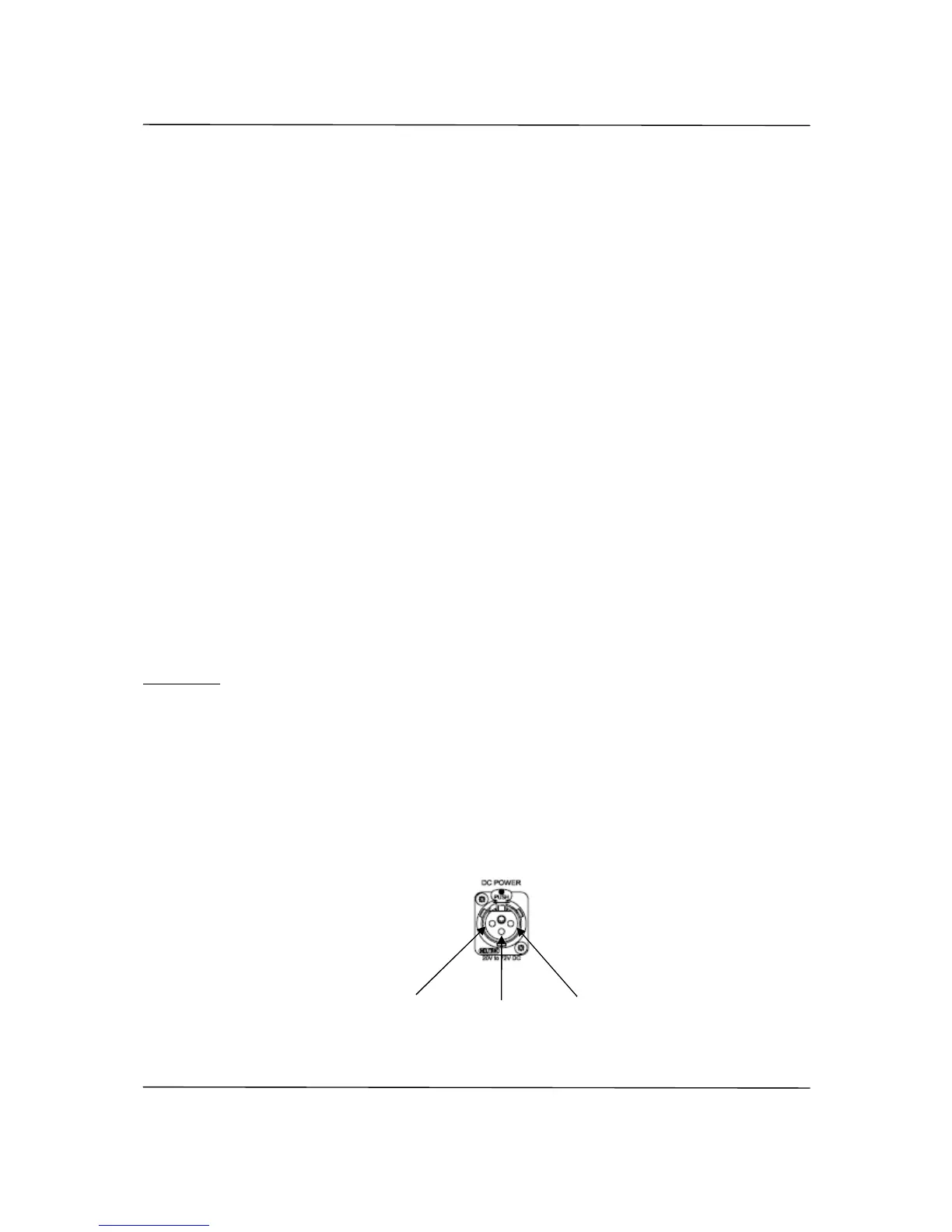

The power supply must be connected between pins 1 and 2, rear panel external view:
Pin 3
Eart h
Pin 2
-VDC
Pin 1
VDC
