Appendix E: Handheld Contact Probe
Operation
1) Connect one side of the supplied power/triggering cable to the handheld contact
probe power connector as shown above. The red dot on the cable connector
must align with the red dot on the contact probe body connector. In order to
remove the cable from the contact probe, grasp the connector by the knurled or
ribbed collar and pull directly away from the contact probe. Pulling the collar, and
only the collar, will disengage a latch in the connector and remove the connector
from the probe in one motion.

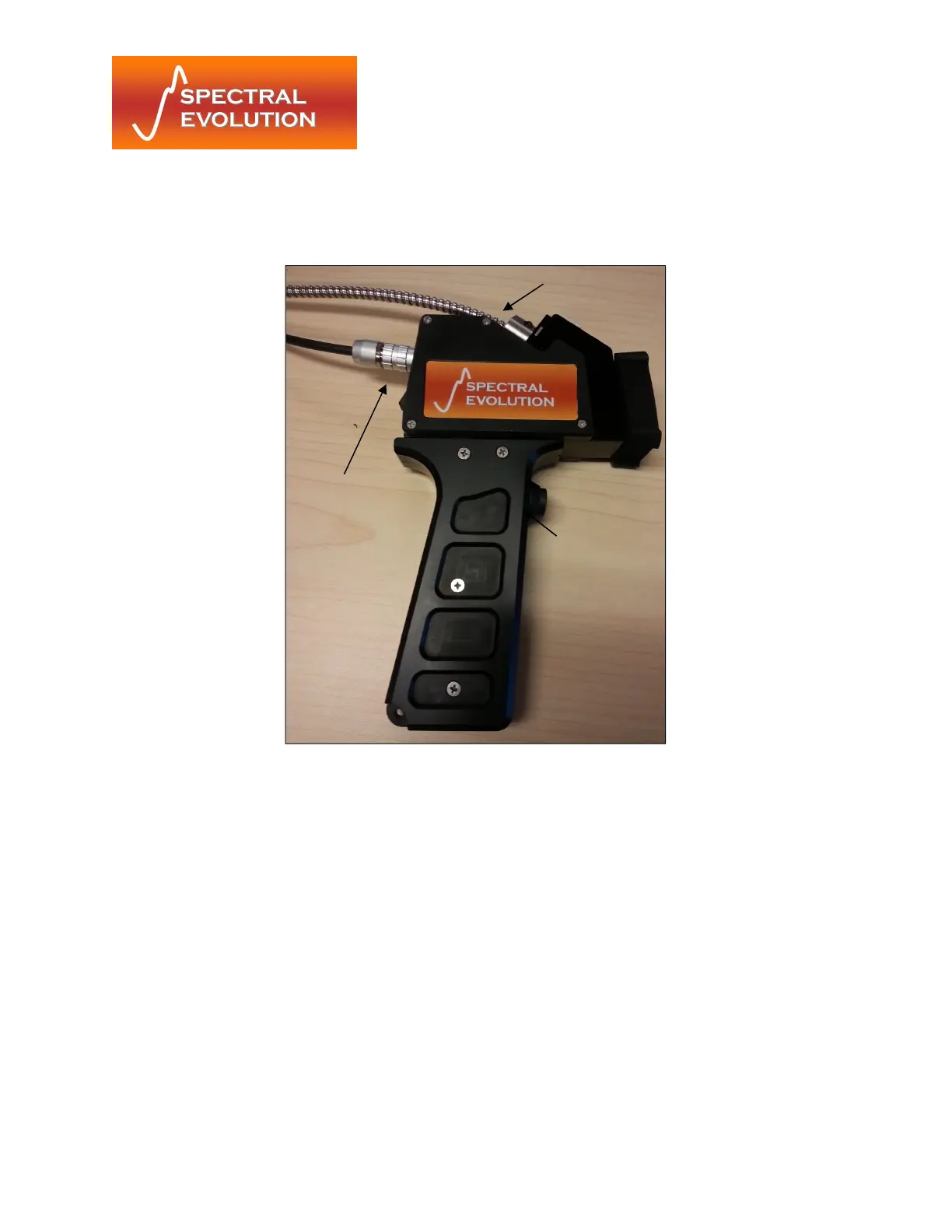

Power
Connector
Scan
trigger
Fiber Quick-
Disconnect
