2. For reflectance measurements (non-calibrated), be sure to select the “PROBE” preset
when using either the handheld or bench-top reflectance probe accessories.
If you have installed the fiber optic cable and are planning to use the handheld
reflectance probe, bench-top reflectance probe, or triggering pistol grip, attach the
supplied power cable to the instrument by locating the connector near the optical input
(see figure below).

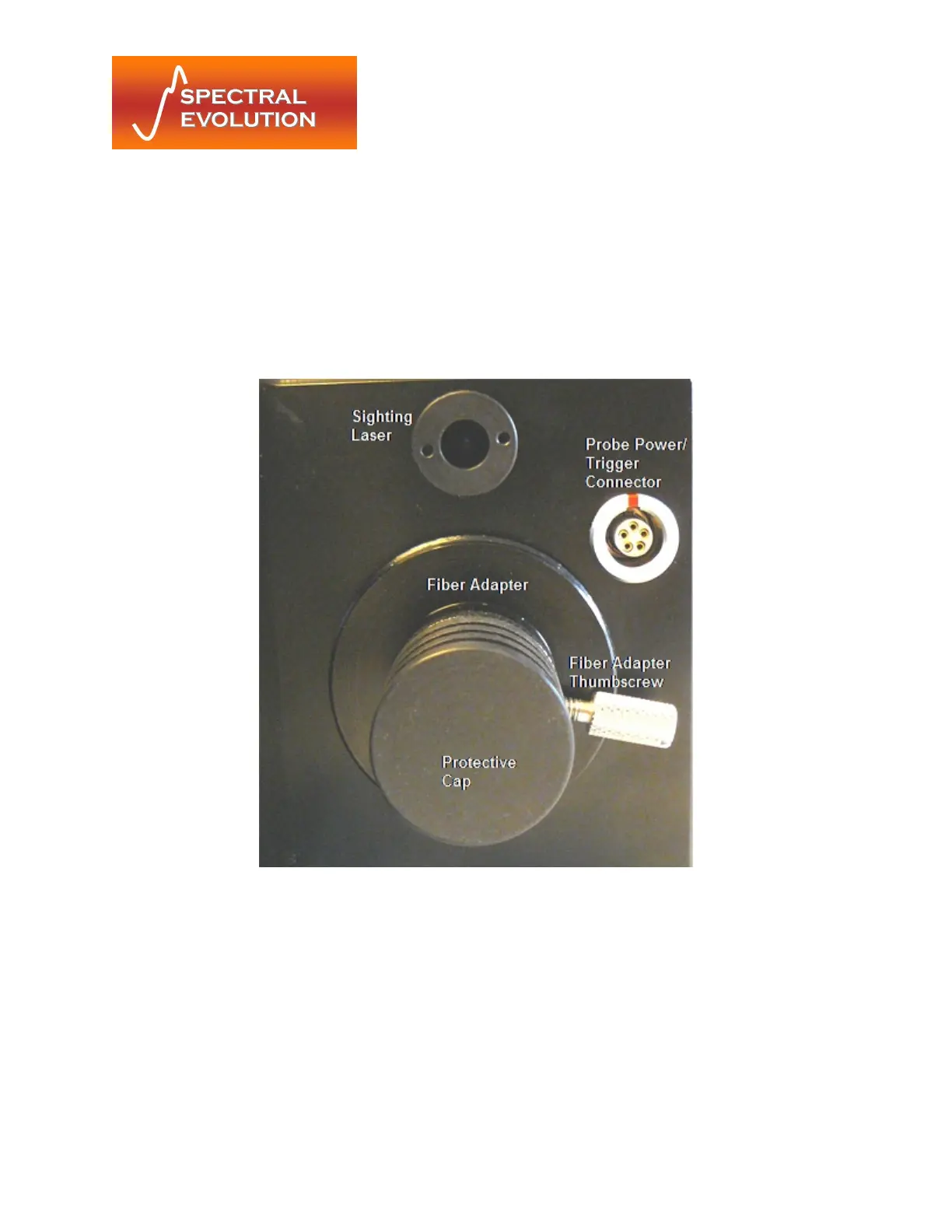

Figure 2: Detail of Optical Input/Laser/Probe Connector
For more details on using the reflectance probes, see the appropriate appendix
sections.
