2-12 XDS560v2 STM JTAG Emulator Technical Reference
2.3 XDS560v2 STM LEDs
The XDS560v2 STM has nine (9) Light Emitting Diodes (LEDs). These LEDs provide
the user with the status of the emulator. The position of each LED is shown in the

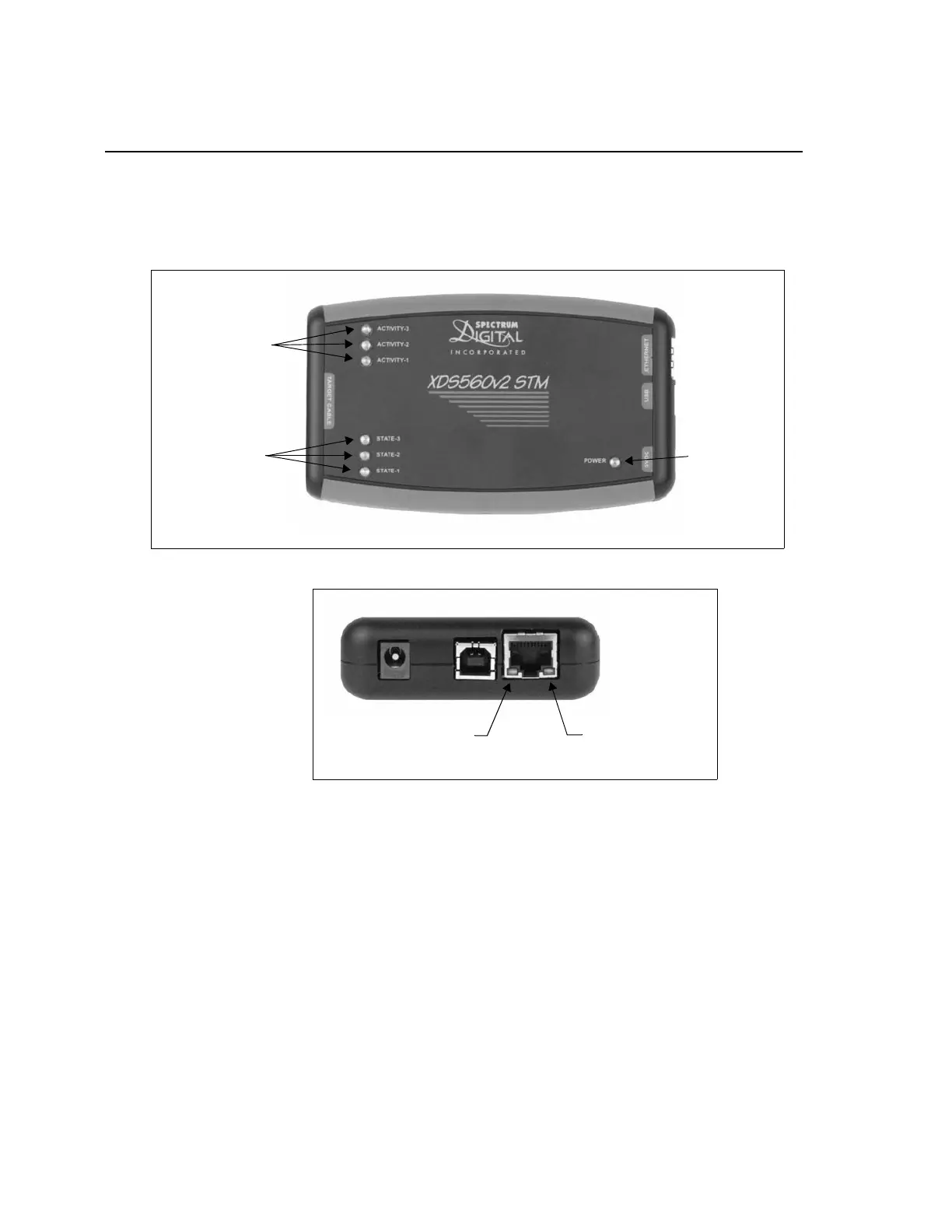

diagrams below.
Figure 2-12, XDS560v2 STM Case LEDs
Power LED
State LEDs
Activity LEDs
Figure 2-13, XDS560v2 STM Ethernet LEDs
Ethernet Green
Ethernet Yellow
