Spedal CL796L - Audio Cable Installation

English-04
1. Tear off the protective film of the
camera lens.
2.Peel off the 3M adhesive release
paper from the camera mount,
attach the camera to the windshield,
and press firmly to secure it.
3.Connect the device via the camera
connection cable.
4.Adjust the angle of the camera lens.
1. Tear off the protective film of the
camera lens.
2.Peel off the 3M adhesive release
paper from the camera mount, attach
the camera on car rear windshield,
and press firmly to secure it.
3.Connect the device via the camera
connection cable.
4. Adjust the angle of the camera lens.

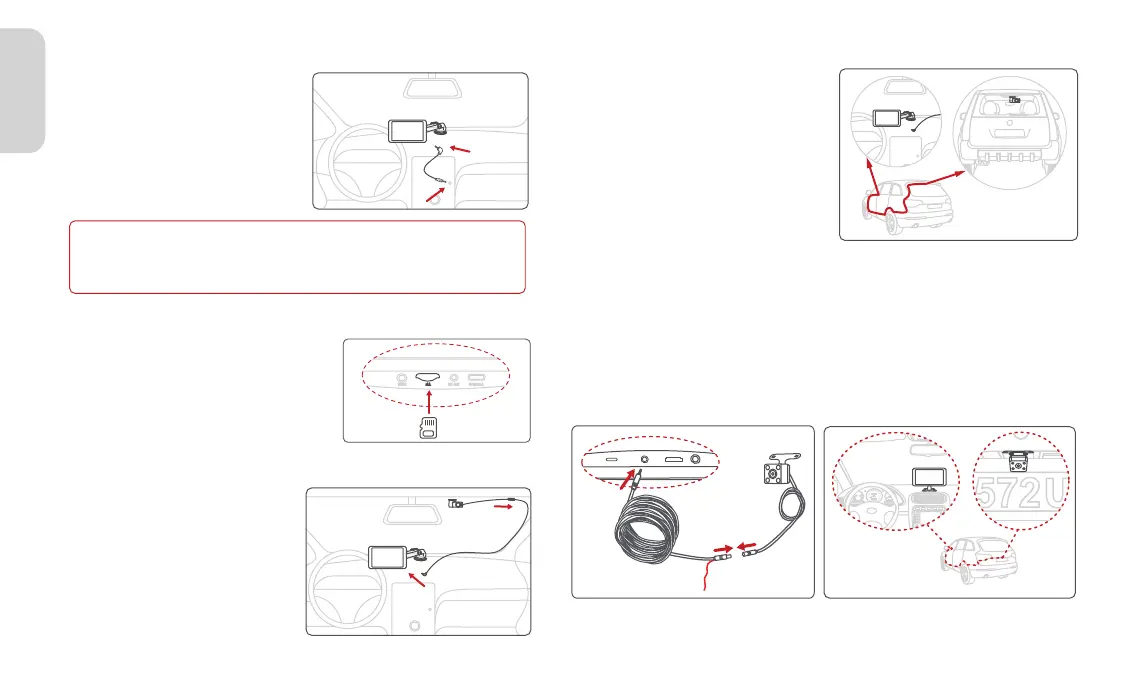

2.6 Audio Cable Installation
1. Insert the audio cable into the car
AUX port, and connect the other end
to the AUX OUT port of the device.
2. Set the car's audio input mode to
AUX audio input. After the connec-
tion is successful, you can play
music, navigation, calls and more
through your car's audio system.
2.7 TF Card Installation（Optional）
· Insert the TF card into the TF card slot.
· The self-provided TF card should meet
the following requirements: Class 10
or above, the capacity does not
exceed 128GB.
Note
Please confirm if your car supports AUX IN and note that the
location of the AUX may vary depending on the car model. Please
consult your manufacturer for more details.
AUX
TF
AV-IN
Type-C
Red wire to reversing
light postive pole
1. Connect the rear camera to the Rear camera cable, and insert the other
end into the rear camera port (AV-IN) of the device;
2. Use the rear camera bracket to fix the rear camera above the license
plate;
3. Please tear off the rear camera lens protective film before use;
4. Please adjust the lens to a suitable angle.Tighten the screws.
2.8 Camera - Inside front Windshield（Optional）
2.8.1 Camera - Inside Rear Windshield（Optional）
2.8.2 Rear Camera（Optional）
