SpeeCo SplitMaster S40123300 - Hydraulic Connections and Final Assembly; Replacement Parts Guide; Tank and Engine Assembly Parts

Page 9
STEP 5: Connecttheendofthe1/2”IDx44”hydraulicpressurehose(1)comingfromthettingonthepumptothe 
 ttingonthevalve.Seeillustrationsbelow.
STEP 6: Slideonehoseclampontheendofthe3/4”x44”hydraulicreturnhose(3)thatcomesfromthettingonthe 
 lter.Thenconnectthehosetothettingonthevalve.Seeillustrationsbelow.
Area of
Detail
ITEM NO. DESCRIPTION QTY.
1 1/2” x 44” Pressure Hose 1
2 Worm Gear Clamp 3
3 3/4” x 44” Return Hose 1
4 Auto-Return Valve 1
View from Top

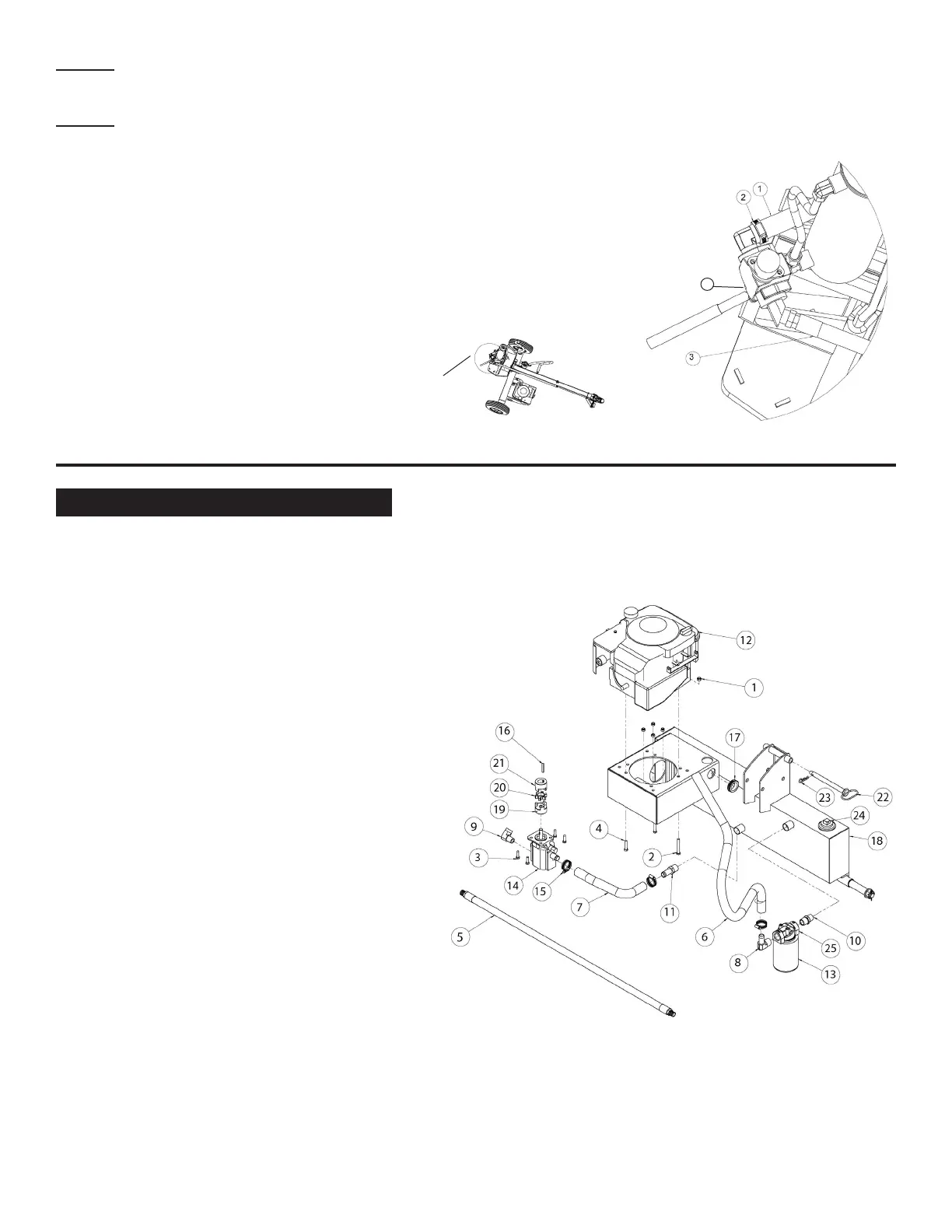

TANK/ENGINE ASSEMBLY BREAKDOWN
ITEM NO. PART NO. DESCRIPTION QTY.
1 O/L 5/16”-18 UNC Nylock Nut 7
2 O/L 5/16” x 2-1/2” GR 5 Hex Bolt 1
3 O/L 5/16” x 1 GR 5 Hex Bolt 4
4 O/L 5/16” x 1-1/2” GR 5 Hex Bolt 2
5 S39024600 1/2” x 44” Hydraulic Pressure Hose 1
6 S39025200 44” Return Hose 1
7 S39026800 3/4” x 12” Suction Hose 1
8 S39032000 3/4” NPT x 3/4” Tube Fitting 1
9 S39034100 1/2’” Street Elbow 1
10 S39034900 3/4” Hex Nipple 1
11 S39038300 Straight Pipe Fitting; 3/4” NPT to
3/4” ID Tube 1
12 S39052900 190cc Briggs & Stratton Engine 1
S390529C0 190cc Briggs & Stratton Engine (CA) 1
13 S390601A0 Filter Element 1
14 S390705B0 11 GPM Pump 1
15 S39031600 Worm Gear Clamp 3
16 S40032100 3/16” x 1-1/2” Square Key 1
17 S40117400 Grommet 1
18 S401102R0 Tank 1
19 N/A* Jaw Coupler, 1/2” Bore 1
20 N/A* Rubber Spider 1
21 N/A* Jaw Coupler, 7/8” Bore 1
22 S071022WC Pivot Pin 1
23 S07092400 1/2”-3/4” Hairpin Cotter 1
24 S3903750 Breather Cap/Dip Stick 1
25 S390604B Filter Base 1
O/L - Obtain locally. Common fasteners available through hardware and
farm stores.
*Available as complete coupler assembly only (includes item number 19,
20 and 21). Part No. S40083700.
