SpeeCo SplitMaster S40123300 - Beam, Tongue, and Wheel Parts

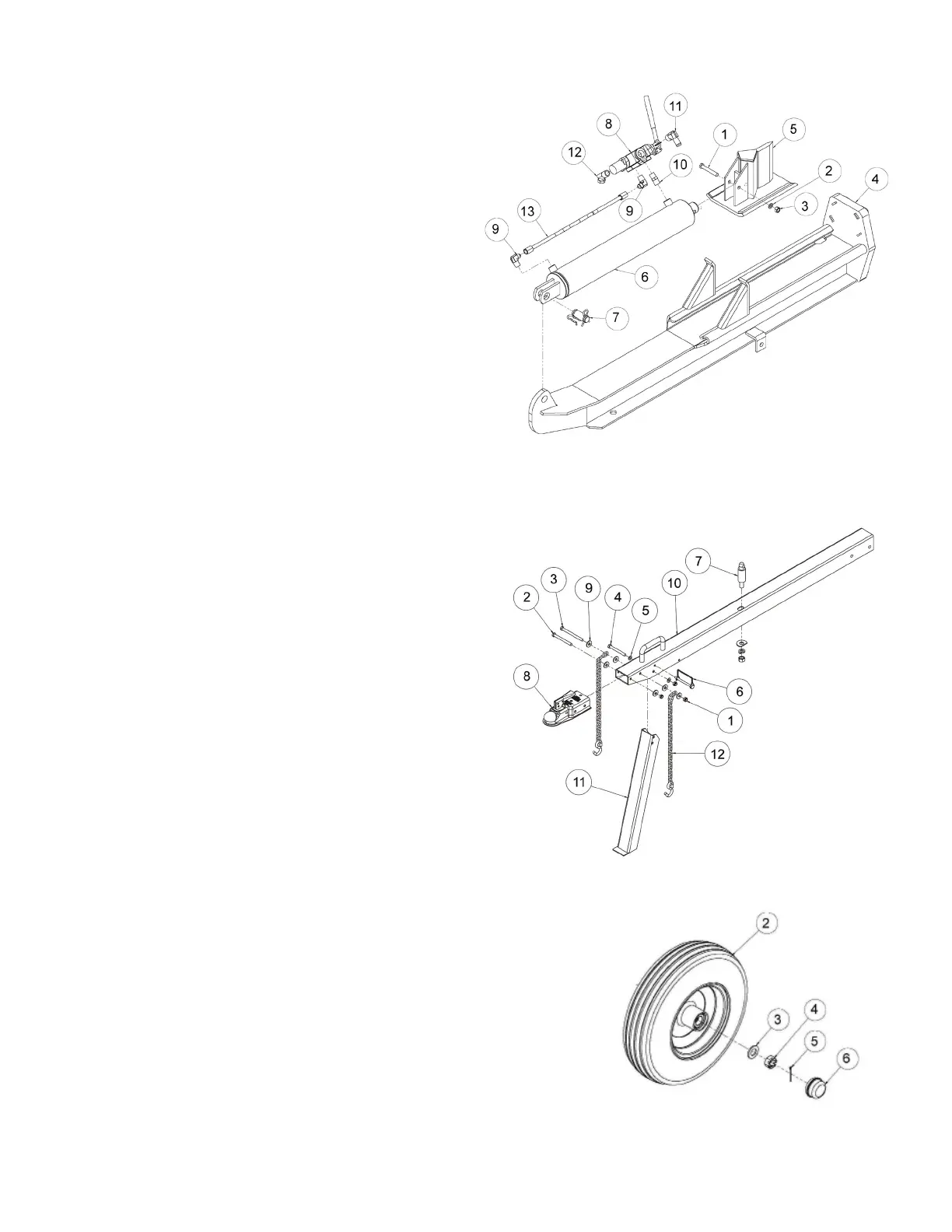

TONGUE ASSEMBLY BREAKDOWN
BEAM ASSEMBLY BREAKDOWN
ITEM NO. PART NO. DESCRIPTION QTY.
1 O/L 1/2” X 3-1/4” GR5 Hex Cap Bolt 1
2 O/L 1/2” Regular Lock Washer 1
3 O/L 1/2” Hex Nut 1
4 S401411R0 Beam 1
5 S40141700 Wedge 1
6 S390118BC 4” Cylinder 1
7 S07073100 Cylinder Pin 1
8 S390406SC Valve 1
9 S39034700 1/2” Pipe to Steel Tube Fitting 2
10 S39034300 1/2” NPT Nipple 1
11 S39032000 3/4” NPT x 3/4” Tube Fitting 1
12 S39039000 45° Fitting, 3/4” Male, 1/2” Female 1
13 S39034600 1/2” Steel Tube 1
S39044400 Valve Handle Repair Kit (not shown) 1
O/L - Obtain locally. Common fasteners available through hardware
and farm stores.
Page 10
ITEM NO. PART NO. DESCRIPTION QTY.
1 O/L M10 x 1.5 Nylock Nut 3
2 O/L M10 x 1.5 x 100mm GR 5 Bolt 1
3 O/L M10 x 1.5 x 120mm GR 5 Bolt 1
4 O/L M10 x 1.5 x 90mm GR 5 Bolt 1
5 O/L M10 Flat Washer, Narrow 2
6 S07095800 5/16” Square Lock Pin 1
7 S07080900 Stabilizer Pin Assembly 1
8 S40034600 Hitch Ball Assembly 1
9 O/L M10 Flat Washer 6
10 S40126300 Tongue 1
11 S40126000 Ground Stand 1
12 S40032300 20 Link Chain with Hook 2
O/L - Obtain locally. Common fasteners available through hardware
and farm stores.
ITEM NO. PART NO. DESCRIPTION
2 S400312B0 Tire & Wheel Assembly
3 O/L 3/4” Light Flat Washer
4 S17012000 3/4” Slotted Nut
5 O/L 1/8” x 1-1/2” Cotter Pin
6 S40032200 Hub Cap
- S40030900 Replacement Wheel Bearing Kit (not shown)
O/L- Obtain locally. Common fasteners available through hardware and farm stores.
WHEEL REPLACEMENT PARTS
Note: Replacement hardware kit for this log splitter is part number S40115500.
