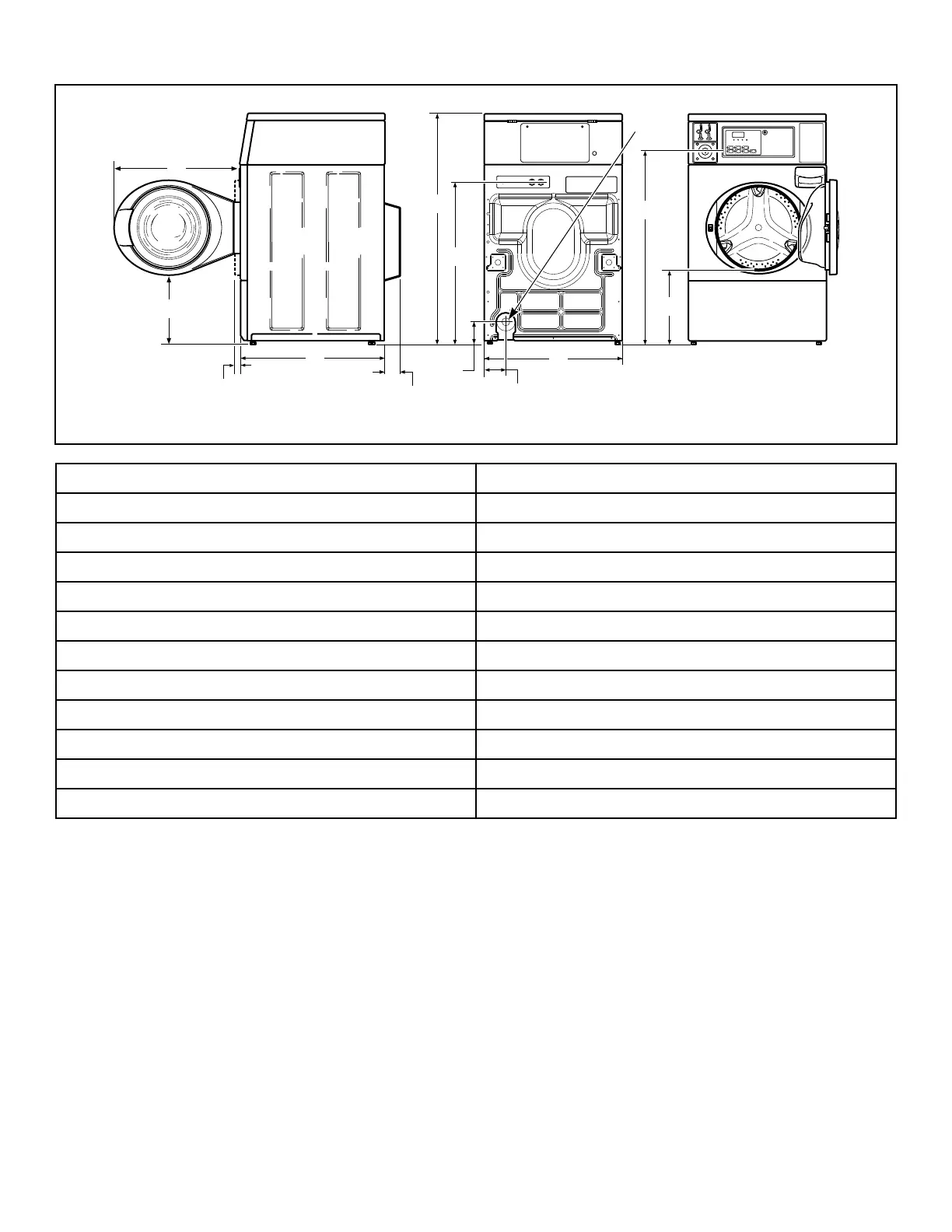

Models With Gravity Drain
FLW2334N_SVG
J
K
L
I
H
G
F
E
D
1
C
B
A
1. 38 mm [1.5 in.] Inside Diameter; 47 mm [1.86 in.] Outside Diameter
A 610 mm [24 in.]
B 1126 mm [44.34 in.]
C 813 mm [32 in.]
D 938 mm [36.94 in.]
E 371 mm [14.6 in.]
F 683 mm [26.875 in.]
G 107 mm [4.2 in.]
H 104 mm [4.1 in.]
I 52 mm [2.04 in.]
J 704 mm [27.73 in.]
K (with door closed) 40 mm [1.59 in.]
L 333 mm [13.1 in.]
