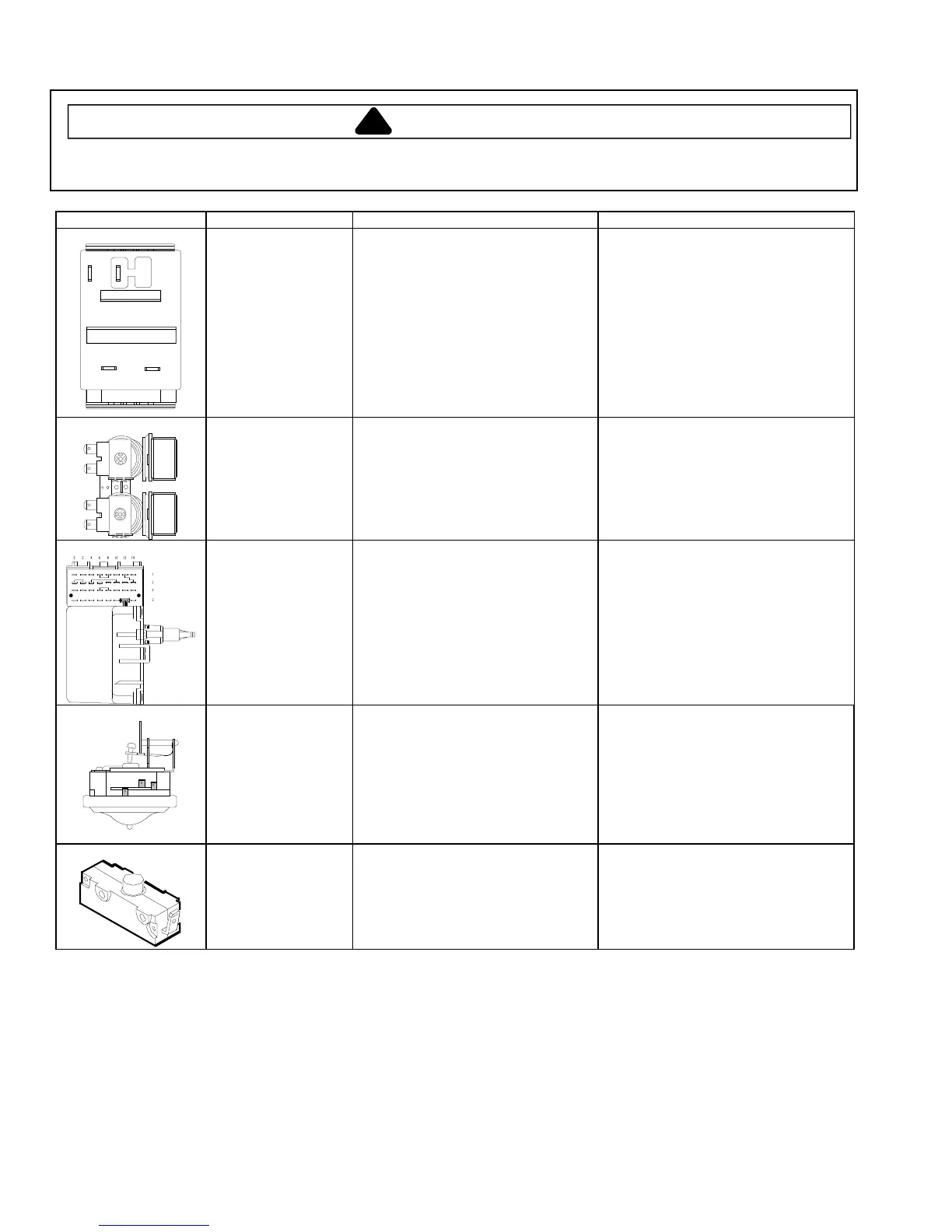

Component Testing Information
!
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless
testing requires it.
RT3100015 Rev. 0 August 20002
Illustration Component Test Procedure Results
40046601
L1
L2
2
1
Temperature switch Disconnect wires from component to
properly measure the resistance of the
component.
Place switch in the following positions
and measure across the terminals
below:
Hot / Cold L1-2

Warm / Warm L1-1, L1-2, L2-2
L2-1, L2-L1, 1-2

Warm / Cold L1-1, L1-2, 1-2

Cold / Cold L1-1

>1
Ω
>1
Ω
>1
Ω
>1
Ω
40097701 Mixing valve Measure resistance of terminals on
each valve.
Resistance across each valve.
Approximately 1000
Ω ±
10%
40073901 Timer Verify input and output voltage is
present.
Verify wiring is correctly connected to
the timer.
See timing sequence chart for functional
description of the component.
40055101
1
2
3
Pressure switch Do not disconnect the pressure hose
from pressure switch to perform
measurements.
Measure resistance across the
following terminals on the pressure
switch:
Terminal 1 to 2
Terminal 1 to 3
Refer to wiring diagram/schematic for
correct contacts.
Air pressure that actuates switch is
determined by the water level of the
tub.
Continuity (no pressure)
Continuity (pressure)
40035001
Lid switch
−
SPST
Disconnect wire terminals from switch.
Test terminals with switch closed.
Test terminals with switch open.
Continuity >1
Ω
Infinite 1 M
Ω
