SpeedyBee F405 Mini BLS - FC & ESC Connection

FC & ESC Connection
4/14

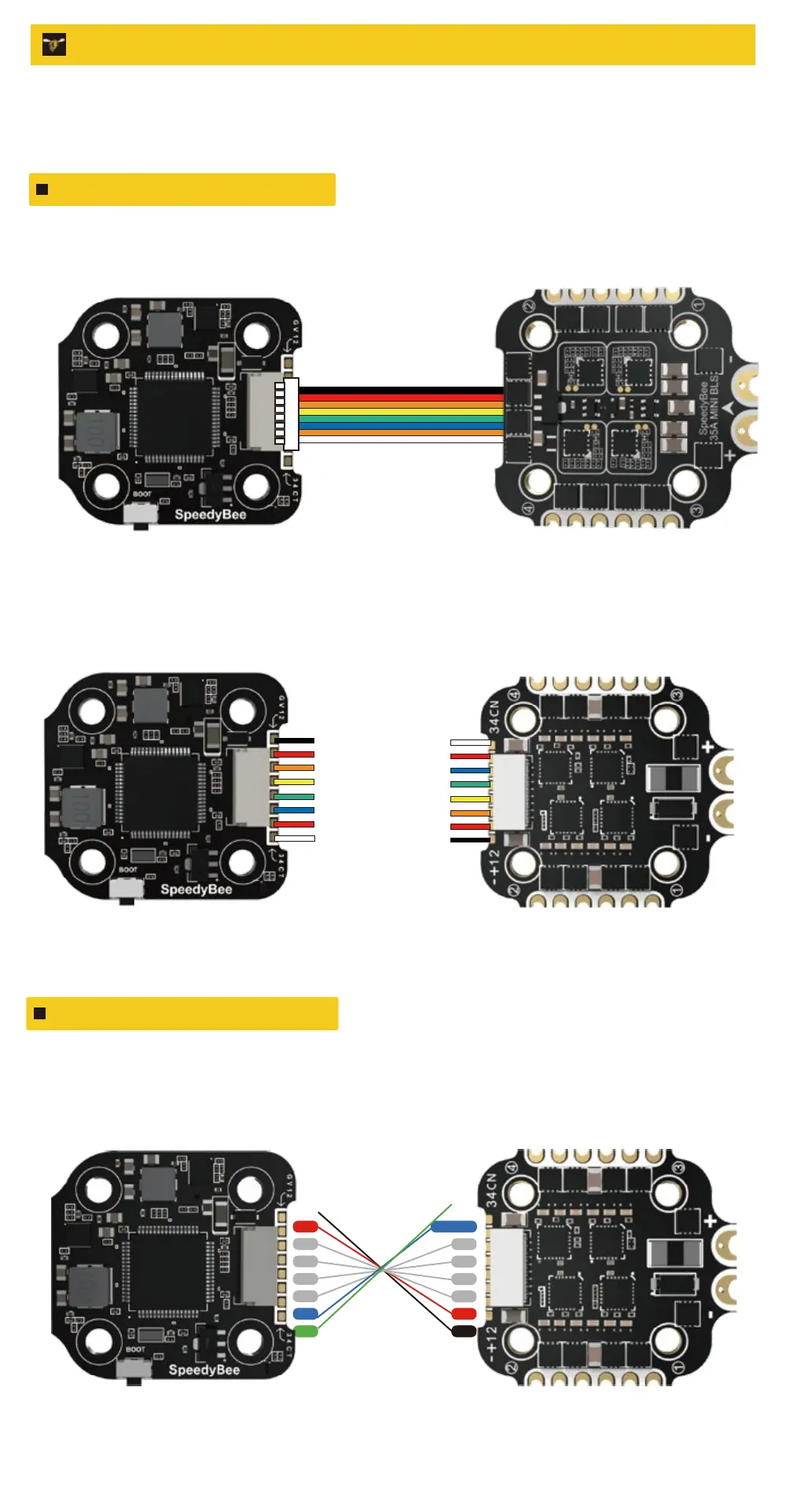

Use the 8-pin cable in the package to connect the FC and the ESC. Or solder
8 wires directly to the 8 pads on each end.
Use any end of the 8-pin JST cable to connect the FC to the ESC.
Method 1 - Using 8-pin cable
Solder 8 wires to the 8 pads on each end referring to the pad definition below.
Method 2 - Direct soldering
F405 Mini Flight Controller BLS 35A Mini V2 4-in-1 ESC
GND/-
BAT/+
M1
M2
M3
M4
CURRENT
N/A
N/A
CURRENT
M4
M3
M2
M1
BAT/+
GND/-
F405 Mini Flight Controller BLS 35A Mini V2 4-in-1 ESC
GND
BAT
M1
M2
M3
M4
CUR
TEL
N
S4
S3
S2
S1
VBTA
GND
CURRENT
