FC & ESC Connection

4/14

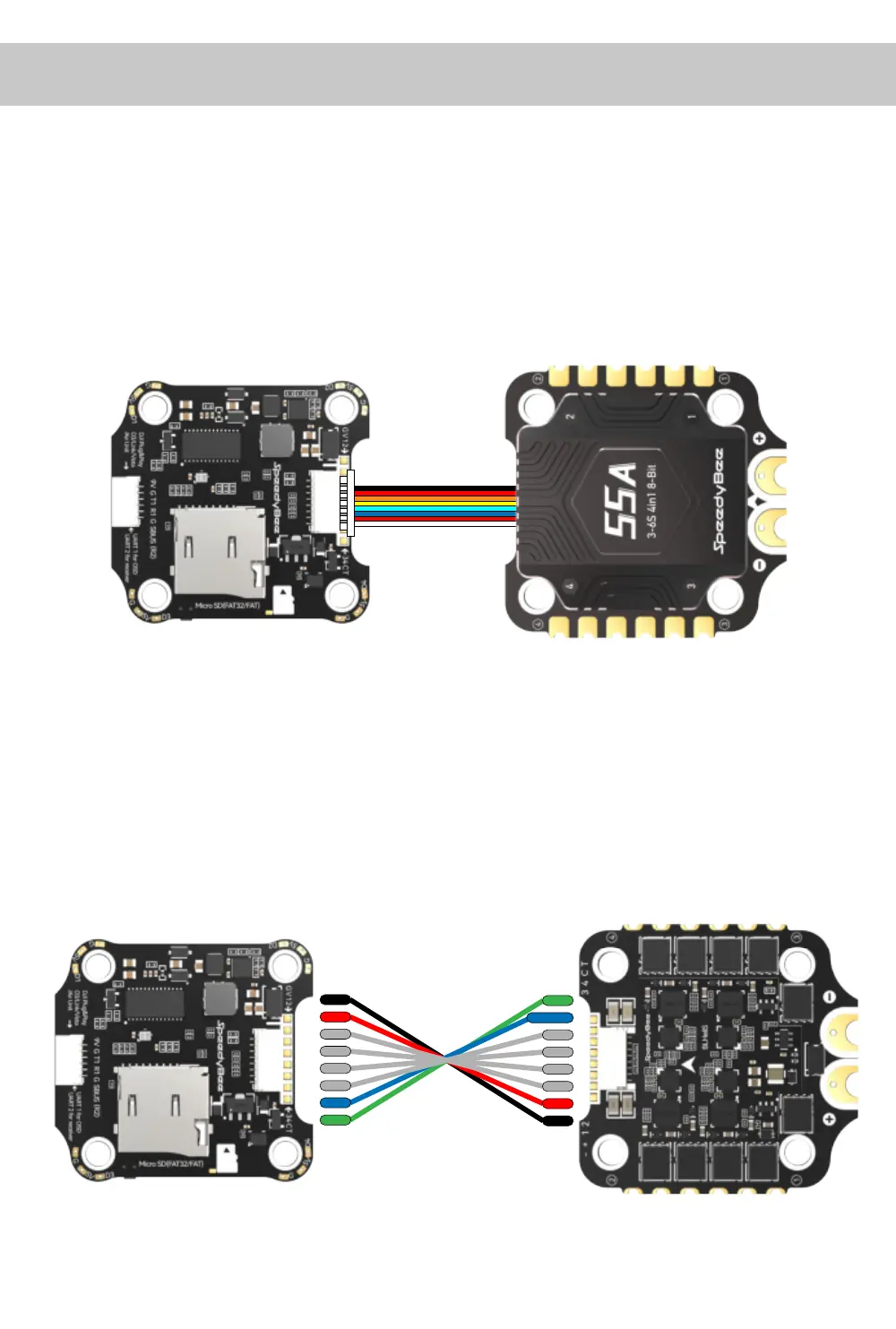

Method 1 - Using 8-pin cable

Use the 8-pin cable in the package to connect the FC and the ESC.

Or solder 8 wires directly to the 8 pads on each end.

Use any end of the 8-pin JST cable to connect the FC to the ESC.

Solder 8 wires to the 8 pads on each end referring to the

pad denition below.

Method 2 - Direct soldering

BLS 55A 4-in-1 ESC

F405 V4 Flight Controller

BAT

GND

CUR

TEL

VBAT

GND

CURRENT

N/A

F405 V4 Flight Controller BLS 55A 4-in-1 ESC
