The provided document is an installation guideline for the "Master 5 V2" drone frame, focusing on the assembly process rather than a comprehensive device description. Based on the installation steps, here's a description of the device:

The Master 5 V2 is a drone frame designed for FPV (First Person View) racing and freestyle flying, emphasizing a robust and modular construction. It features a predominantly black carbon fiber frame with distinctive yellow TPU (Thermoplastic Polyurethane) parts for protection and mounting. The frame is designed to accommodate various electronic components, including a flight controller, ESC (Electronic Speed Controller), motors, camera, VTX (Video Transmitter), GPS module, and an O3 Air Unit.

Function Description:

The Master 5 V2 serves as the structural backbone for a DIY FPV drone. Its primary function is to securely house and protect all necessary electronic components while providing a lightweight yet durable platform for flight. The modular design allows for customization and easy replacement of parts, catering to both experienced builders and those new to FPV drones. The frame's anti-vibration module aims to reduce vibrations transmitted to sensitive electronics, improving flight performance and video quality.

Important Technical Specifications (derived from installation steps):

Frame Material: Primarily carbon fiber for the main plates and arms, combined with TPU for protective and mounting parts.
Fasteners:
- M35, M23 screws for CNC camera mount and side plates.
- M2.5*8 screws for multi-function antenna base.
- M3*23 standoff for O3 Air Unit antenna base.
- M314 and M311 screws for arm installation.
- M2*8 screws for middle plate installation.
- M35, M2.56, M3*6 screws for combining frame parts and antenna base.
- M3*6 screws for rear top plate and battery anti-slip silicone.
- M38mm and M310mm default screws for arm foot mounts.
- M1.6*8 screws for O3 Air Unit installation with honeycomb heat sink.
GPS Installation Base Size: 18188mm.
Battery Anti-slip Silicone Thickness: 2.5mm.
Bottom Protection Silicone Thickness: 0.5mm.
Recommended Motor Wire Lengths:
- Inner motor wire: 110mm
- Outer motor wire: 93mm
Recommended ESC Power Cable Length: Approximately 100mm (adjustable based on battery).
Standoffs: Includes 7075 standoffs for structural rigidity.

Usage Features:

Modular Design: The frame is assembled from distinct parts (front top plate, camera side plates, arms, middle plate, rear top plate, antenna bases, stack protector), allowing for easy assembly, disassembly, and component replacement.
Camera Mounting: Features a CNC camera mount and side plates, providing a secure and adjustable platform for FPV cameras.
Multi-function Antenna Base: Designed to accommodate various VTX antennas (including SMA) and a GPS module. It also supports the O3 Air Unit antenna.
Anti-vibration Module: Integrated into the frame structure to minimize vibrations, which is crucial for stable flight and clear video feed.
Component Protection: TPU parts are used for arm foot mounts, antenna bases, and a stack protector, offering impact resistance and cushioning for sensitive electronics.
O3 Air Unit Compatibility: Specifically designed with a mounting method for the O3 Air Unit, including a dedicated honeycomb heat sink for efficient cooling.
ESC Installation Flexibility: Recommends installing the ESC in reverse horizontally by 180 degrees, with a note to redefine motor directions in the flight controller software.
Cable Management: Provides suggestions for main power cable placement and specific motor wire lengths for optimal setup.
Buzzer and Capacitor Placement: Dedicated areas are indicated for mounting a capacitor and buzzer, essential for power filtering and drone recovery.

Maintenance Features:

Replaceable Parts: The modular nature of the frame means individual components like arms, top plates, or TPU parts can be replaced if damaged, extending the lifespan of the drone.
Standardized Fasteners: Utilizes common screw sizes (M2, M2.5, M3, M1.6) for assembly, making it easier to find replacement hardware.
Clear Installation Guidelines: The detailed step-by-step instructions with visual aids facilitate assembly and maintenance tasks.
QR Code for Guidance: Provides a QR code for an installation guide and the SpeedyBee App, offering accessible support and detailed instructions for users.

The Master 5 V2 frame is a comprehensive solution for building a high-performance FPV drone, offering a balance of durability, modularity, and compatibility with popular FPV components.

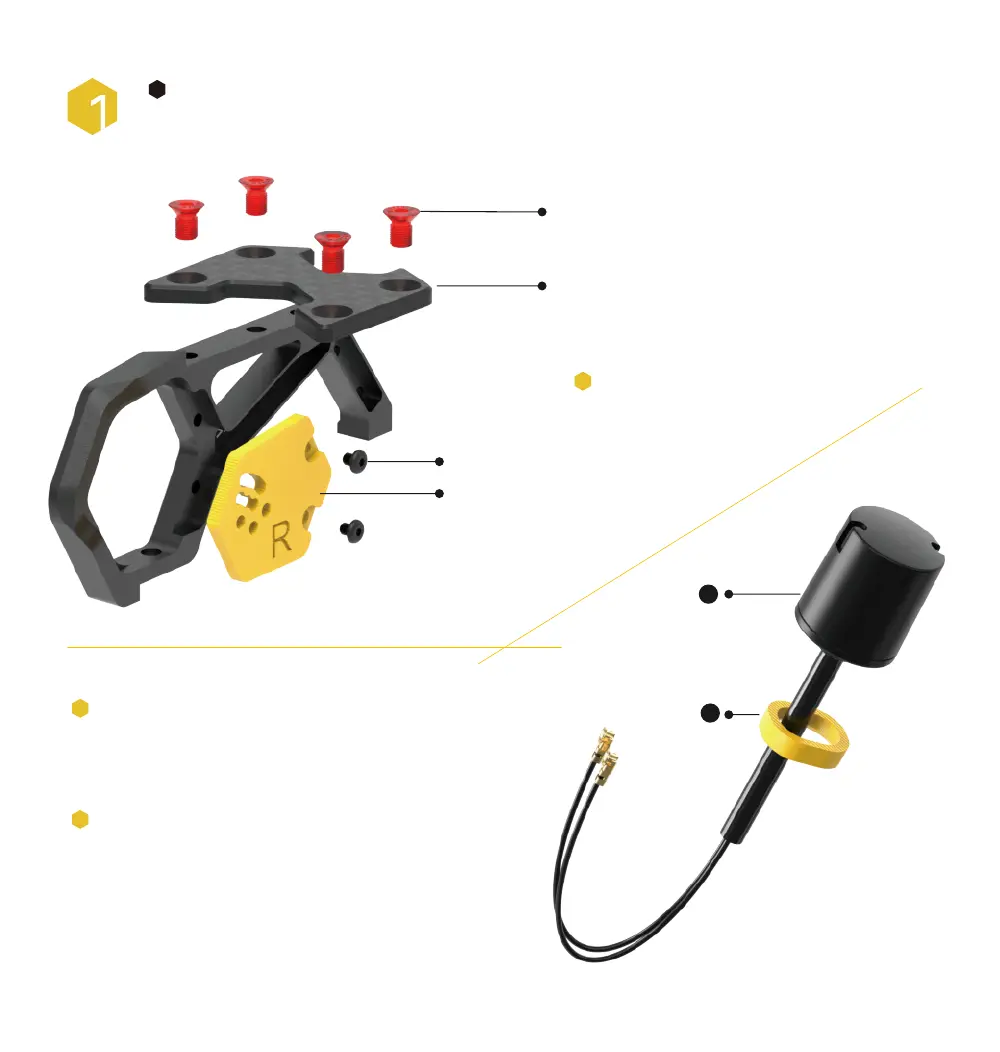

SpeedyBee Master 5 V2 - CNC Camera Mount and Side Plate Installation; Antenna Installation Sequence
