Spektrum AR7200BX - Antenna Polarization

EN
5

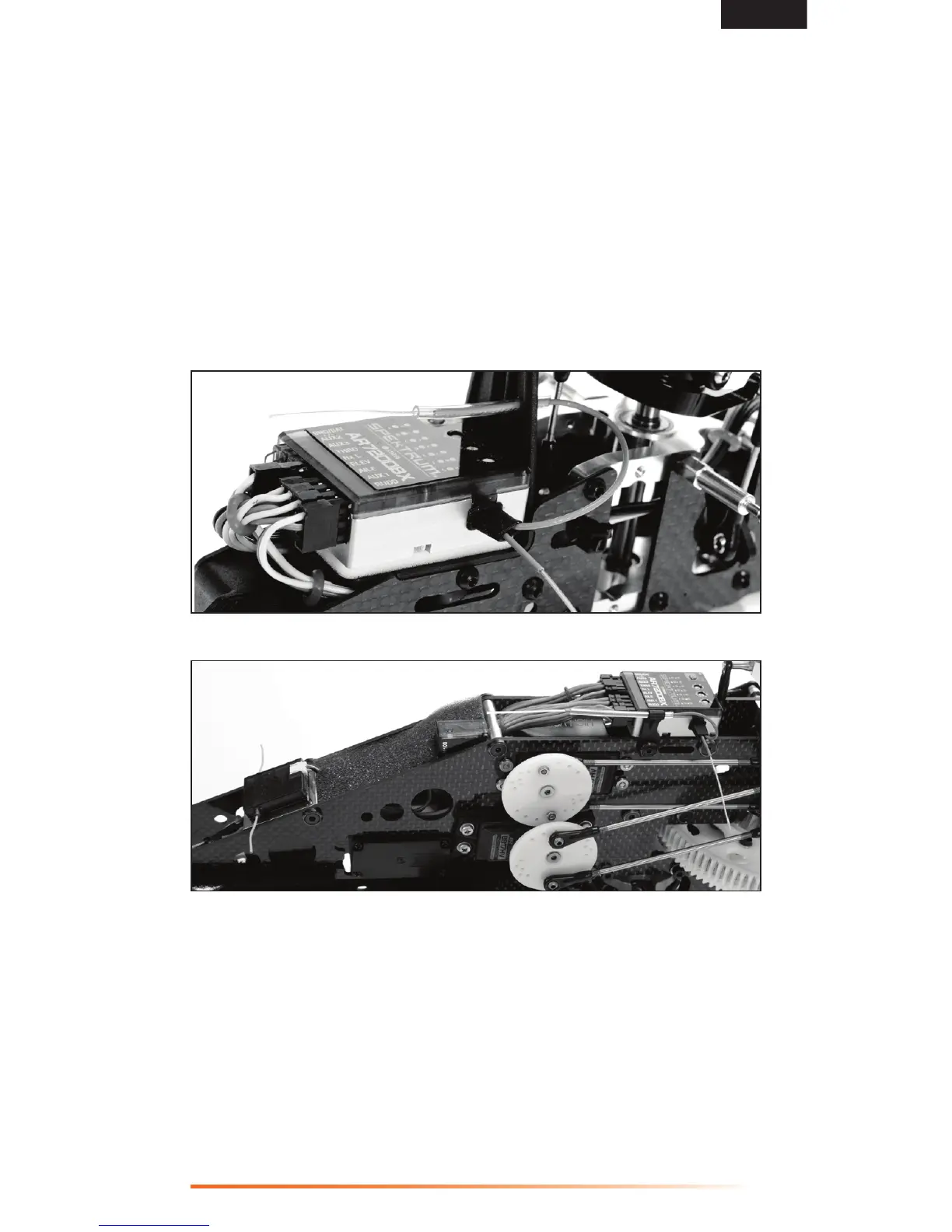

AR7200BX installed in a
450-size helicopter
AR7200BX installed
in a 90-size helicopter
with remote
Antenna Polarization
ForoptimumRFlinkperformance,mounttheantennasinanorientation
that allows for the best possible signal reception when the helicopter is in
all possible attitudes and positions. Orient the internal receiver antennas
perpendicular to each other (see Receiver Installation).
When using a DSMX remote receiver—Use double-sided foam tape to
mount the remote receiver so that the antenna is perpendicular to the longer
main receiver antenna. The remote receiver antenna must be at least 2 inches
away from the main receiver’s antenna. The AR7200BX is compatible with all
DSM2 and DSMX transmitters, even when using the optional DSMX remote
receiver.
