12 SPEKTRUM DX2S USER GUIDE
PresstheRollingSelectortoenterthehighlighted
channel’s travel function.
RotatingtheRollingSelectorwillnowadjustboththe
upper and lower values simultaneously. If you desire
toadjusttheupperorlowerdirectionsindependently
then move the corresponding channel’s wheel or throttle
trigger, and that value alone will be highlighted. For
example, turning the steering wheel to the right will
highlighttherightvalueonlyandsubsequentadjustment
will affect the right travel only.
Note: The DX2S features “sticky gooey.”
When the corresponding channel is moved
to the desired position and released, as
illustrated above, the value on that side
remains highlighted. Moving the channel
in the opposite direction will then highlight
the opposite direction’s value. This allows
convenientindependenttraveladjustments
without having to hold the wheel or trigger in
the desired position. To highlight both values
again after moving the control in one direction,
simply press the Rolling Selector twice with
the control centered and both values will be
highlighted.
To return to the main screen press and hold the Rolling
Selector for more than three seconds.
TRAVEL
TheTravelscreen(sometimesreferredtoastraveladjust
orendpoints)allowsindependenttraveladjustmentofthe
servo throw in each direction of both channels (steering
or throttle) or ESC on the throttle channel.
TO ACCESS THE TRAVEL FUNCTION
From the list screen rotate the Rolling Selector to
highlight the Travel function.
PresstheRollingSelectortoentertheTravelfunction.

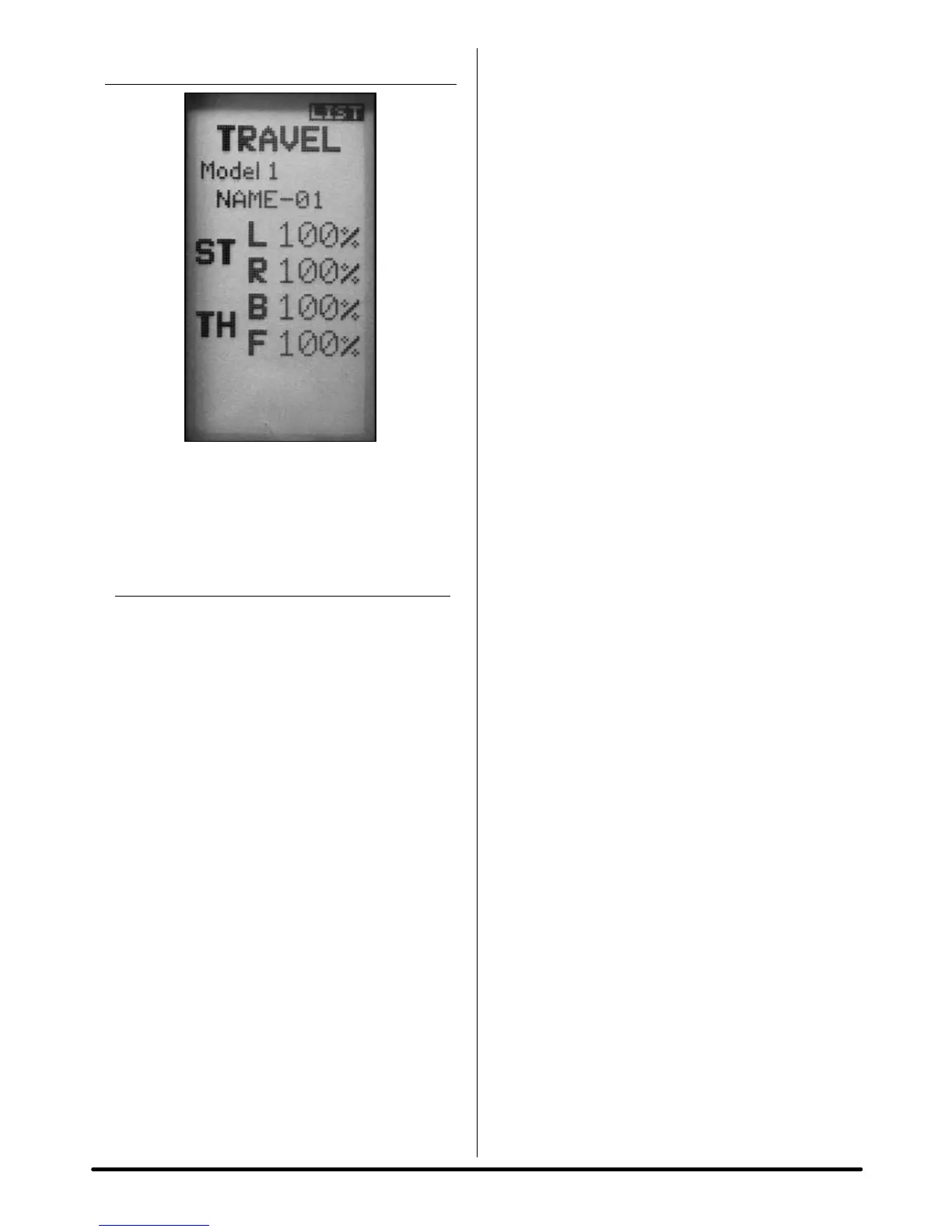

The Travel screen will be displayed as shown above.
Rotate the Rolling Selector and highlight the values
desirednexttothechannelthatyouwishtoadjust.
ST = Steering
TH = Throttle and brake
