SPEKTRUM DX6C • TRANSMITTER INSTRUCTION MANUAL
EN

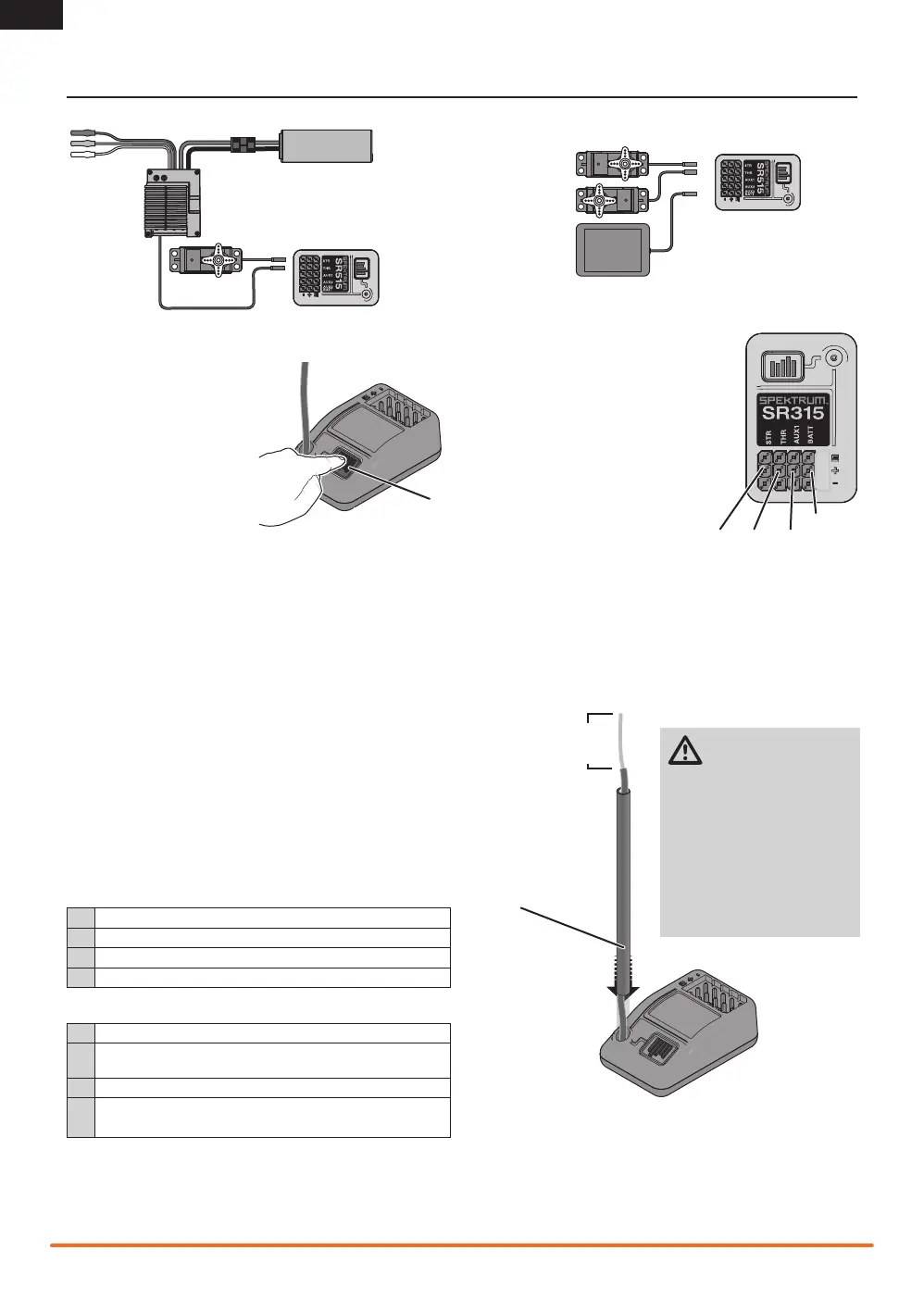

TYPICAL ELECTRIC VEHICLE INSTALLATION TYPICAL NITRO VEHICLE INSTALLATION
SPEKTRUM SR315 SPORT SURFACE RECEIVER
STR
THR AUX1
BATT
WARNING: Do not kink,
cut or damage the
antenna wire. The antenna is
made of a coaxial wire; if the
outer sheath becomes
damaged, the receiver will not
work properly. If the antenna is
damaged in any way, replace
the antenna before attempting
to use the receiver.
RECEIVER ANTENNA
The SR315 receiver features a coaxial antenna design for easy
installation in almost any model. Think of the last 1 inch (32mm)
on the tip of the antenna as the active portion of the antenna,
the coaxial portion leading up to it is just an extension. Install the
antenna so the active portion is positioned as high as possible in
the vehicle, and not “in the shadow” of any carbon fiber or metal.
Standard Mode
If loss of signal occurs,
SmartSafe™ technology
moves the throttle channel to its
designated failsafe position (low
throttle) that was set during binding.
All other channels hold their last
position. When the receiver detects
signal from the transmitter, normal
operation resumes.
Gas Mode
Preset failsafe is ideal for most
nitro/gas vehicles. With preset
failsafe, all channels go to their
preset failsafe positions if the
signal is lost, preventing an
out of control situation. When
the receiver detects signal
from the transmitter, normal
operation resumes.
Gas Mode
1 Push and Hold Bind Button
2
Power on Reciever, keep Bind button depressed until
binding is complete
3 Place transmitter in Bind Mode and finish Binding
4
When the LED turns solid, power off the reicever, and then
release the Bind Button
Standard Mode
1 Push and Hold Bind Button
2 Power on Reciever
3 Release Button after RX goes into Bind Mode (flashing LED)
4 Place transmitter in Bind Mode and finish Binding
FAILSAFE
Failsafe position is set during binding. In the unlikely event
that the radio link is lost during use, the receiver will drive all
channels to its pre-programmed failsafe position.
Bind Button
Active portion
of antenna
Antenna Tube Not
Included. Tube size
may vary, test for
proper fit.
BINDING
The SR315 receivers must
be bound to the transmitter
before they will operate.
Binding is the process
of teaching the receiver
the specific code of the
transmitter so it will only
connect to that specific
transmitter.
RECEIVER COMPATIBILITY
The SR315 receiver is compatible with
Spektrum DSM2
®
and DSMR
®
radio
control surface systems. Install the
receiver in the position recommended by
the vehicle’s manufacturer. Double-sided
tape or foam may be used to secure the
receiver in place.
The case of the receiver can accept an antenna tube directly, making
optimal antenna placement easy (antenna tube not included).
Battery
Battery
Throttle Servo
Steering Servo
Steering Servo
Receiver
Receiver
Electronic
Speed Control
To Motor
