Titmus V4 / Titmus V2
Maintenance of the Vision Screener (continued)

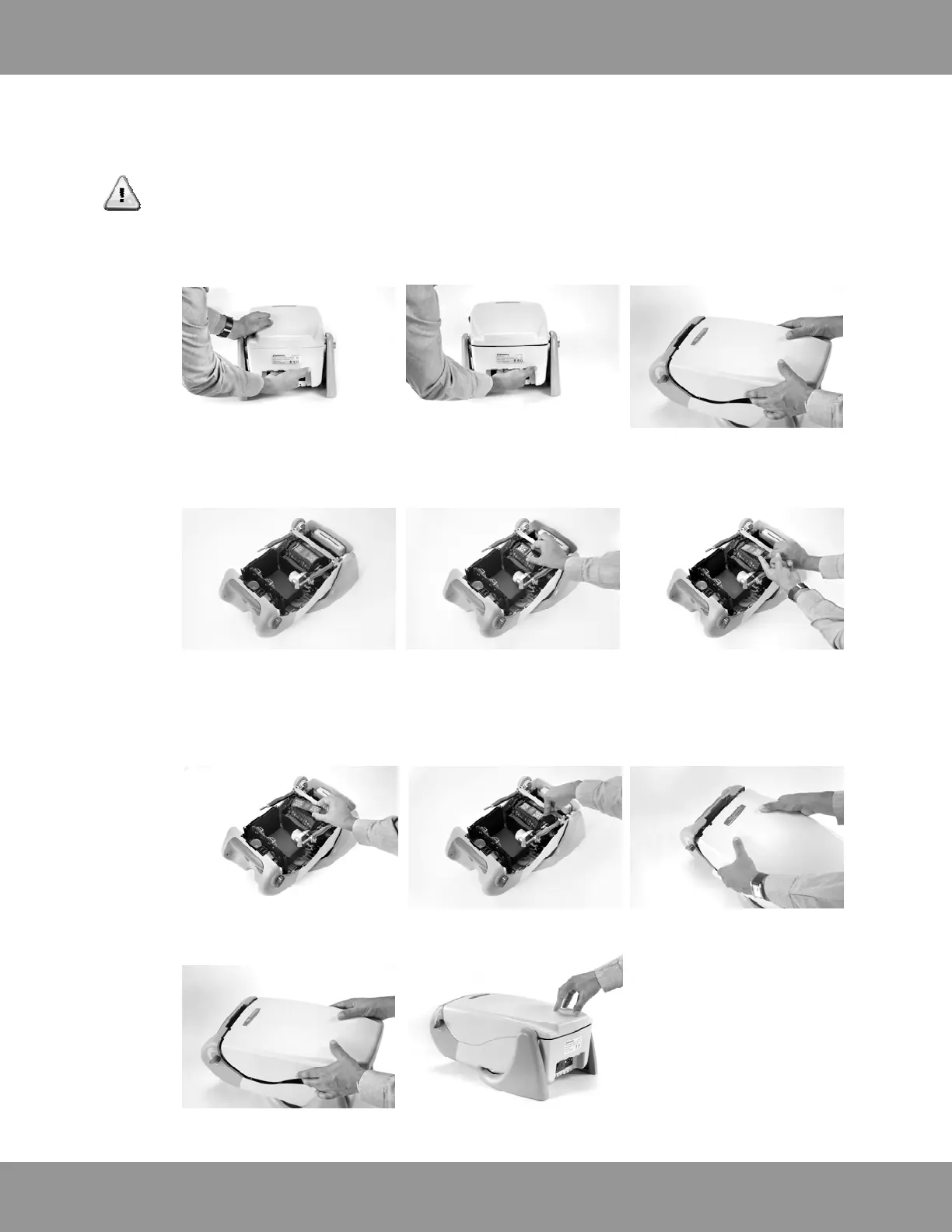

Changing Slides
CAUTION: FIRST UNPLUG THE INSTRUMENT.
1. Remove top cover by unlatching tabs at the back. To do this, reach into the back pocket and press on the tabs
inside. The top cover will pop open towards the back as shown in the image. Remove the top cover.
2. The slide drum will now be visible.
3. Roll the rubber ring at the center of the drum to the side.
4. Pull on the tab towards the gear side of the drum. This will cause the slide to pop up from one side.
5. Remove and replace with new slide.
6. Insert new slide with the arrow pointing in the direction of the other slides in the drum. Securely place into
slide frame, slide will snap into place.
7. Ensure that the rubber ring is at the center of the drum.
8. Put top cover in place ensuring that the tabs at the front of the unit are correctly positioned.
9. Snap top cover in place by pressing on the top. Ensure that the back of the top cover is correctly closed.
Page 19
