8 Repair Thermo E 200 / 320
804

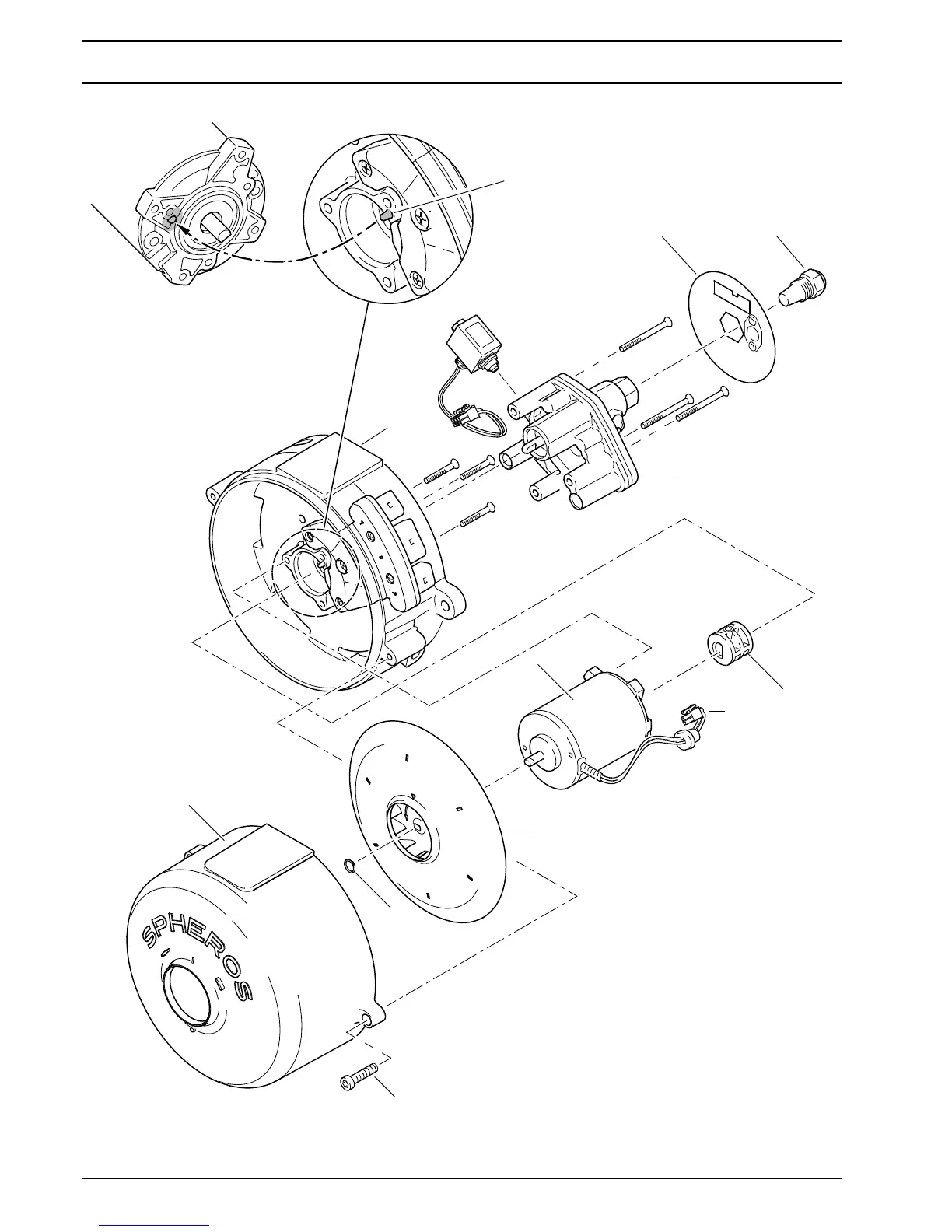

Fig. 803 Burner motor removal and installation
1 Hood
2 Screws (2)
3 Shaft circlip
4Fan wheel
5 Burner motor
6 Motor plug
7 Coupling with magnets
8 Burner housing
9 Fuel pump
10 Disc
11 Nozzle
3
4
5
7
1
2
8
6
9
10
11
Use this stud for
correct positioning
of the burner motor
