8 Repair Thermo E 200 / 320
806

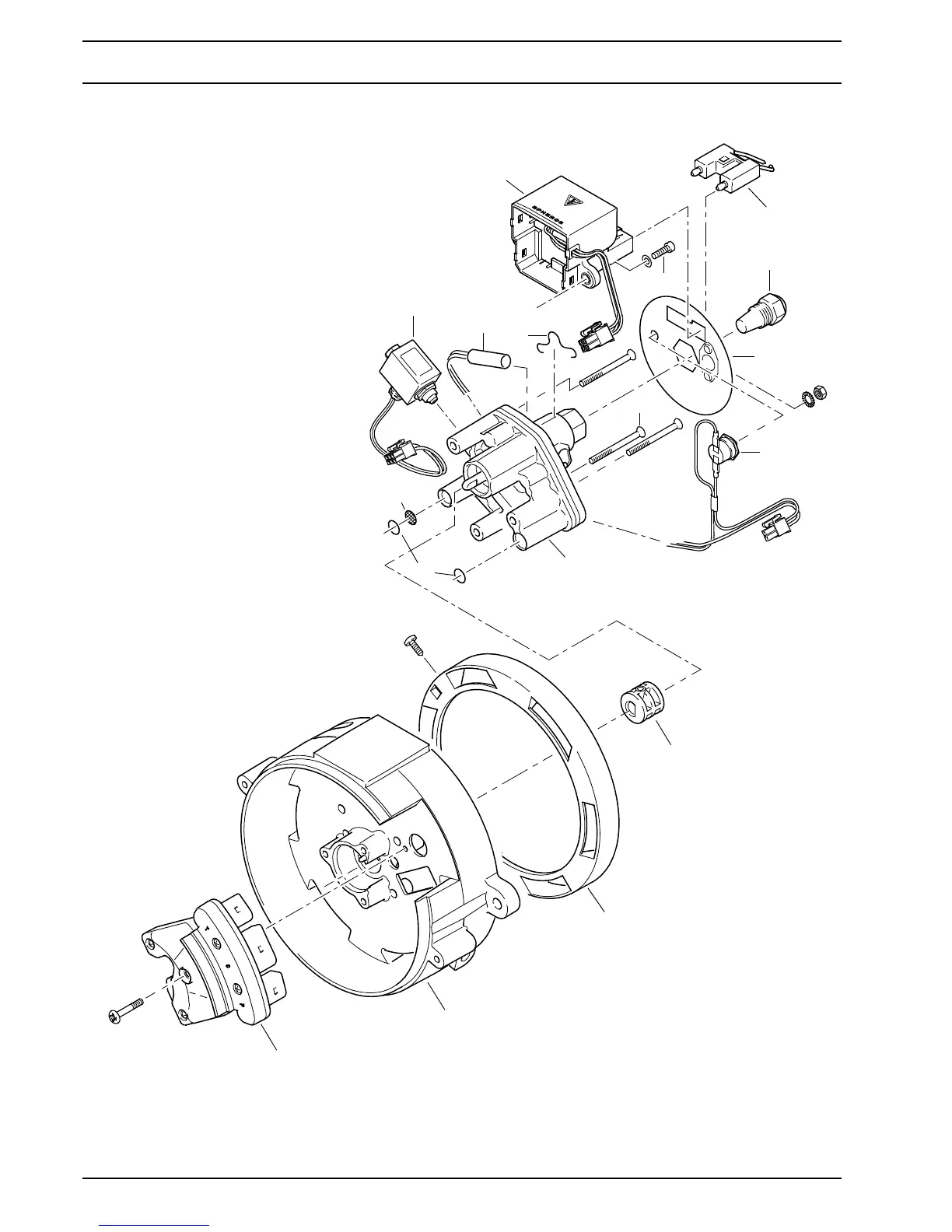

Fig. 805 Components removal and installation
1 Electronic ignition unit
2Screw (2)
3 Ignition electrode
4 Atomizer nozzle
5 Disc
6 Solenoid valve
7 Heating element of the nozzle block
preheater (optional)
8 Thermostat of the nozzle block
preheater (optional)
9 Clamp
10 Fuel pump
11 O-rings (2)
12 Screen
13 Screws (3)
14 Burner housing
15 Control unit
16 Adjustment ring
17 Coupling
1
2
3
4
5
7
6
8
9
10
11
12
13
14
15
16
17
