2.3 Mount
The Spider is supplied with a detachable mounting bracket. To remove the bracket; press
down on the two rear tabs and slide the Spider forward. Choose one of the mounting
options below.

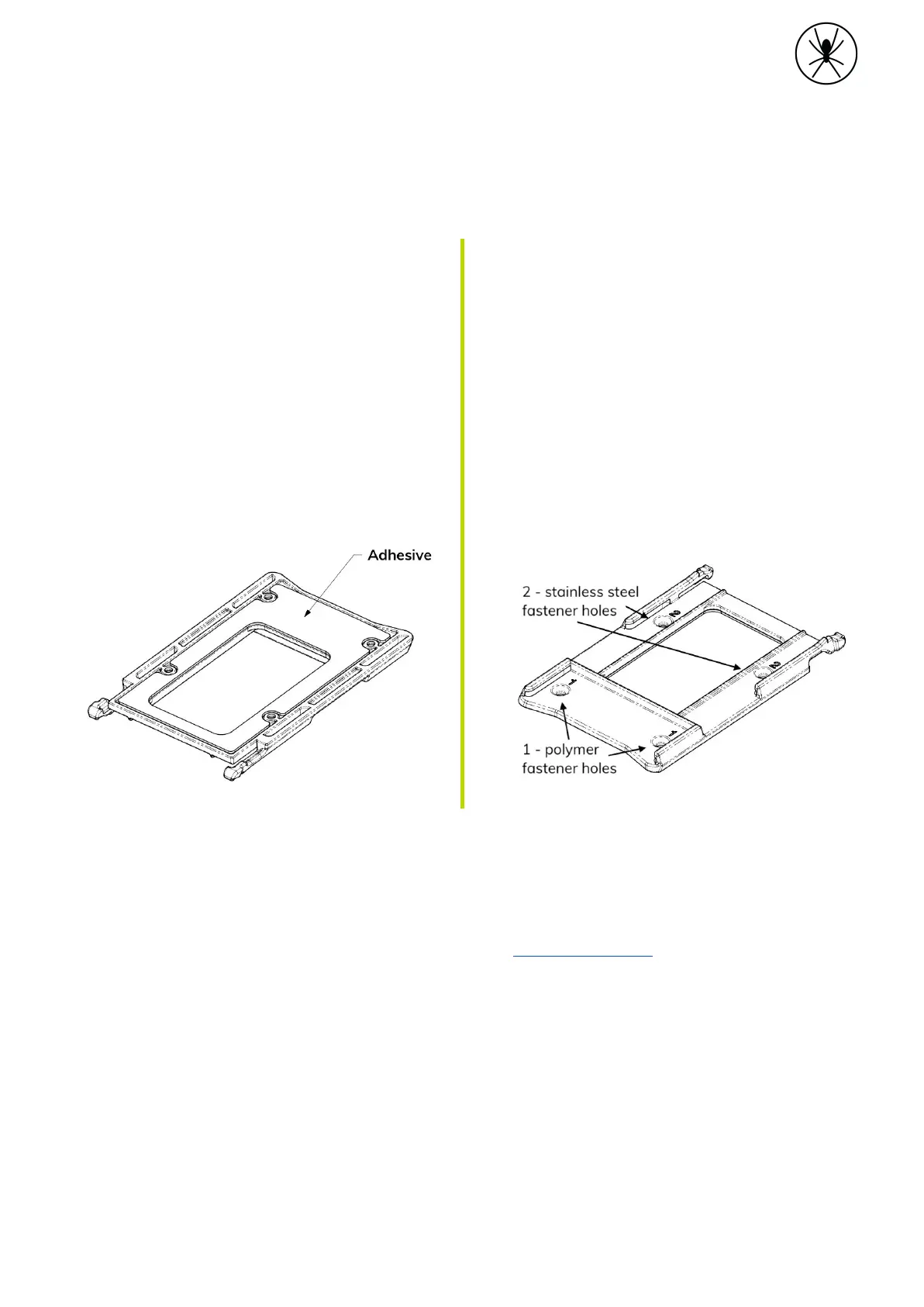

Adhesive tape
A. The adhesive tape can only be
applied once.
B. The surface under the bracket must
be flat, dry and free of dust or oil.
C. Remove the adhesive backing, place
the bracket firmly in place, ensuring
all sides have made firm contact
with the surface.
D. Final strength is achieved after 72
hours at 20 °C (68ºF).
Fasteners
A. The Spider is supplied with four M4
fasteners and nuts, 2 x polymer and
2 x stainless steel.
B. The fasteners from the bag label #1
must be used in the two holes
marked 1 on the bracket. Failure to
do so could impact performance.
C. The fasteners from the bag label #2
must be used in the two holes
marked 2 on the bracket.
2.4 Power
The 2m (6’ 6¾”) power lead connects the Spider to a cigarette power outlet. Insert the
mating cable connector into the Spider power input and screw finger tight.
For more details on the power requirements refer to 5. Specifications.
9
