For the preparation and the use of the station please see the photos at Chap. 4.

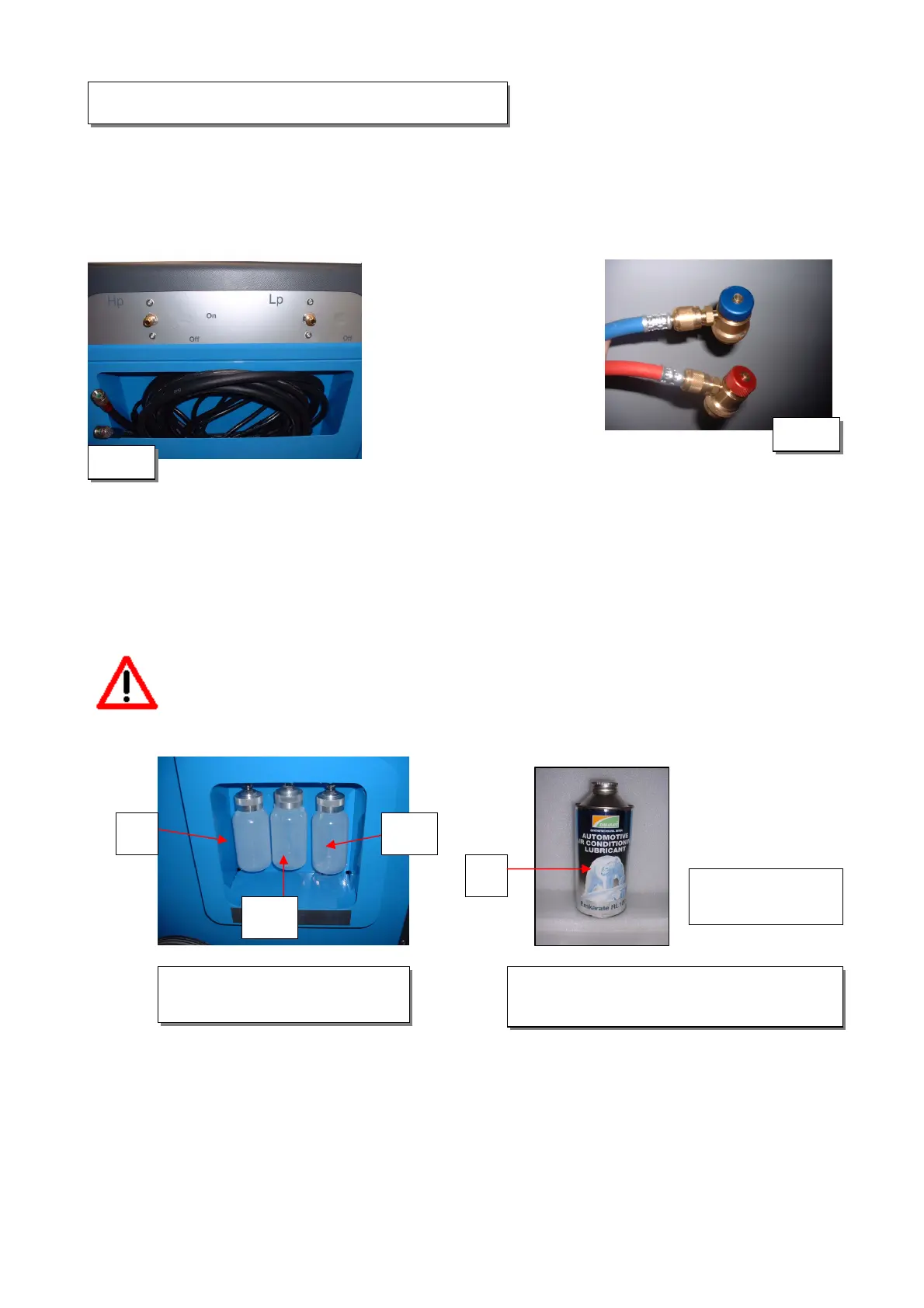

1 - Connect the the high- and low pressure couplings (with ¼ SAE thread) to the hoses– fig.4.
2 - Screw the quick couplings onto the tubes (blue = low pressure – red = high pressure) – fig.5.
3 - Insert the plug into the socket and turn on the general switch (M) in order to switch-on the station.
4 - Read on the display the amount of cooling liquid that is available inside the internal bottle.
5 - Fill in the fresh oil container (H) with the appropriate synthetic oil for cooling (TYPE RL 100 - optional)
and the tracer container (Hb) with oil and tracer (fig. 6).
WARNINGS
THE HEATING OF THE BOTTLE IS AUTOMATIC
CHAP. 5 - PREPARATION OF THE STATION
Fig. 4
S
Synthetic oil
Fig. 6 – Oil bottles: old oil (G),
new oil (Ha), tracer (Hb)
Fig. 7 - Synthetic oil for cooling R134- ART.
21CR (optional)
Fig.
5
Ha
Hb
G
