Spirax Sarco APT14 - Dimensions and Weights

IM-P612-04 ST Issue 12
13
2.5 Dimensions / weights
Metric (approximate) in mm and kg
Model
A B C D E F G H I J Weight
PN16 ANSI
APT14
Screwed 350 198 246 385 304 258 57 250 - - 198 45
Flanged 389 198 246 385 304 258 57 250 - - 198 45
APT14HC Flanged 476 198 270 400 335 261 57 275 31.5 45 198 65
APT14SHC Flanged 508 206 278 407 351 261 57 275 31.5 45 206 105
Imperial (approximate) in inches and lbs
APT14
Screwed 13.78 7. 8 9.69 15.16 11.97 10.16 2.24 9.84 - - 7.8 0 99.26
Flanged 15.31 7.8 9.69 15.16 11.97 10.16 2.24 9.84 - - 7.8 0 99.26
APT14HC Flanged 18.74 7.8 10.63 15.75 13.19 10.27 2.24 10.83 1.24 1.77 7. 8 0 143.33
APT14SHC Flanged 99.9 8.1 10.94 16.62 13.82 10.27 2.24 10.83 1.24 1.77 8.11 231.53
Motive
steam
supply
B
D
F
E
H
I
Exhaust
C
J

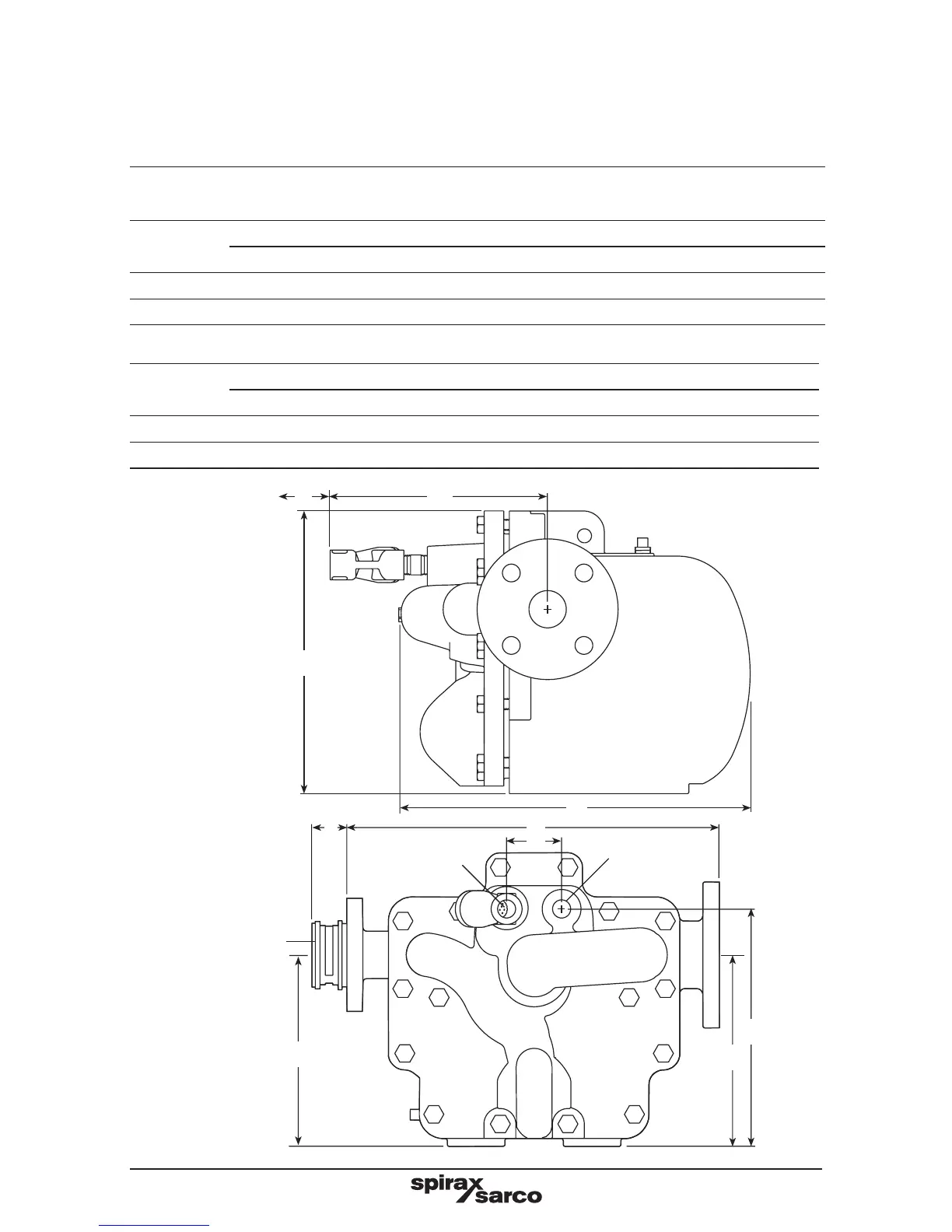

Fig. 2
A
G
Note:
Installation of
a DN40 outlet
check valve
type DCV10
is required
for the
APT14HC and
APT14SHC
only
S E
Withdrawal
distance
