21
Motive IN
Strainer fitted with 100 mesh screen.
Note: The APT's are all supplied with a strainer close coupled
to the steam inlet connection.
† Minimum installation head
0.2 m (8") from base of pump.
Recommend minimum 0.3 m,
maximum 1 m.
Condensate
outlet
Spirax Sarco sized length
of pipe to act as a reservoir
Balance
line
Exhaust
OUT
Condensate
inlet
Strainer
Outlet DCV10 between flanges (APT14HC and
APT14SHC only)
An air vent must be fitted higher than the inlet to the process.
†

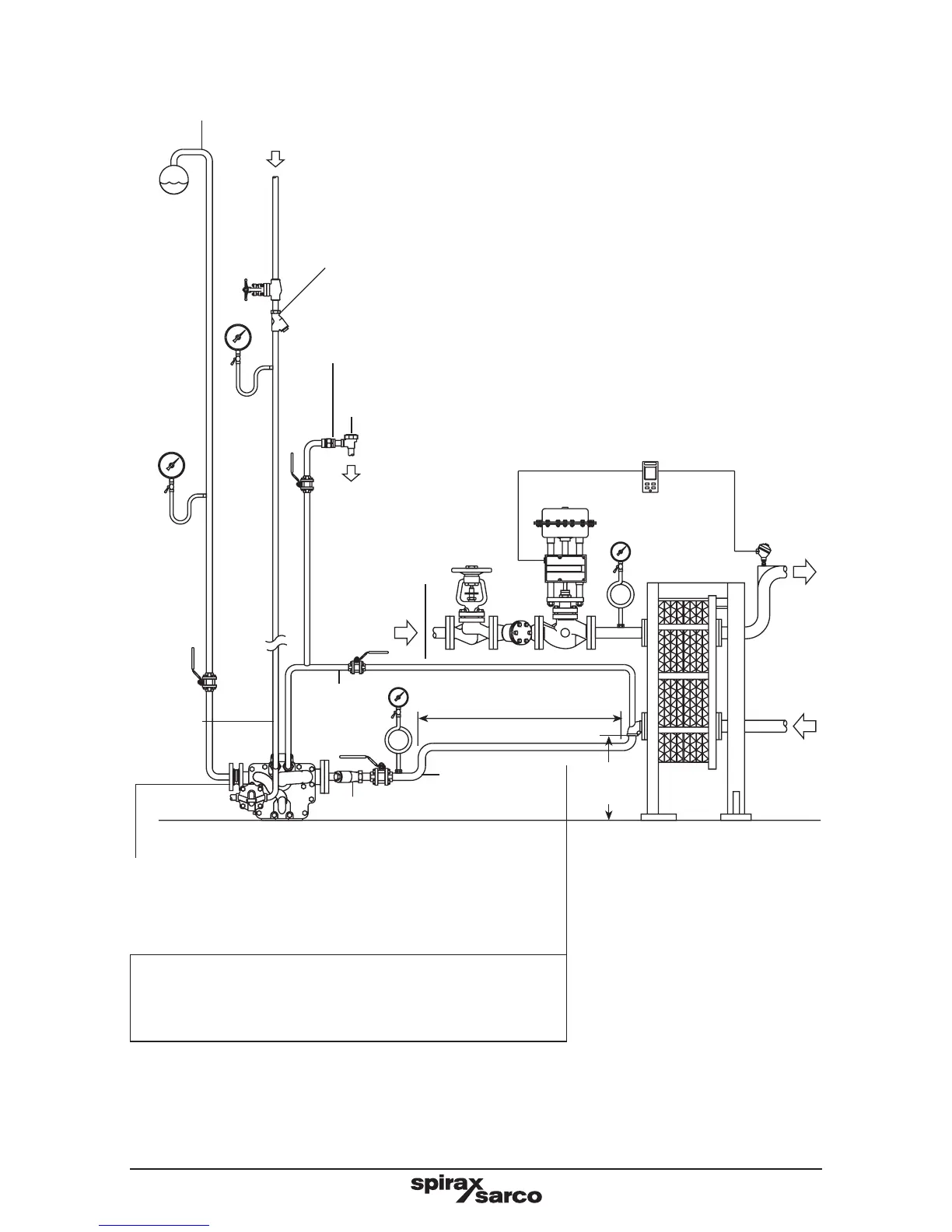

Fig. 11
*Trapped motive steam supply
Soft sealing flanged or screwed DCV
0.2 m
(8")
It is recommended that the reservoir be installed at
least 1 pipe diameter below the process outlet, but
as high as possible above the APT14, APT14HC or
APT14SHC inlet (up to 1 metre (40")).
