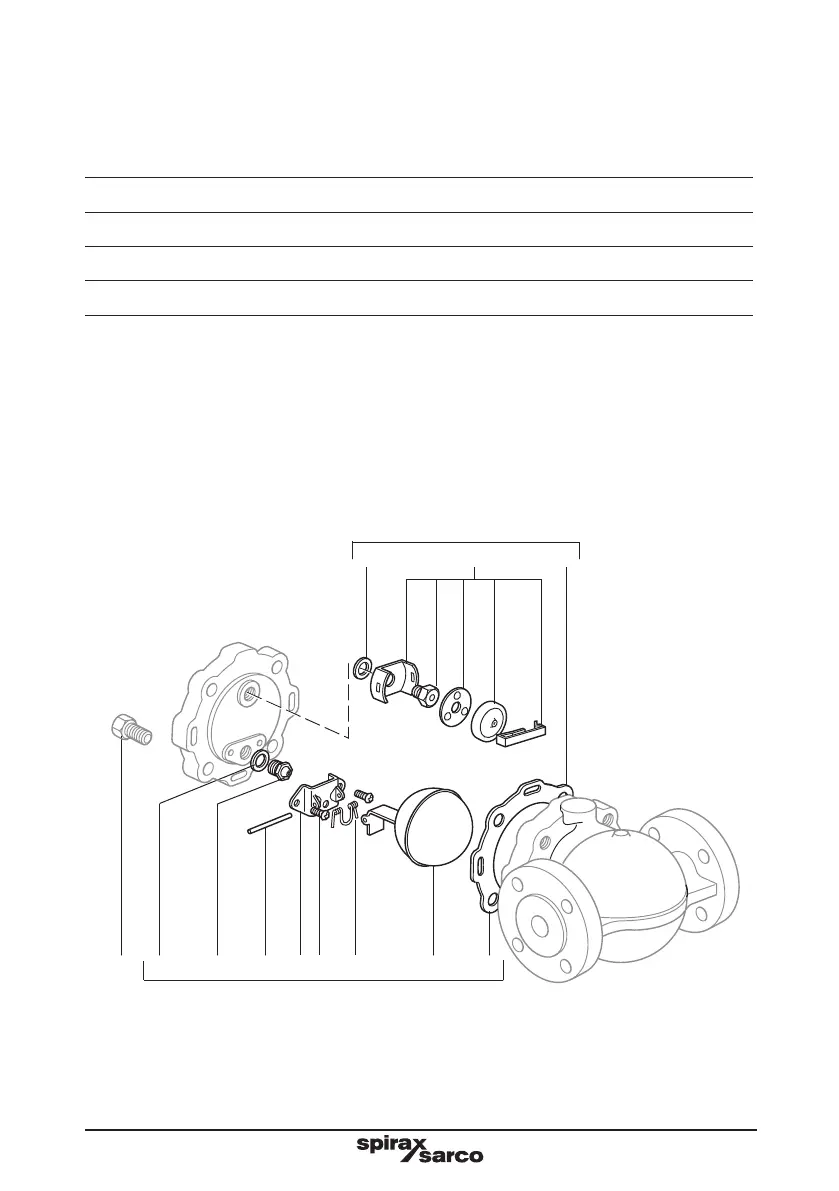

Main valve assembly
Note: Item 28 is required for the DN25 (1") size only
17 3
Air vent
assembly
2 6
5
11 10
7
8 3
The spare parts available are shown in solid outline. Parts drawn in a grey line are not
supplied as spares.
Available spares
Main valve assembly with float 3, 5, 6, 7 (2 off), 8, 10, 11, 16 (1" only)
Air vent assembly 3, 17, 18
Cover gasket (packet of 3) 3
Maintenance kit 3, 5, 6, 7 (2 off), 8, 10, 11, 17, 18, 28 (1" only)
How to order spares
Always order spares by using the description given in the column headed 'Available spares'
and state the size and type of trap.
Example: 1 - Air vent assembly for a Spirax Sarco DN20 FT14-10 (R - L) ball float steam trap.
7. Spare parts
Fig. 4
