Spirax Sarco FT14 - Pressure;Temperature Limits

IM-IBR16-03 Issue 126


        

    









Pressure bar g
Temperature °F
Steam
saturation
curve

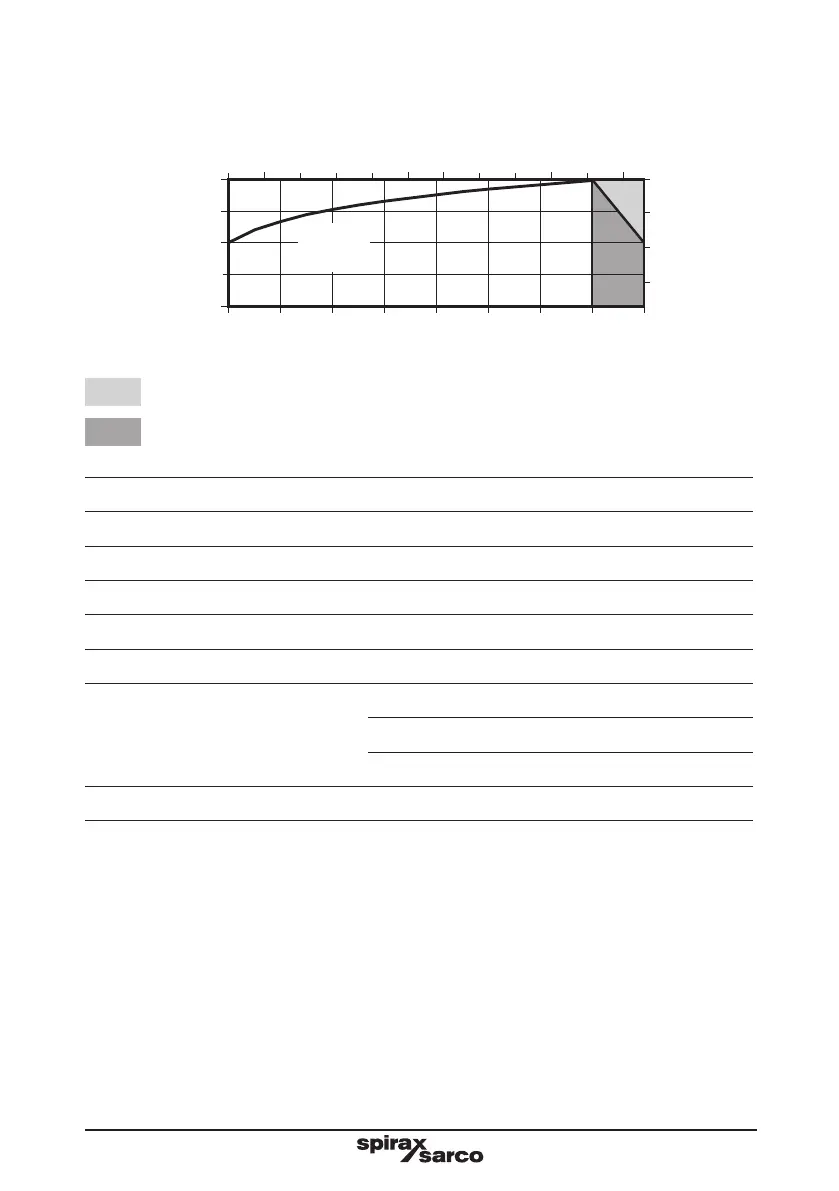

2.3 Pressure /temperature limits (ISO 6552)
The product must not be used in this region.
For optimum performance the PMO should not exceed 14 bar g
Body design conditions PN16
TMA Maximum allowable temperature 200 °C (392 °F)
Minimum allowable temperature -10 °C (14 °F)
PMO Maximum operating pressure for saturated steam service 14 bar g (203 psi g)
TMO Maximum operating temperature 200 °C (392 °F)
Minimum operating temperature 0 °C (32 °F)
PMX
Maximum differential pressure
FT14-4.5 4.5 bar (65.25 psi)
FT14-10 10 bar (145 psi)
FT14-14 14 bar (203 psi)
Designed for a maximum cold hydraulic test pressure of: 21 bar g (305 psi g)
Temperature °C
Pressure psi g
