FT43, FT44, FT46 and FT47 Ball Float Steam Traps
Pressure bar g
Temperature °C
D
A
The product must not be used in this region.
This product should not be used in this region as damage to the internals may occur.
A - B Flanged EN 1092 PN40 and ASME 300.
A - C Flanged JIS/KS 20.
A - D Flanged ASME 150.
Body design conditions PN40
PMA Maximum allowable pressure 40 bar g @ 100 °C (580 psi g @ 212 °F)
TMA Maximum allowable temperature 300 °C @ 27.5 bar g (572 °F @ 399 psi g)
Minimum allowable temperature -10 °C (14 °F)
PMO
Maximum operating pressure for
saturated steam service
32 bar g @ 239 °C (464 psi g @ 462 °F)
Note: The DN40 and DN50 traps are limited to a PMO equal to DPMX
TMO Maximum operating temperature 285 °C @ 28.5 bar g (545 °F @ 413 psi g)
Minimum operating temperature 0 °C (32 °F)
Note: For lower operating temperatures consult Spirax Sarco
DPMX
Maximum
differential
pressure
Size DN15, DN20, DN25 DN40, DN50
FT44- 4.5 4.5 bar 4.5 bar (65 psi)
FT44-10 10 bar 10 bar (145 psi)
FT44-14 14 bar - (203 psi)
FT44-21 21 bar 21 bar (304 psi)
FT44-32 32 bar 32 bar (464 psi)
Designed for a maximum cold hydraulic test pressure: 60 bar g (870 psi g)
Note: With internals fitted, test pressure must not exceed DPMX
Caution: The trap in its complete operational form must not be subjected to a pressure greater than
48 bar otherwise damage to the internal mechanism may result.
C B
Pressure psi g
Temperature °F

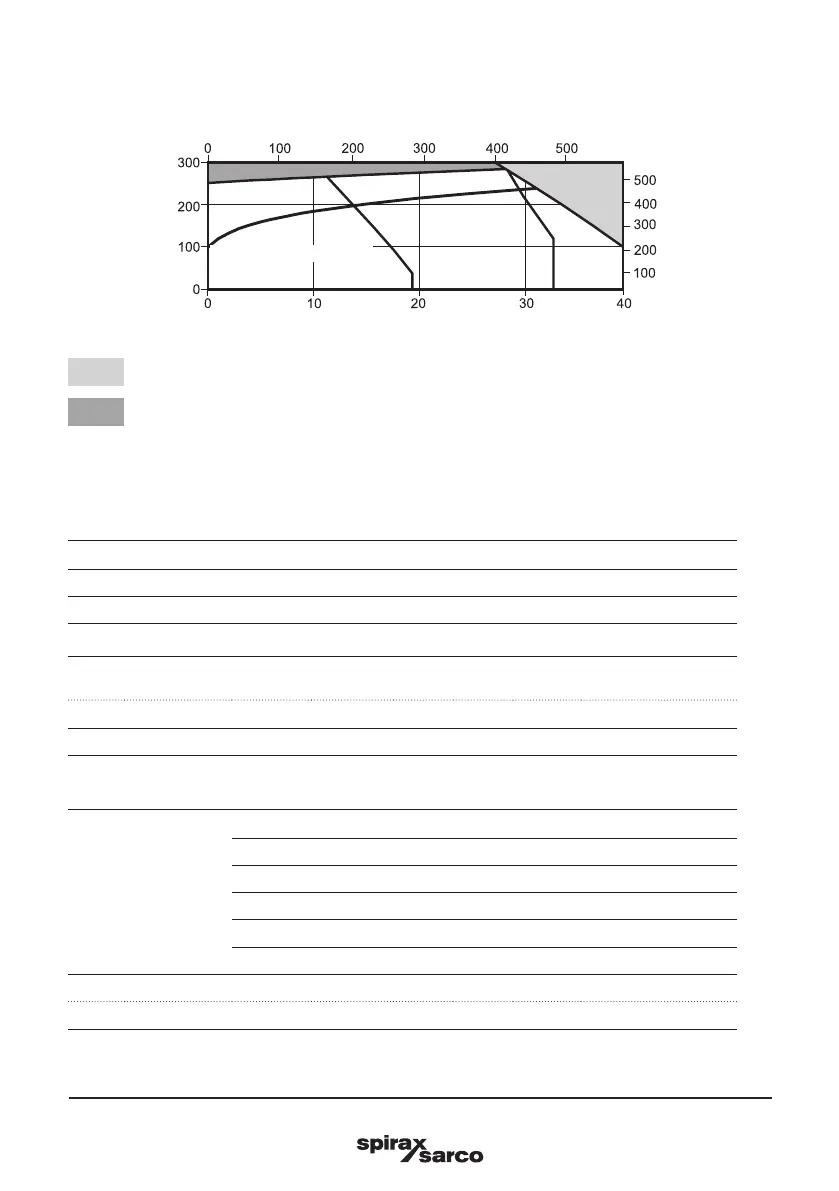

Pressure/temperature limits
Steam saturation curve
