IM-S02-30 CMGT Issue 14
14
FT43, FT44, FT46 and FT47 Ball Float Steam Traps
Sizing and pipe connections
DN15, DN20, DN25, DN40 and DN50.
Note: Flow direction, for horizontal orientated traps, when facing the body is as follows:
- DN15 to DN25 is left to right.
- DN40 and DN50 is right to left.
For vertically orientated traps the flow is downwards only.
Standard flanges are EN 1092 PN40 and PN25 with face-to-face dimensions in accordance with EN 26554
(Series 1).
On request - ASME B 16.5 Class 150 flanges are also available with face-to-face dimensions in accordance
with EN 26554 (Series 1).
Note: ASME flanges are supplied with tapped (UNC) holes for flanged bolts.
2.5 FT47 - SG iron

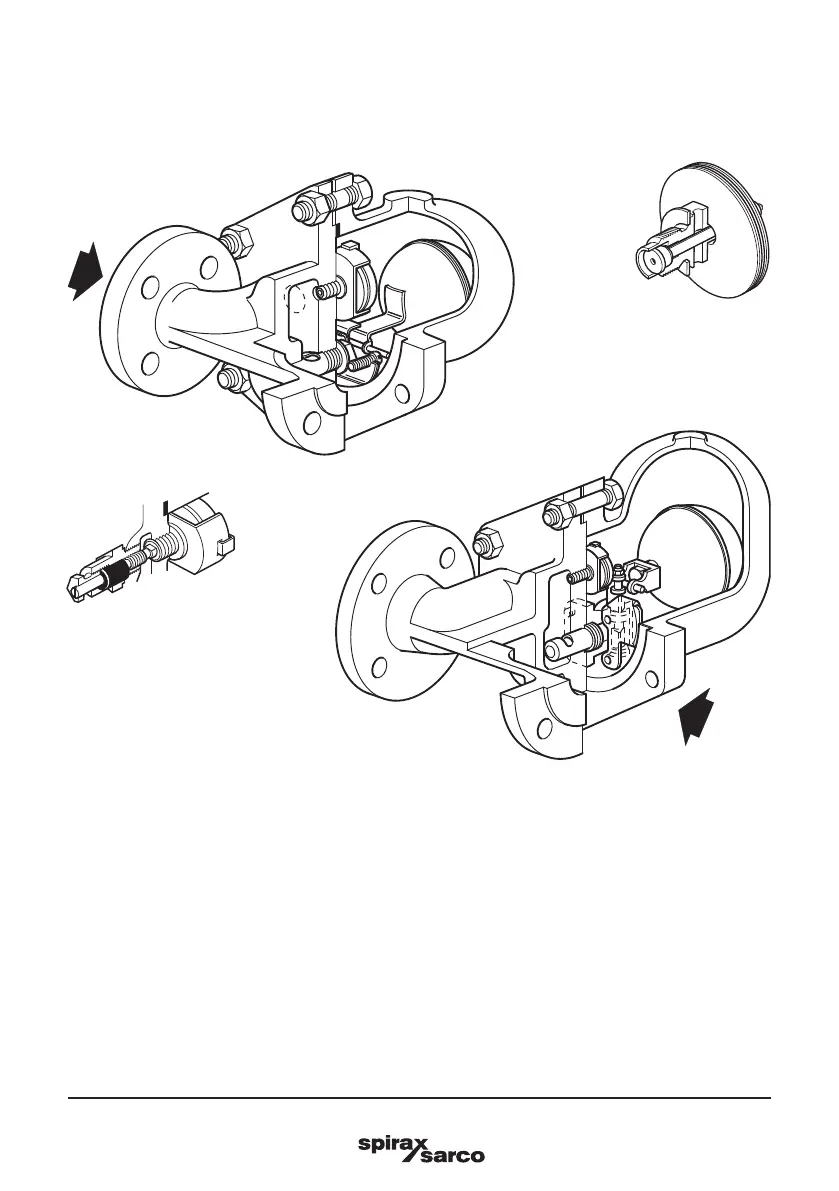

Fig. 4
FT47 DN40 and DN50
DN50 shown
FT47 DN15, DN20 and DN25
DN15 shown
FT47- C
FT47
32 bar
