3.2 Technical data
Designed for use with saturated steam.
Material of construction: Carbon steel
Paint finish Temperature resistant silver paint
Maximum design pressure 14 bar g (203 psi g)
Maximum design temperature 198 °C (390 °F)
Minimum design (operating)
temperature
-10 °C (14 °F)
Designed for a maximum cold
hydraulic test pressure
In accordance with the Pressure Equipment
Directive (PED).
Note : Maximum design Pressure and temperature can be further limited, lower than that
stated on the nameplate depending on the chosen ange rating of the system.
PN16 13.3 bar g @ 198 °C (192.9 psi g @ 390 °F)
Class A150 13.8 bar g @ 198 °C (200.1 psi g @ 390 °F)
Note: These vessels will withstand full vacuum conditions.

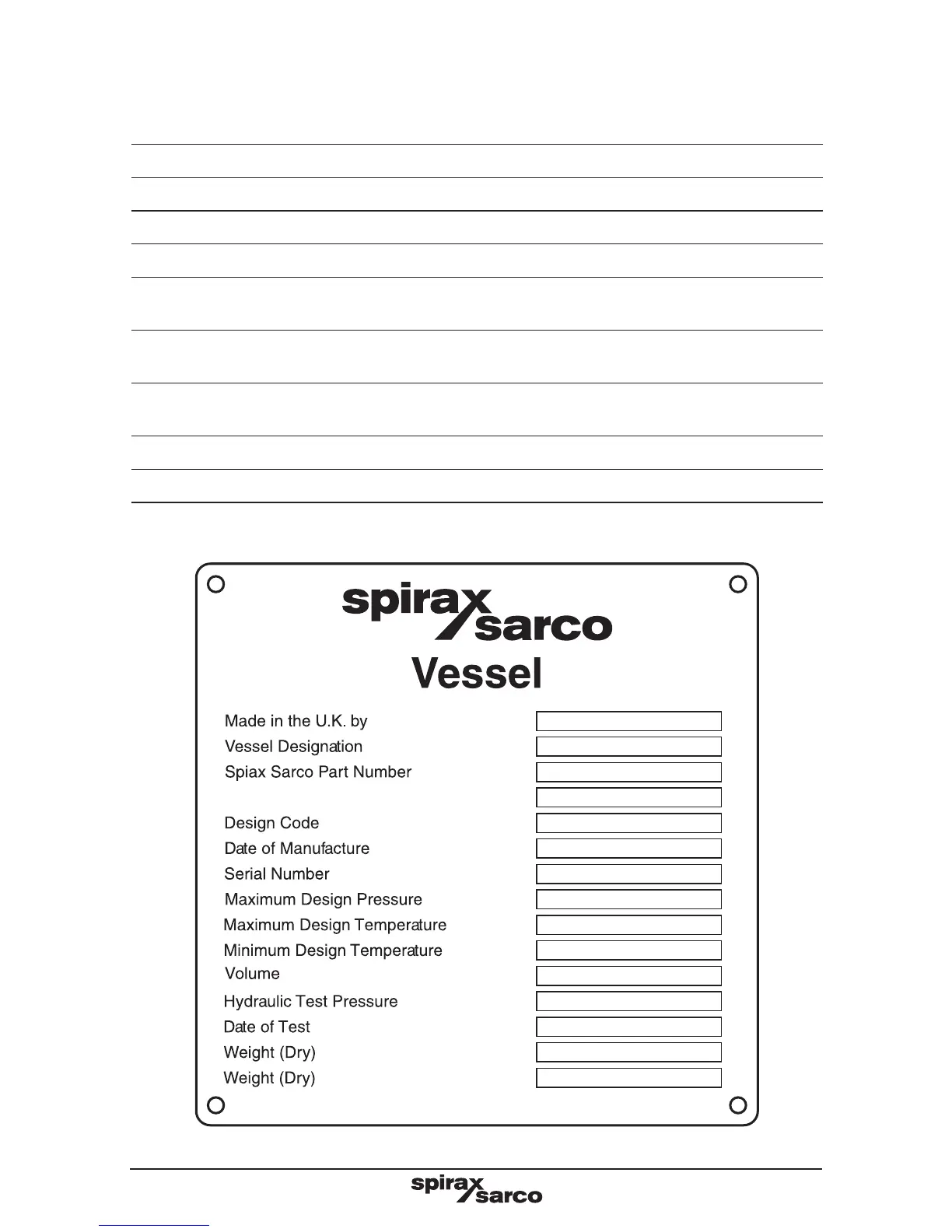

Fig. 2 Typical FV type flash vessel name-plate details
Conforms to Ped 2014/68/EU Category
