Manual control of the Pressure
The supplied pressure transmitter has a working range dened by the specications of each
generator. Normal ranges are 0 - 3, or 0 – 10 bar. It is important that the working range of the transmitter
matches that programmed in the control unit.
For manual control of the pressure valve proceed with the following steps:
Turn the “cycle” selector into position (Manual control) and select Screen 10 (Pressure control).
If the selector is turned in position (Automatic control) an alarm status is obtained as displayed on Screen
11. In these situations switch the selector in position “0” to reach the condition displayed on Screen 3.

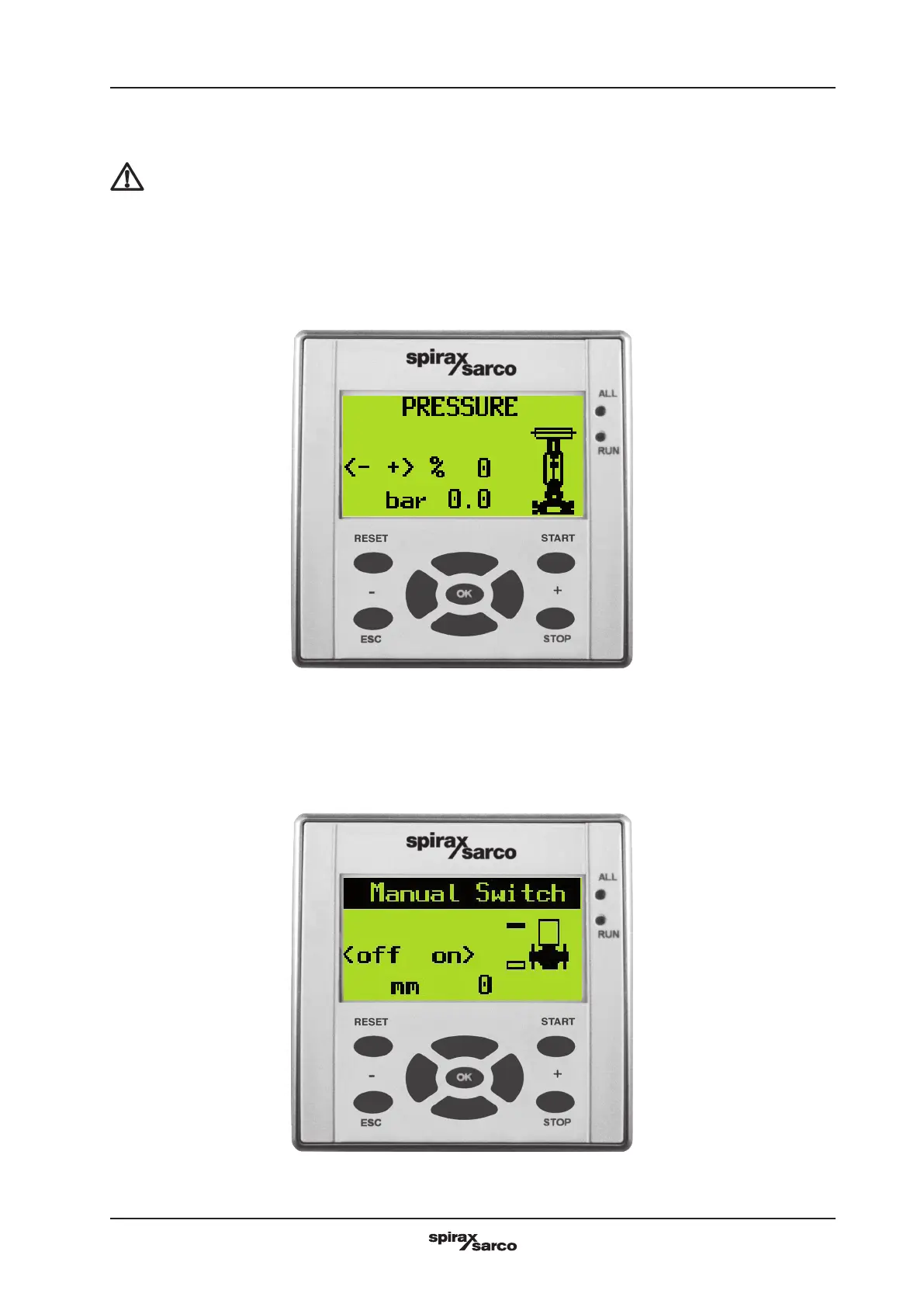

Screen 10
Screen 11
