IM-P184-09 CMGT Issue 4
16
start of text under grey section header box
start of text continuing from previous page
TRANSLATION RUN OVER

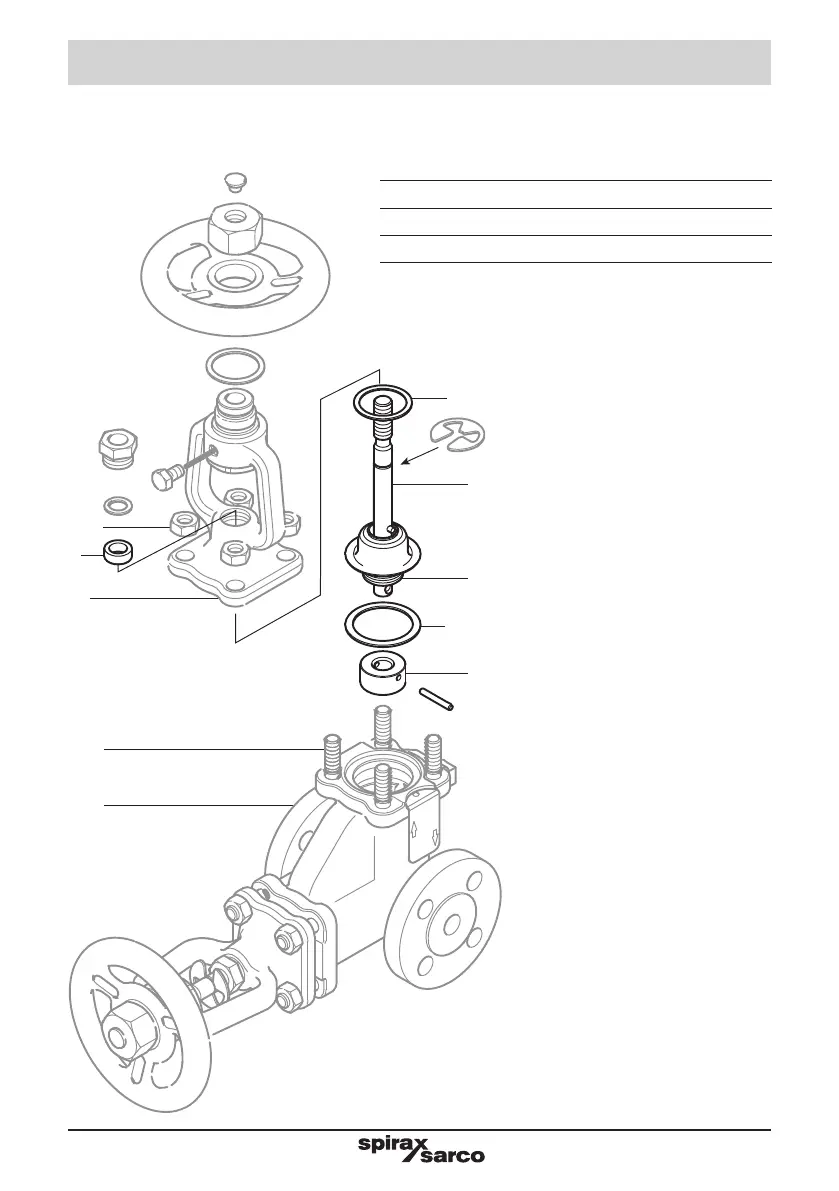

Fig. 6
4
11b
5
11a
6
8
*
10
*
2
*
9
*
1
*
Note:
Items 1, 2, 9 and 10 are not
available spares.
The spare parts available are shown in solid outline. Parts drawn in a grey line are not supplied as spares.
Available spares
Body/bonnet gasket and stem packing 8 (2 off), 11a, 11b
Stem and bellows assembly 6, 5
Disc 4
Note: The gasket contains sharp metal reinforcement, please
handle with care. For a complete overhaul of the valve 2 x
each spare is required.
7. Spare parts
How to order spares
Please note: for customer convenience
spares are supplied in kits to ensure
all the appropriate replacement parts
are supplied to carry out a specific
maintenance task e.g. when a stem
and bellows assembly is ordered,
parts (8, 11a and 11b) and (6 and 5)
will be included in the kit. Always order
spares by using the description given
above and state the size and type of
stop valve.
Example: 1 - Body/bonnet gasket
and stem packing for a DN15 Spirax
SafeBloc
TM
DBB3 double block and
bleed bellows sealed stop valve having
PN40 connections.
