Body design conditions PN40
PMA Maximum allowable pressure 40 bar g @ 0 °C (580 psi g @ 32 °F)
TMA Maximum allowable temperature 400 °C @ 24 bar g (752 °F @ 348 psi g)
Minimum allowable temperature -10 °C (14 °F)
PMO Maximum operating pressure for saturated steam service 30.4 bar g 441 (523 °F)
TMO Maximum operating temperature 400 °C @ 24 bar g (752 °F @ 348 psi g)
Minimum operating temperature
(Note: For lower operating temperatures consult Spirax Sarco)
-10 °C (14 °F)
Designed for a maximum cold hydraulic test pressure of: 60 bar g (870 psi g)
Body design conditions ANSI 300
PMA Maximum allowable pressure 51 bar g @ 37.7 °C (739 psi g @ 100 °F)
TMA Maximum allowable temperature 425 °C @ 28 bar g (797 °F @ 406 psi g)
Minimum allowable temperature -29 °C (-20 °F)
PMO Maximum operating pressure for saturated steam service 41.6 bar g (603 psi g)
TMO Maximum operating temperature 425 °C @ 28 bar g (797 °F @ 406 psi g)
Minimum operating temperature
(Note: For lower operating temperatures consult Spirax Sarco)
-29 °C (-20 °F)
Designed for a maximum cold hydraulic test pressure of: 77 bar g (1 117 psi g)

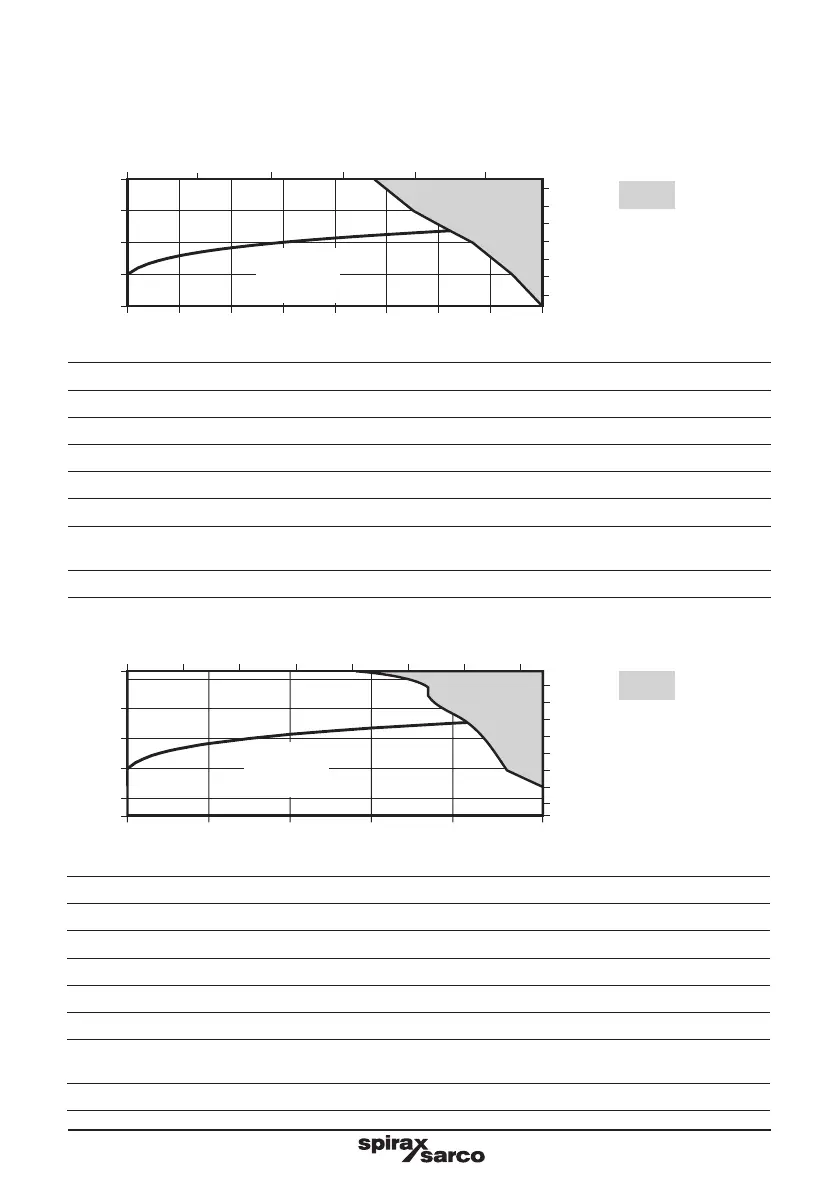

2.3 Pressure/temperature limits (ISO 6552)
