4

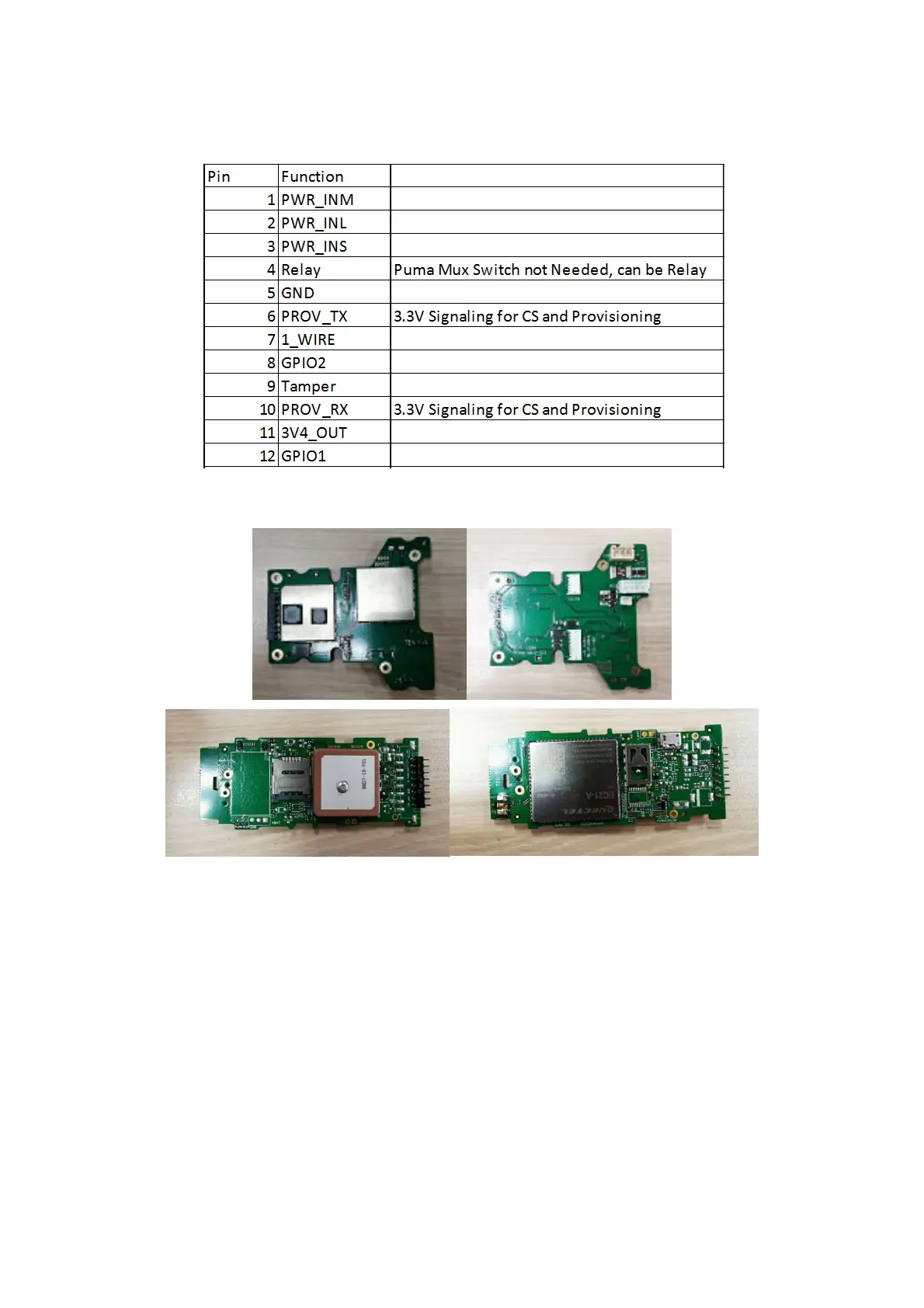

1) TheFLEX2-LPCB devices. For PCB equipment, the PCB of this equipment is divided into two, one is
the daughter board of FLEX2-L, and the other is the mother board. As shown below.
2) Complete equipment of Flex2-L. For the complete equipment, as shown below. After installation, the
device sometimes connects the harness, and some will not connect the harness.
4 Description
1) Connect the UART cable to the UART interface of MCU on the device, the other side connect to PC,
you can communication to MCU with UART cable. Just like this.
